TM03 0482 5204

MAGNA1

DN 80

Threaded 6 bar Rp 3 96405735

For welding 6 bar

80 mm,

nominal

569911

Threaded 10 bar Rp 3 569812

For welding 10 bar

80 mm,

nominal

569811

TM03 0485 5204

MAGNA1

DN 100

Threaded 6 bar Rp 4 96405737

Threaded 10 bar Rp 4 96405738

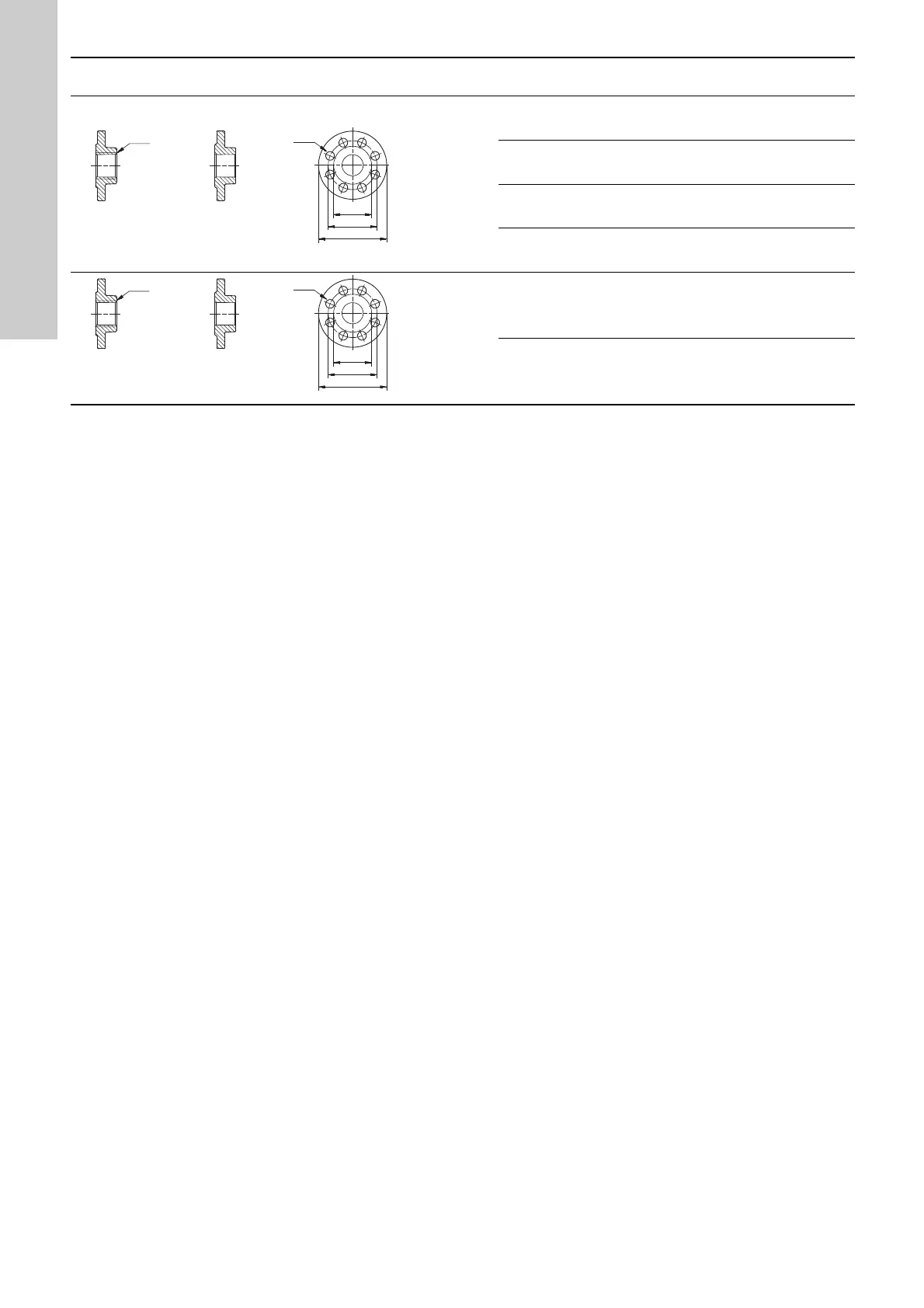

Counter flange Pump type Description

Rated pressure

(EN 1092-2)

Pipework

connection

Product

number

ø19

ø200

ø160

ø138

Rp 3

Threaded For welding

ø19

ø220

ø180

ø158

Rp 4

Threaded For welding
