Grundfos MAGNA1 User Manual

Appendix
22
2. Dimensions

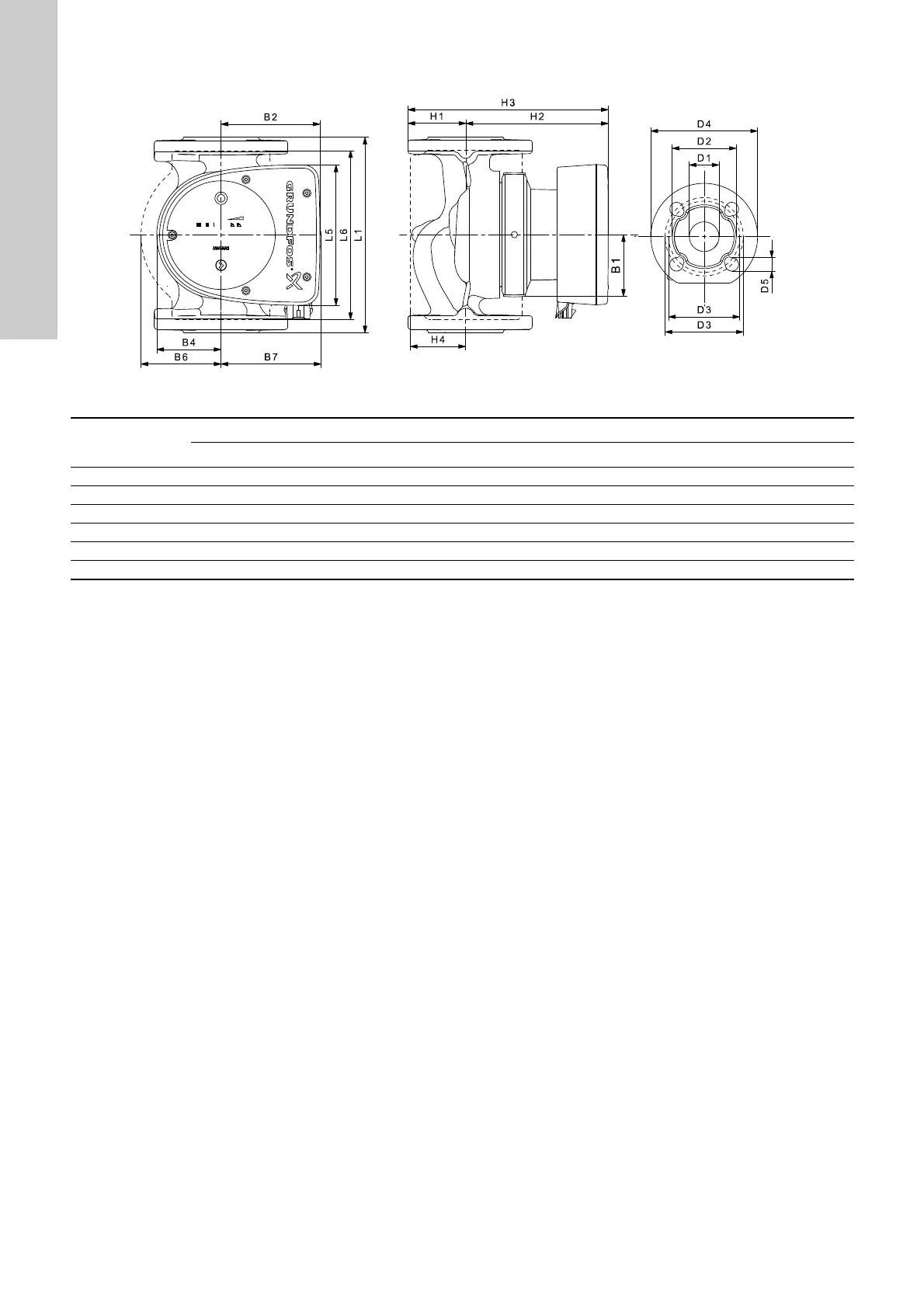

Fig. 3 Single-head pump dimensions, plug-connected versions, flanged version
TM05 5200 3412
Pump type
Dimensions [mm]
L1 L5 L6 B1 B2 B4 B6 B7 H1 H2 H3 H4 D1 D2 D3 D4 D5
MAGNA1 32-40 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 32-60 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 32-80 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 32-100 F (N) 220 158 220 58 111 69 100 110 65 142 207 82 32 76 90/100 140 14/19
MAGNA1 40-40 F (N) 220 158 220 58 111 69 105 105 65 156 221 83 40 84 100/110 150 14/19
MAGNA1 40-60 F (N) 220 158 220 58 111 69 105 105 65 156 221 83 40 84 100/110 150 14/19

Grundfos MAGNA1 Specifications

General

Pump Type	Circulator Pump
Flow Range	0.5 - 12 m³/h
Maximum Flow	12 m³/h
Maximum Head	10 m
Maximum Liquid Temperature	110°C
Maximum Operating Pressure	10 bar
Power Supply	230 V, 50/60 Hz
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast Iron
Installation Length	180 mm
Series	MAGNA1
Energy Efficiency Class	A
Liquid Temperature Range	2°C to 110°C
Approvals	CE, EAC
Ambient Temperature Range	0 .. 40 °C
