Grundfos MAGNA1 User Manual

Appendix
23

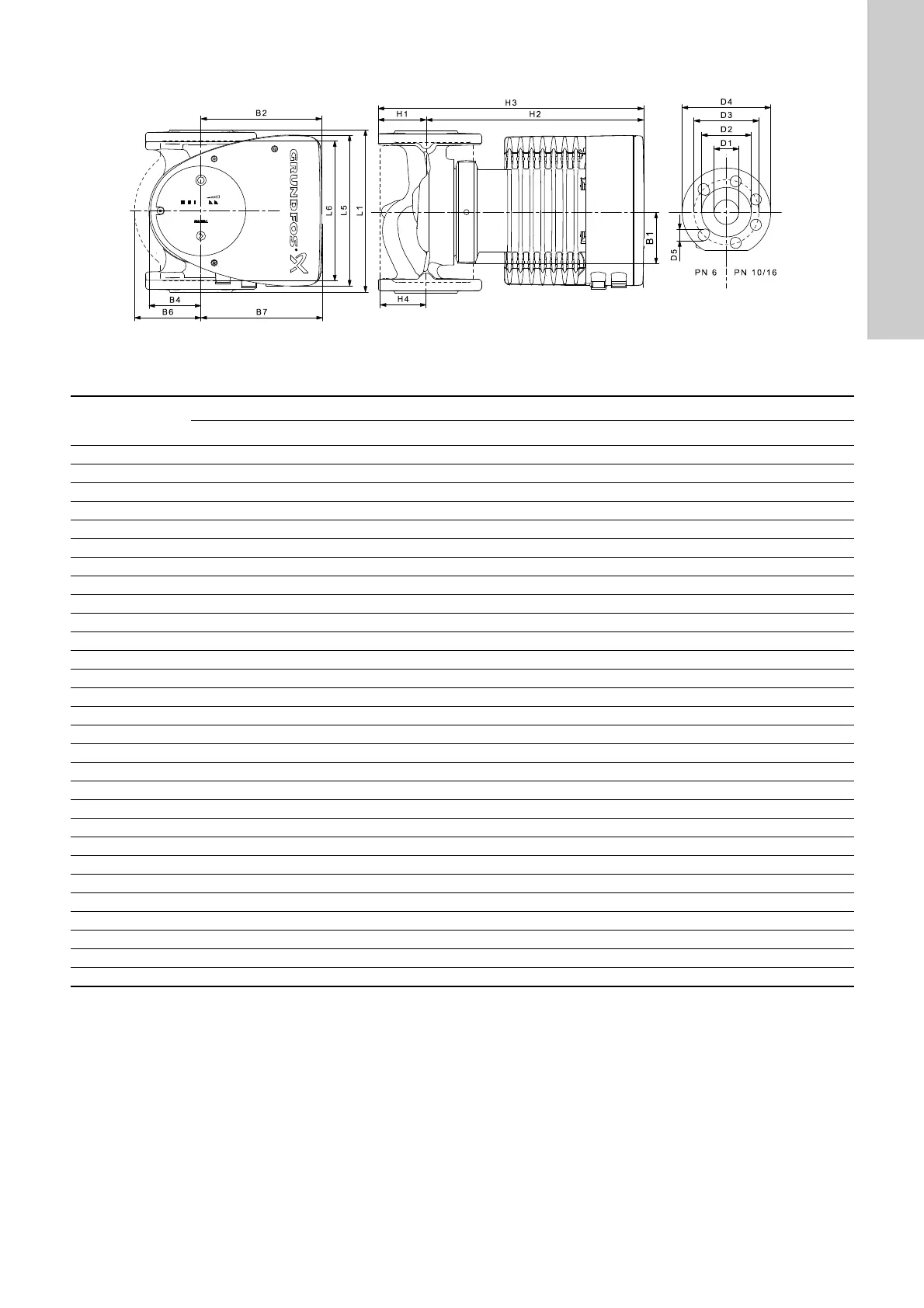

Fig. 4 Single-head pump dimensions, terminal-connected versions, flanged version
TM05 5276 3512
Pump type
Dimensions [mm]
L1 L5 L6 B1 B2 B4 B6 B7 H1 H2 H3 H4 D1 D2 D3 D4 D5
MAGNA1 32-120 F (N) 220 204 216 84 164 73 106 116 65 301 366 86 32 76 90/100 140 14/19
MAGNA1 40-80 F (N) 220 204 220 84 164 73 106 128 65 304 369 83 40 84 100/110 150 14/19
MAGNA1 40-100 F (N) 220 204 220 84 164 73 106 128 65 304 369 83 40 84 100/110 150 14/19
MAGNA1 40-120 F (N) 250 204 220 84 164 73 106 128 65 304 369 83 40 84 100/110 150 14/19
MAGNA1 40-150 F (N) 250 204 220 84 164 73 106 128 65 304 369 83 40 84 100/110 150 14/19
MAGNA1 40-180 F (N) 250 204 220 84 164 73 106 128 65 304 369 83 40 84 100/110 150 14/19
MAGNA1 50-40 F (N) 240 204 240 84 164 73 127 127 71 304 374 97 50 102 110/125 165 14/19
MAGNA1 50-60 F (N) 240 204 240 84 164 73 127 127 71 304 374 97 50 102 110/125 165 14/19
MAGNA1 50-80 F (N) 240 204 240 84 164 73 127 127 71 304 374 97 50 102 110/125 165 14/19
MAGNA1 50-100 F (N) 280 204 240 84 164 73 127 127 72 304 376 97 50 102 110/125 165 14/19
MAGNA1 50-120 F (N) 280 204 240 84 164 73 127 127 72 304 376 97 50 102 110/125 165 14/19
MAGNA1 50-150 F (N) 280 204 240 84 164 73 127 127 72 304 376 97 50 102 110/125 165 14/19
MAGNA1 50-180 F (N) 280 204 240 84 164 73 127 127 72 304 376 97 50 102 110/125 165 14/19
MAGNA1 65-40 F (N) 340 204 296 84 164 73 133 133 74 312 386 94 65 119 130/145 185 14/19
MAGNA1 65-60 F (N) 340 204 296 84 164 73 133 133 74 312 386 94 65 119 130/145 185 14/19
MAGNA1 65-80 F (N) 340 204 296 84 164 73 133 133 74 312 386 94 65 119 130/145 185 14/19
MAGNA1 65-100 F (N) 340 204 296 84 164 73 133 133 74 312 386 94 65 119 130/145 185 14/19
MAGNA1 65-120 F (N) 340 204 296 84 164 73 133 133 74 312 386 94 65 119 130/145 185 14/19
MAGNA1 65-150 F (N) 340 204 296 84 164 73 133 133 74 312 386 94 65 119 130/145 185 14/19
MAGNA1 80-40 F 360 204 310 84 164 73 163 163 96 318 413 115 80 128 150/160 200 19
MAGNA1 80-60 F 360 204 310 84 164 73 163 163 96 318 413 115 80 128 150/160 200 19
MAGNA1 80-80 F 360 204 310 84 164 73 163 163 96 318 413 115 80 128 150/160 200 19
MAGNA1 80-100 F 360 204 310 84 164 73 163 163 96 318 413 115 80 128 150/160 200 19
MAGNA1 80-120 F 360 204 310 84 164 73 163 163 96 318 413 115 80 128 150/160 200 19
MAGNA1 100-40 F 450 204 396 84 164 73 178 178 103 330 433 120 100 160 170 220 19
MAGNA1 100-60 F 450 204 396 84 164 73 178 178 103 330 433 120 100 160 170 220 19
MAGNA1 100-80 F 450 204 396 84 164 73 178 178 103 330 433 120 100 160 170 220 19
MAGNA1 100-100 F 450 204 396 84 164 73 178 178 103 330 433 120 100 160 170 220 19
MAGNA1 100-120 F 450 204 396 84 164 73 178 178 103 330 433 120 100 160 170 220 19

Grundfos MAGNA1 Specifications

General

Pump Type	Circulator Pump
Flow Range	0.5 - 12 m³/h
Maximum Flow	12 m³/h
Maximum Head	10 m
Maximum Liquid Temperature	110°C
Maximum Operating Pressure	10 bar
Power Supply	230 V, 50/60 Hz
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast Iron
Installation Length	180 mm
Series	MAGNA1
Energy Efficiency Class	A
Liquid Temperature Range	2°C to 110°C
Approvals	CE, EAC
Ambient Temperature Range	0 .. 40 °C
