Grundfos MAGNA1 User Manual

Appendix
24

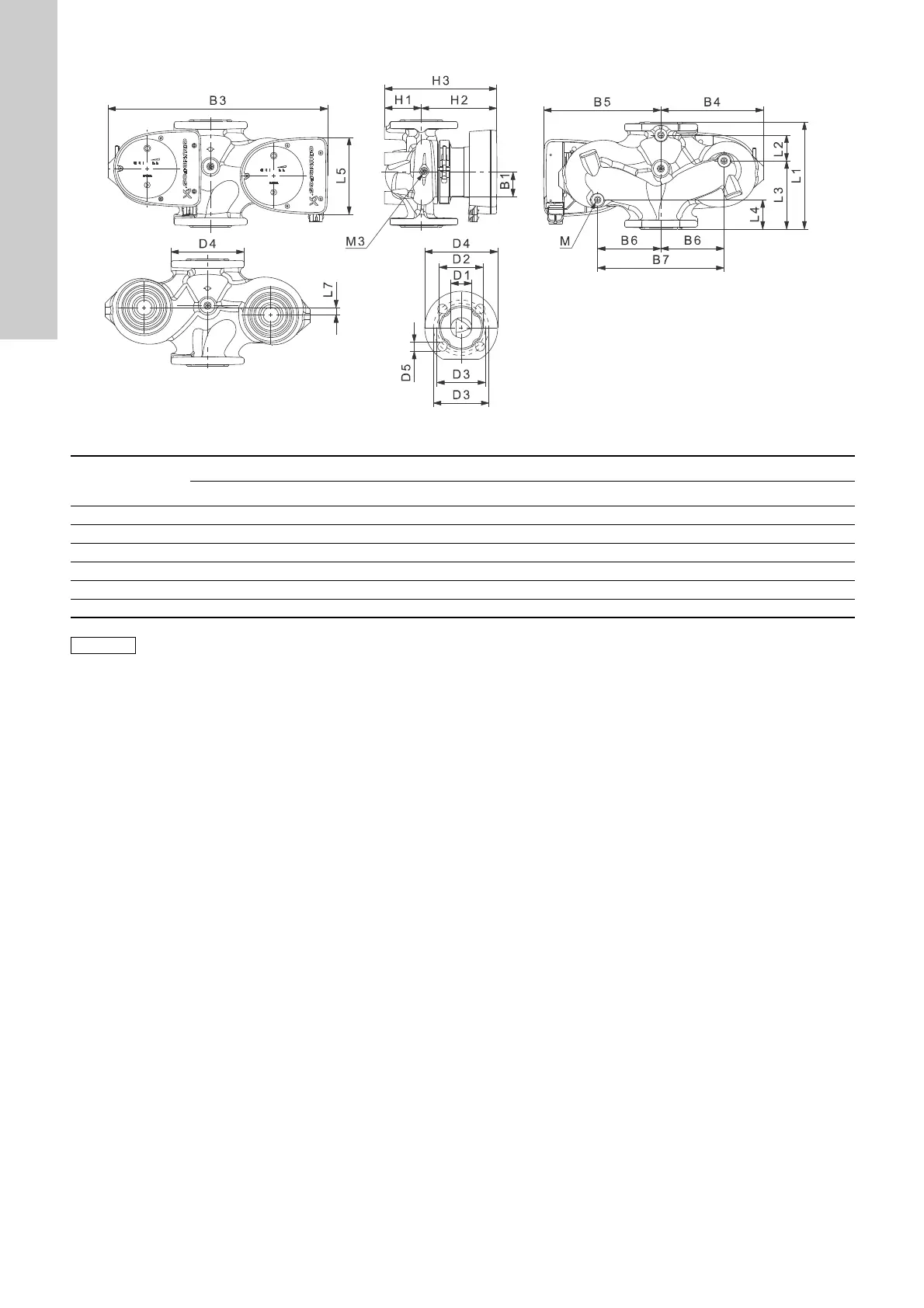

Fig. 5 Twin-head pump dimensions, plug-connected versions, flanged version
TM05 4960 3012
Pump type
Dimensions [mm]
L1 L2 L3 L4 L5 L7 B1 B3 B4 B5 B6 B7 H1 H2 H3 D1 D2 D3 D4 D5 M
MAGNA1 D 32-40 F 220 73 120 85 158 35 58 400 179 221 130 260 69 142 211 32 76 90/100 140 14/19 12
MAGNA1 D 32-60 F 220 73 120 85 158 35 58 400 179 221 130 260 69 142 211 32 76 90/100 140 14/19 12
MAGNA1 D 32-80 F 220 73 120 85 158 35 58 400 179 221 130 260 69 142 211 32 76 90/100 140 14/19 12
MAGNA1 D 40-40 F 220 53 140 60 158 15 58 452 211 241 130 260 76 156 232 40 84 100/110 150 14/19 12
MAGNA1 D 40-60 F 220 53 140 60 158 15 58 452 211 241 130 260 76 156 232 40 84 100/110 150 14/19 12
MAGNA1 D 40-80 F 220 53 140 60 204 15 84 502 210 294 130 260 76 303 379 40 84 100/110 150 14/19 12
Note
M3: Rp 1/4 for air vent available on all twin-head
pumps.

Grundfos MAGNA1 Specifications

General

Pump Type	Circulator Pump
Flow Range	0.5 - 12 m³/h
Maximum Flow	12 m³/h
Maximum Head	10 m
Maximum Liquid Temperature	110°C
Maximum Operating Pressure	10 bar
Power Supply	230 V, 50/60 Hz
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast Iron
Installation Length	180 mm
Series	MAGNA1
Energy Efficiency Class	A
Liquid Temperature Range	2°C to 110°C
Approvals	CE, EAC
Ambient Temperature Range	0 .. 40 °C
