5.6 Analog input for external sensor
The analog input can be used for the connection of an external
sensor for measuring temperature or pressure.
The analog input can also be used for an external signal for the
control from a BMS system or similar control system.
The electrical signal for the input can be 0-10 VDC or 4-20 mA.
The selection of electrical signal (0-10 V or 4-20 mA) can be
changed on the control panel or with Grundfos GO Remote.

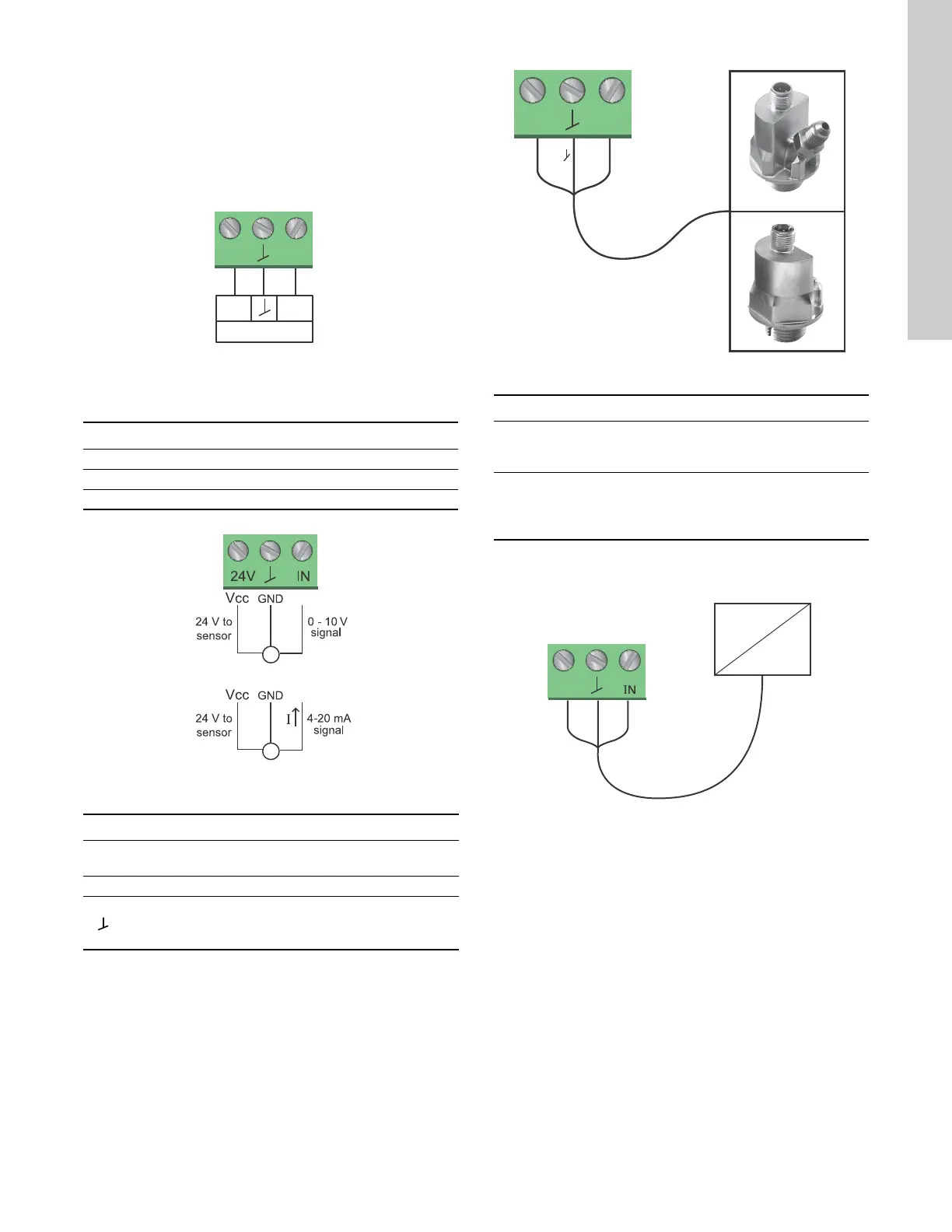

Fig. 19 Analog input for external sensor or control
In order to optimize the pump performance, external sensors can
advantageously be used in the following cases:
Fig. 20 Wiring, analog input
Fig. 21 Examples of external sensors
For further details, visit WebCAPS and reference Magna3 Data
booklet 98439208.
Fig. 22 Example of external signal for the control via BMS or
PLC
TM05 3221 1112
Function/control mode Sensor type
Heat energy meter Temperature sensor
Constant temperature Temperature sensor
Differential pressure Pressure sensor
TM06 0882 1114
PIN Description Load
IN Analog input
150 Ω (4-20 mA signal)
78 kΩ (0-10 V signal)
24 V 24 V supply to external sensor Max. 22 mA
Ground for external sensor
TM05 2947 1212
Pos. Sensor type
1
Differential pressure transmitter,
Grundfos type DPI V.2
1/2" connection and 4-20 mA signal.
2
Relative pressure transmitter,
combined pressure and temperature sensor,
Grundfos type RPI/T G 1/2" connection and 4-20 mA
signal.
TM05 2888 0612
