3.8 Radio communication
The wireless radio in this product is class B.
Intended use
This product incorporates a radio for remote control.
The product can communicate with Grundfos Go Remote and
with other MAGNA3 pumps of the same type via the built-in radio.
Only Grundfos-approved external antennae may be connected to
this product, and only by a Grundfos-approved installer.
3.9 Tools

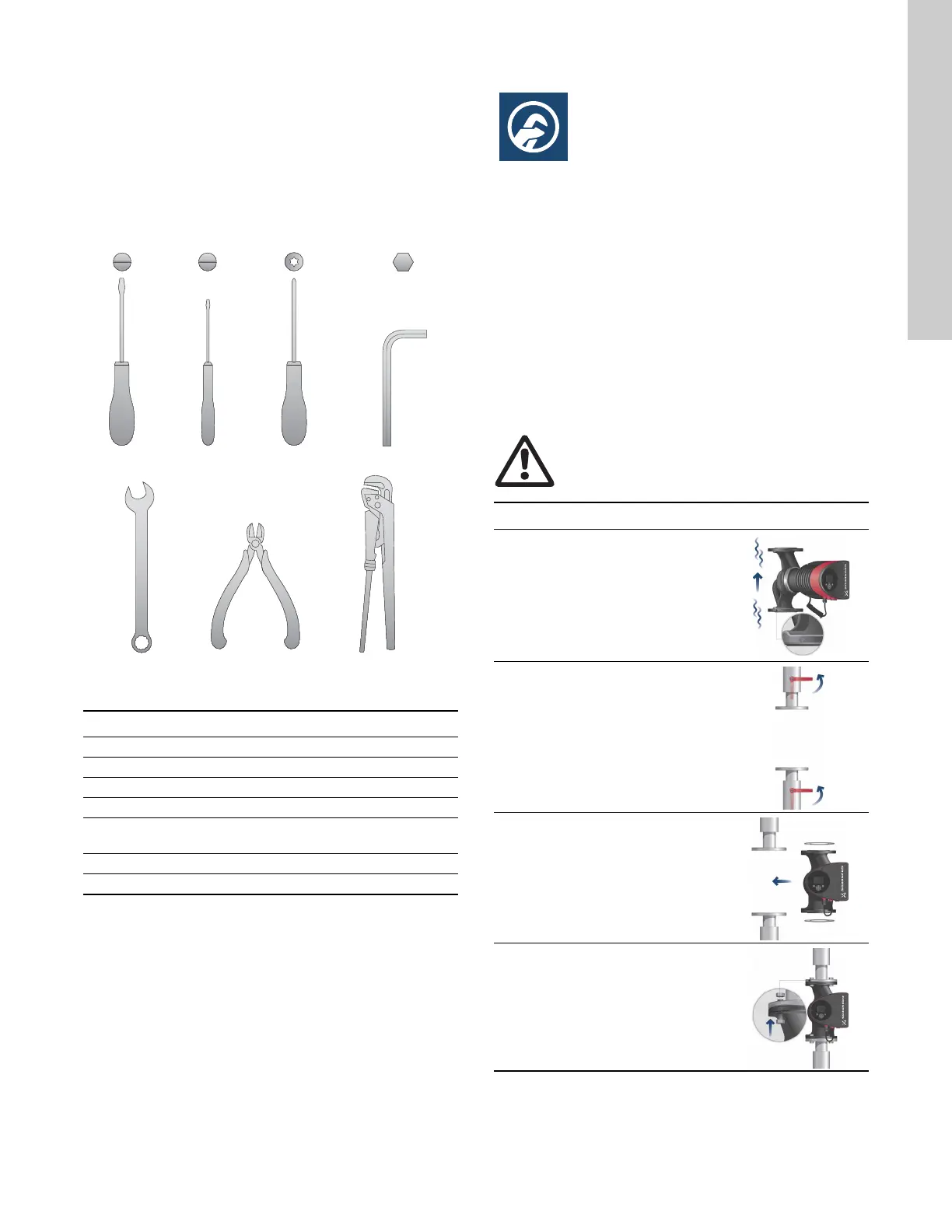

Fig. 6 Recommended tools
4. Mechanical installation
4.1 Installing the pump
MAGNA3 is designed for indoor installation.
The pump must be installed in such a way that it is not stressed
by the pipework.
The pump may be suspended direct in the pipes, provided that
the pipework can support the pump.
Twin-head pumps are prepared for installation on a mounting
bracket or base plate.
To ensure adequate cooling of motor and electronics, the
following must be observed:
• Position the pump in such a way that sufficient cooling is
ensured.
• The temperature of the ambient air must not exceed +104 °F
(+40 °C).
TM05 6472 4712
Pos. Tool Size
1 Screwdriver, straight slot 1.2 x 8.0 mm
2 Screwdriver, straight slot 0.6 x 3.5 mm
3 Screwdriver, torx bit TX20
4 Hexagon key 5.0 mm
5 Open-end wrench
Depending on flange bolt
size
6 Wire cutter
7Pipe wrench
1.2 x 8.0 TX200.6 x 3.5 5.0
Warning
Observe local regulations setting limits for
manual lifting or handling.
Step Action Illustration
1
Arrows on the pump housing
indicate the liquid flow direction
through the pump. The liquid
flow direction can be horizontal
or vertical, depending on the
control box position.
TM05 2862 0612
2
Close the isolating valves and
make sure that the system is not
pressurized during the
installation of the pump.
TM05 2863 0612
3
Mount the pump with gaskets in
the pipework.
TM05 2864 0612
4
Fit bolts and nuts. Use the right
size of bolts according to system
pressure.
TM05 2865 0612
