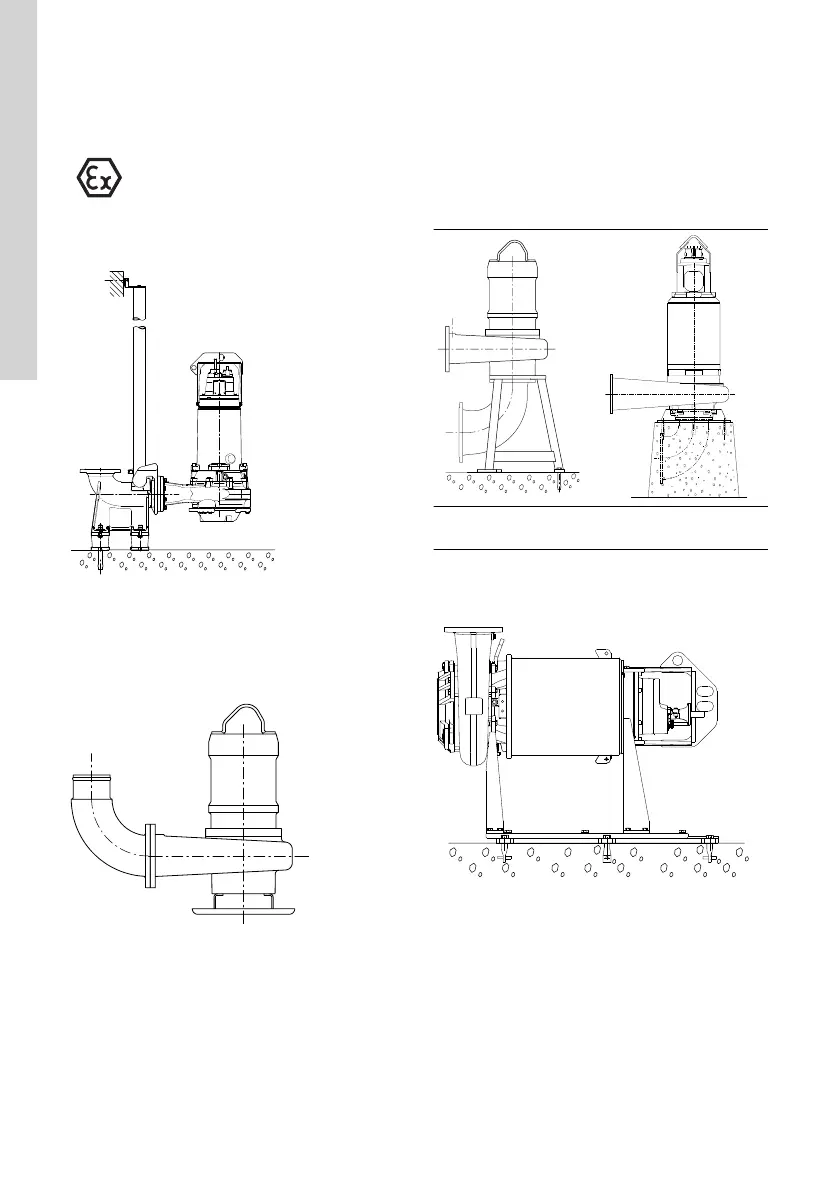

4.1.1 Mounting the product
4.1.1.1 Installation types
Both horizontal and vertical installations
are permitted.
Installation types C and S
Submerged installation on auto coupling
TM024000
Permanent installation in pit
Base stand installation
S pumps, ranges 50, 54 and 58, types S and C, can
be temporarily installed on a base stand.
TM024002
Submerged installation on a base stand
Installation type D
The pump is bolted to the inlet and outlet pipes by
flange connections. Pumps with DN 500 or DN 600
flange are to be installed on a plinth (concrete
foundation). See fig. Permanent vertical dry
installation with base stand (left) and base plate on
two concrete plinths (right).
TM024001
TM024023
Permanent vertical dry installation with base stand
(left) and base plate on two concrete plinths (right)
Installation type H
Permanent horizontal dry installation.
TM024003
Permanent horizontal dry installation
The pump is bolted to the inlet and outlet pipes by
flange connections.
