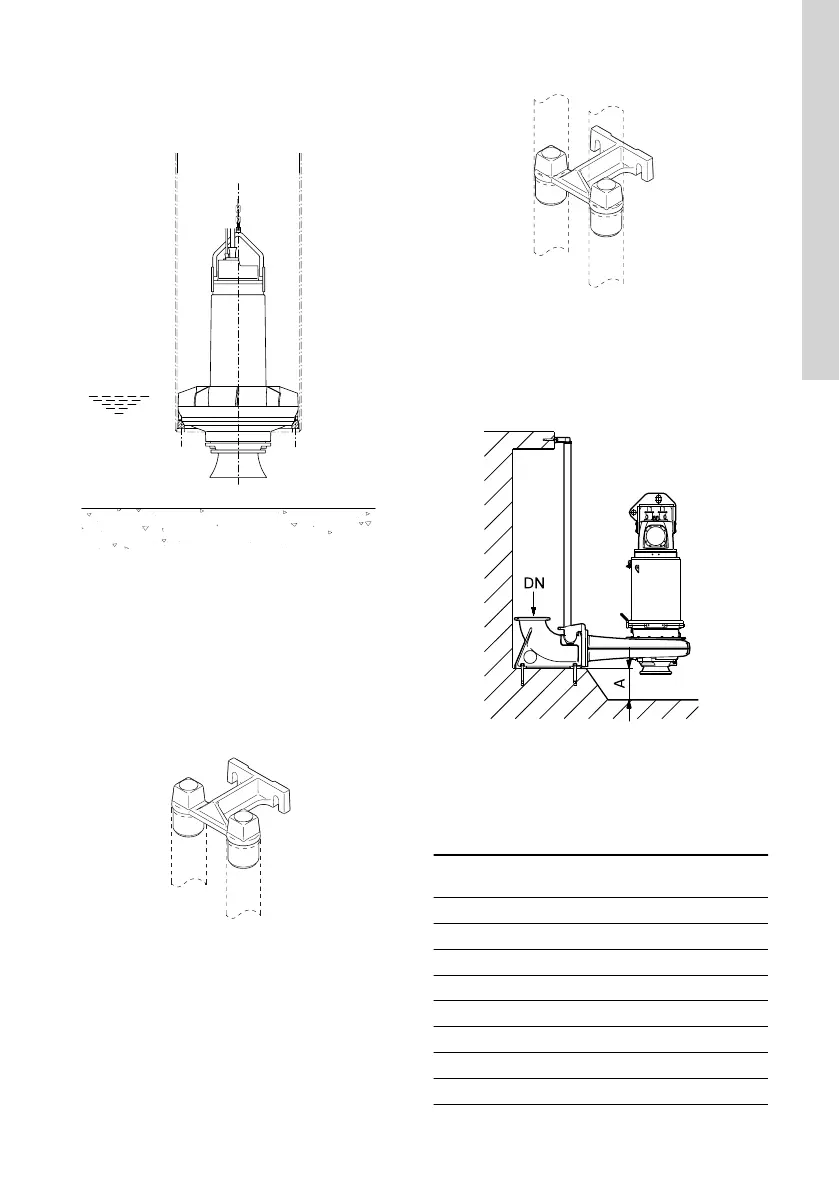

Installation type ST
Installation in column pipe.
TM065921
Submerged installation in column pipe
4.1.1.2 Lowering the pump onto auto coupling
The pump can be lowered into and pulled out of the
pit by the guide rails. The stop level is lower for
installation type C than for type S. See fig. Permanent
installation in pit.
TM033066
Upper guide-rail bracket
TM033068
Intermediate guide-rail bracket (guide rails longer
than 6 m require intermediate guide-rail brackets)
For installation on auto coupling, the correct plinth
height is essential to obtain the best efficiency.
TM032018
Auto-coupling base unit installation on a plinth
The minimum required plinth heights (A) for
installation on auto coupling are the following:
Pump type
Minimum plinth height
(A) [mm]
Range 50
S1.80.100.xxx 50
S1.80.200.xxx 200 / 0*
S1.100.100.xxx 50
S1.100.125.xxx 0
SV.80.80.xxx 0 / 50*
Range 54
S1.80.100.xxx 50
17
English (GB)
