Grundfos S Series User Manual

Pump type
Minimum plinth height
(A) [mm]
S1.100.125.xxx 0
S1.100.200.xxx 100 / 0*
S2.100.200.xxx 100 / 0*
S2.100.250.xxx 150 / 0*
SV.80.80.xxx** 0 / 50*
SV.80.80.xxx*** 50 / 100*
Range 58
S1.(x)xx.xxx.xxx 0
S2.xxx.xxx.xxx 150
SV.xx.xxx.xxx 0
Range 62
S1.(x)xx.xxx.xxx 0
S2.100.200.400 150
S2.100.200.500 200
S2.100.300.xxx 150
S2.145.xxx.xxx 150
S3.xxx.xxx.xxx 100
Range 66
S1.xxx.xxx.xxx 150
S2.xxx.xxx.xxx 150
S3.110.xxx.xxx 200
S3.120.300.xxx 400
S3.120.600.xxx 250
Range 70
S1.xxx.xxx.xxx 150
S2.90.xxx.xxx 100
S2.100.xxx.xxx 150
S2.110.xxx.xxx 150
S2.120.250.500/600/800/1
000
150
S2.120.250.1300/1600 200
S3.110.500.500 200
S3.110.500.650/800/1000/
1300
250
S3.120.300.500 400
S3.120.300.650 350
Pump type
Minimum plinth height
(A) [mm]
S3.120.300.800/1000 400
S3.120.300.1300 450
S3.120.600.500/650 250
S3.120.600.1000/1300 300
* Dimensions = material code Q and G / R and S.
** Installation type S.
*** Installation type C.

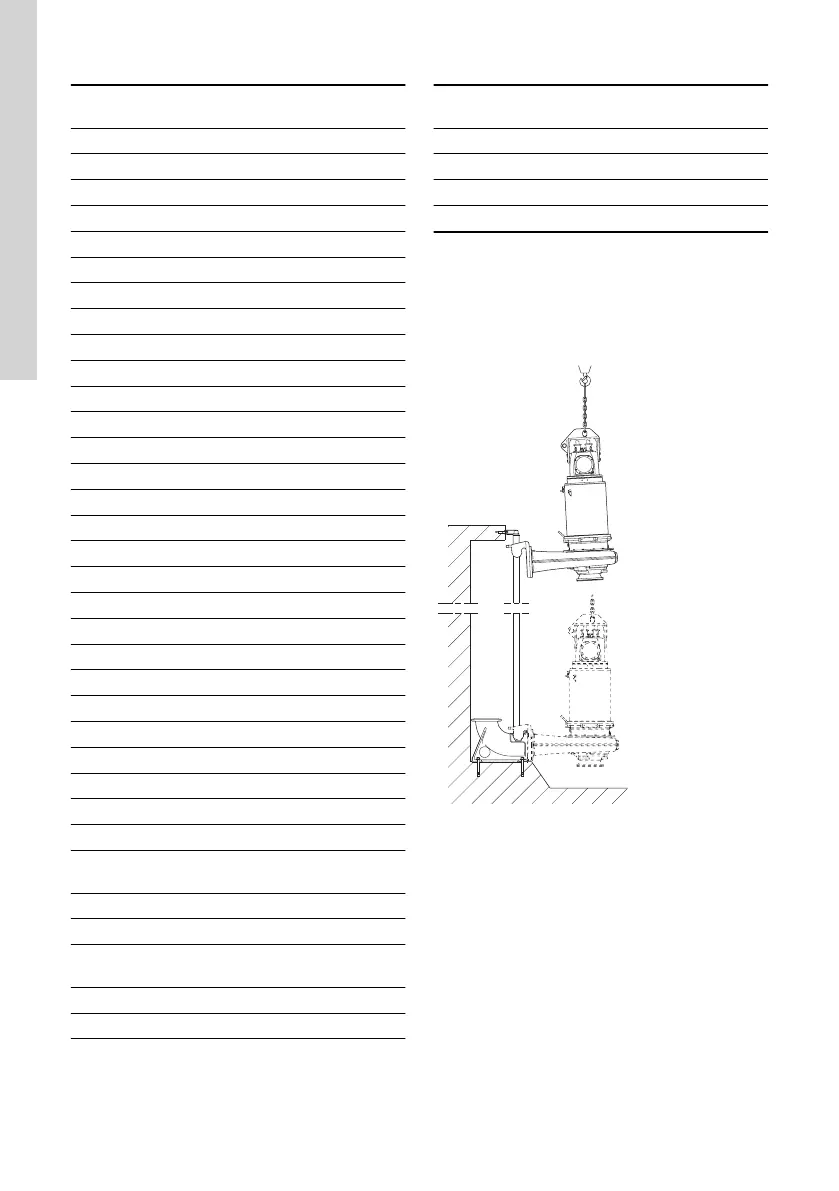

Required tilt angle when the pump is lowered onto the
auto coupling: ± 5°.
TM033067
Lowering the pump onto an auto coupling
Related information
4.1.1.1 Installation types
18
English (GB)
