English (GB)
7

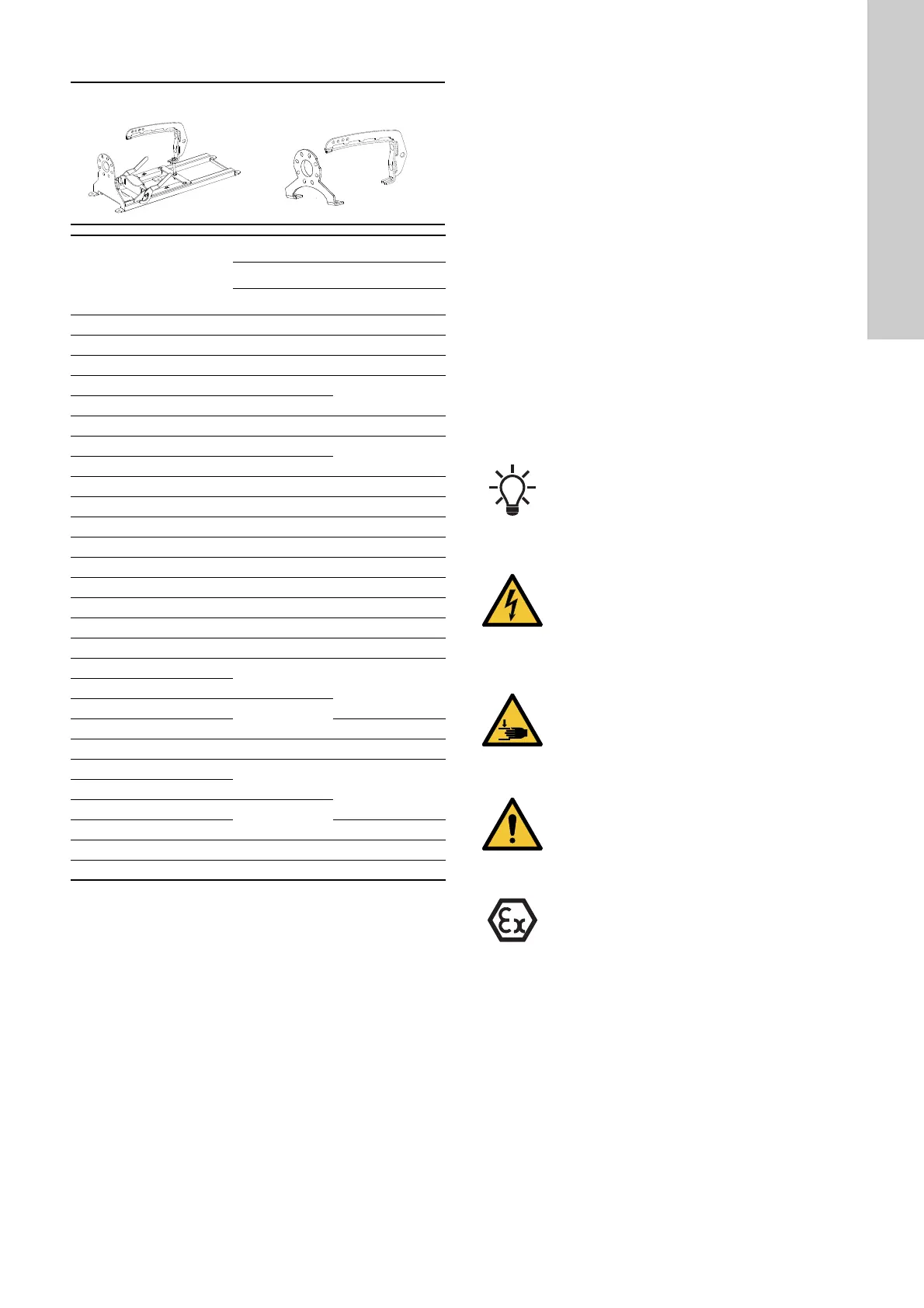

7.4 Special service tools
* Only for pumps for horizontal installation.
8. Servicing the product
Service must be carried out by specially trained persons.
Before carrying out service, make sure that the pump has been
thoroughly flushed with clean water. Rinse the pump parts in
water after dismantling.
8.1 Servicing Grundfos pumps with explosion-proof
motors
Only Ex-approved service centres are allowed to intervene in the
flameproof enclosure pump. Service not affecting the explosion
protection of the pump and not violating the Ex regulations may
be carried out by service persons who are not Ex-authorised.
Consequently, these persons are allowed to replace the following
parts of explosion-proof pumps:
• pump housing
• impeller
• seal ring and wear ring
•shaft seal.
All other service work must be carried out by an authorised Ex-
approved service centre. Violation of this requirement will
invalidate the Ex classification of the pump.
8.2 General information
HI
Pump type
Service sledge Service bracket
*
Part number
HI
SE1.50.65.22/30.2 98827089 98902621
SE1.50.65.40.2 98827090 98902623
SE1.80.80.15/22.2 98902585 98902622
SE1.80.80.30/40/55.4 98902603
98902625
SE1.80.80.75.4 98827091
SE1.80.100.15/22.2 98902585 98902622
SE1.80.100.30/40/55.4 98902603
98902625
SE1.80.100.75.4 98827091
SE1.100.100.40/55.4 98902607 98902626
SE1.100.100.75.4 98902609 98902630
SE1.100.150.40/55.4 98902607 98902626
SE1.100.150.75.4 98902609 98902630
SEV.65.65.22/30.2 98902585 98902622
SEV.65.65.40.2 98902602 98902625
SEV.65.80.22/30.2 98902585 98902622
SEV.65.80.40.2 98902602
SEV.80.80.11/13/15/22.4 98902589 98902622
SEV.80.80.40.4
98902603
98902625SEV.80.80.40/60/75.2
SEV.80.80.75.4
98827091
SEV.80.80.92/110.2 98902628
SEV.80.100.11/13/15/22.4 98902589 98902622
SEV.80.100.40.4
98902603
98902625SEV.80.100.40/60/75.2
SEV.80.100.75.4
98827091
SEV.80.10.110.2 98902628
SEV.100.100.40/60.4 98902606 98902625
SEV.100.100.75.4 98902608 98902628
Position numbers of parts (numbers in brackets) refer
to section 12. Drawings.
Position numbers of tools (letters in brackets) refer to
section 7. Service tools.
DANGER
Electric shock
Death or serious personal injury
- Before starting work on the pump, make sure that
the fuses have been removed or the mains switch
has been switched off.
- Make sure that the power supply cannot be
accidentally switched on.
WARNING
Crushing of hands
Death or serious personal injury
- Make sure that all rotating parts have stopped
moving.
WARNING
Crushing hazard
Death or serious personal injury
- At all times during service, make sure to secure
the pump against rolling over, e.g. by placing a
wooden wedge on either side of the pump.
Except for replacement or dismantling of pump
housing, shaft seal, impeller, seal ring and wear ring,
all other service work must be carried out by
Grundfos or an Ex-approved service centre.
