12. Advanced control panel
This control panel is fitted as standard on TPE3, TPE3 D pumps.
It can be fitted on TPE2, TPE2 D pumps as an option.

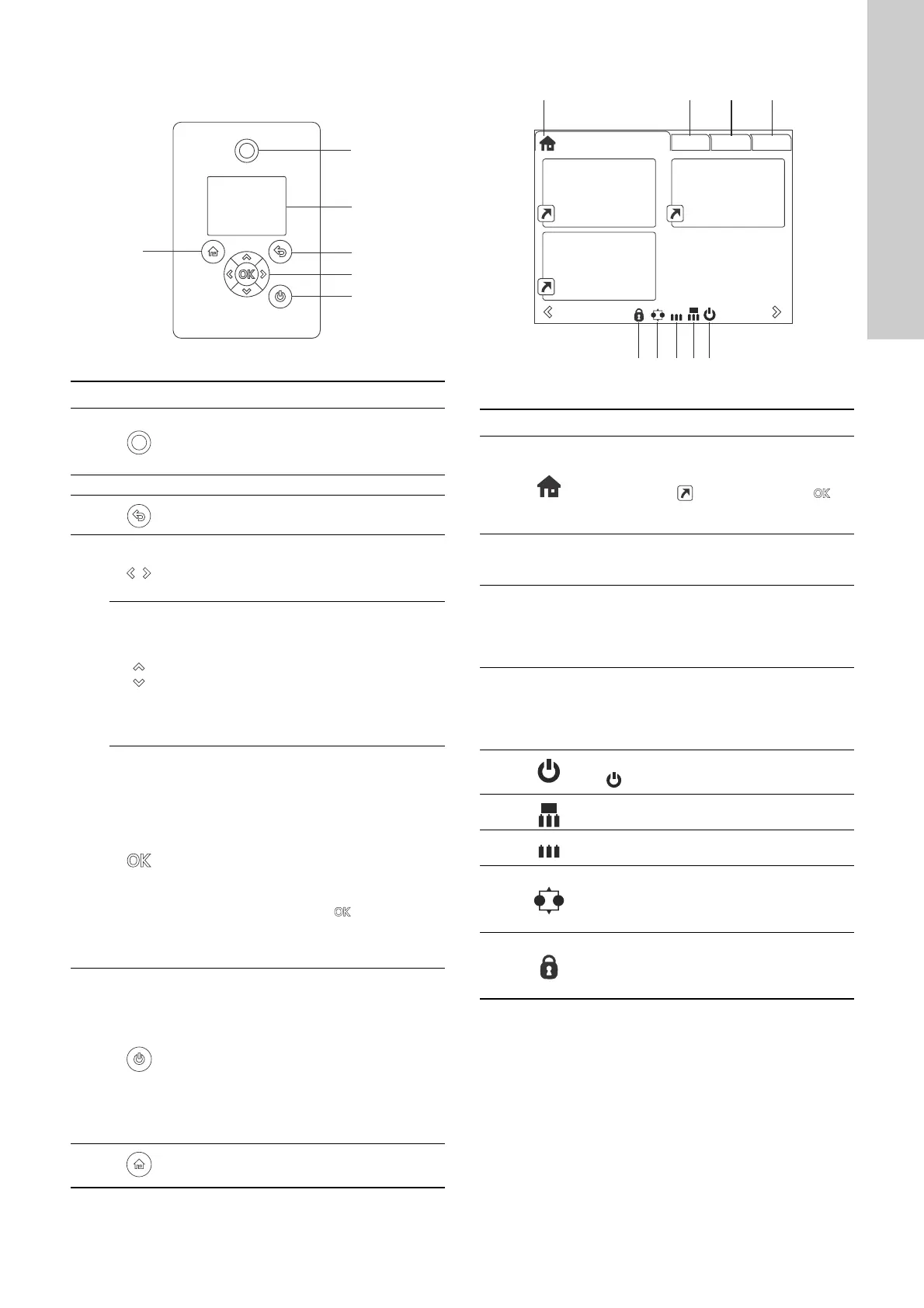

Fig. 31 Advanced control panel
12.1 Home display
Fig. 32 Example of "Home" display
12.2 Startup guide
The pump incorporates a startup guide which is started at the first
startup. See section 14.40 Run start-up guide. After the startup
guide, the main menus appear in the display.
TM05 4849 1013
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of the pump.
See section 19. Grundfos Eye for further
information.
2 - Graphical colour display
3 Goes one step back.
4
Navigates between main menus, displays and
digits.
When the menu is changed, the display
always shows the top display of the new menu.
Navigates between submenus.
Changes value settings.
Note: If you have disabled the possibility to
make settings with the "Enable/disable
settings" function, then you can enable it
temporarily again by pressing these buttons
simultaneously for at least 5 seconds. See
section 14.31 Buttons on product
(Enable/disable settings).
Saves changed values, resets alarms and
expands the value field.
Enables radio communication with Grundfos
GO and other products of the same type.
When you try to a establish radio
communication between the pump and
Grundfos GO or another pump, the green
indicator light in Grundfos Eye will start
flashing. A note also appears in the pump
display stating that a wireless device wants to
connect to the pump. Press on the pump
control panel to enable radio communication
with Grundfos GO and other products of the
same type.
5
Makes the pump ready for operation/starts and
stops the pump.
Start:
If you press the button when the pump is
stopped, the pump will only start if you have
not enabled another function with higher
priority. See section 18. Priority of settings.
Stop:
If you press the button when the pump is
running, the pump will always stop. The "Stop"
text next to the button is on.
6 Goes to the "Home" menu.
1
2
3
4
5
6
TM06 4516 2415
Pos. Symbol Description
1
"Home"
This menu shows up to four user-defined
parameters. You can select parameters shown
as shortcut icon , and when pressing ,
you will go directly to the "Settings" display for
the selected parameter.
2-
"Status"
This menu shows the status of the pump and
system as well as warnings and alarms.
3-
"Settings"
This menu gives access to all setting
parameters. You can make detailed settings of
the pump in this menu.
See section 14. Description of functions.
4-
"Assist"
This menu enables assisted pump setup,
provides a short description of the control
modes and offers fault advice.
See section 14.43 Assist.
5
Indicates that the pump has been stopped via
the
button.
6
Indicates that the pump is functioning as
master pump in a multipump system.
7
Indicates that the pump is functioning as slave
pump in a multipump system.
8
Indicates that the pump is operating in a
multipump system. See section
14.47 Multipump setup (Setup of multi-pump
system).
9
Indicates that the possibility to make settings
has been disabled for protective reasons. See
section 14.31 Buttons on product
(Enable/disable settings).
Setpoint
5.00 bar
Operaring mode
Normal
Actual controlled value
4.90 bar
Control mode
Const. pressure
Status Settings Assist
1 2 3 4
56789
Home
