Grundfos TPE 2 Series User Manual

English (GB)
53

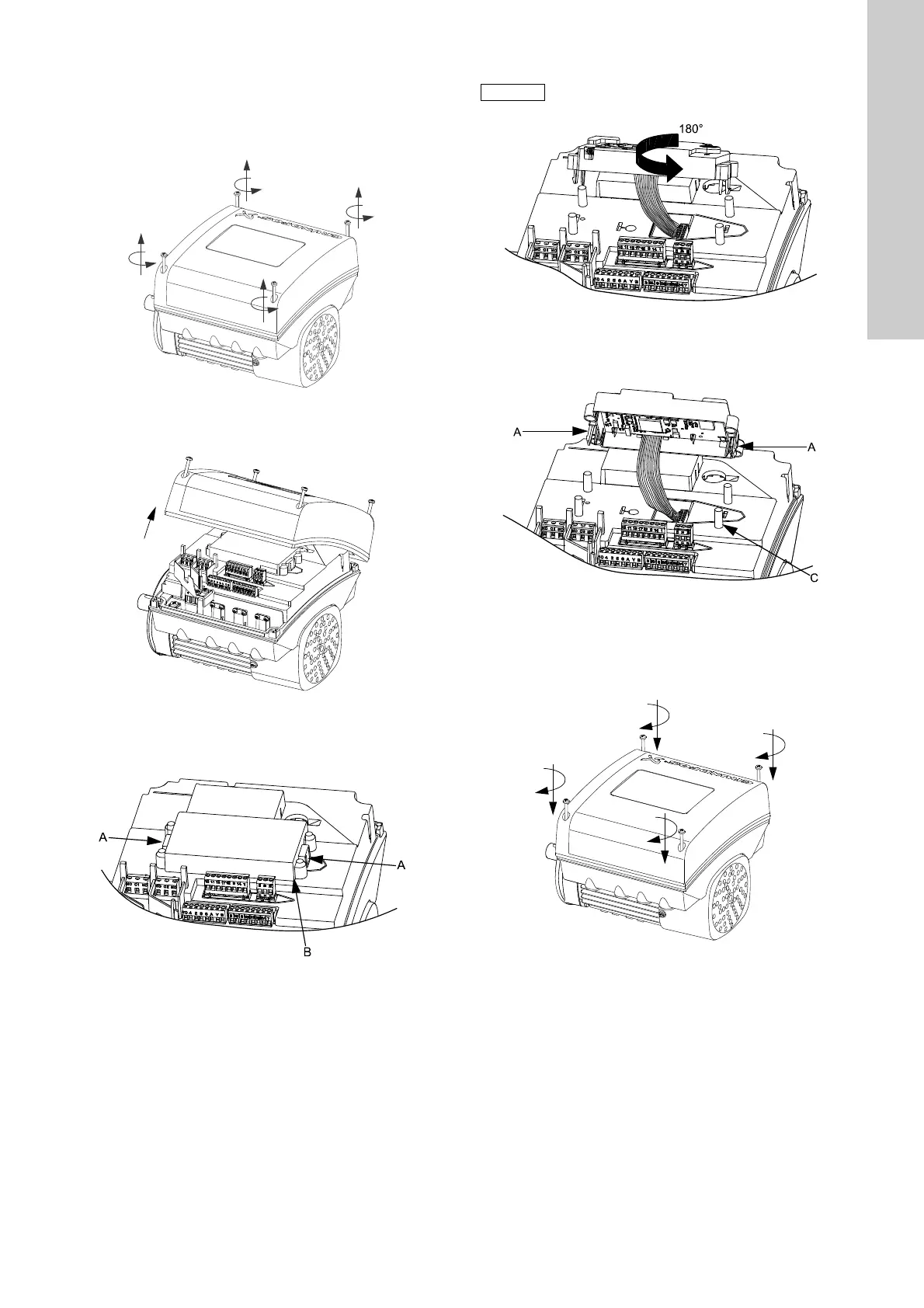

16. Changing the position of the control panel
You can turn the control panel 180 °. Follow the instructions
below.
1. Loosen the four screws (TX25) that hold the terminal box
cover.
Fig. 72 Loosening the screws
2. Remove the terminal box cover.
Fig. 73 Removing the terminal box cover
3. Press and hold in the two locking tabs (A) while gently lifting
the plastic cover (B).
Fig. 74 Lifting the plastic cover
4. Turn the plastic cover 180 °.
Fig. 75 Turning the plastic cover
5. Position the plastic cover correctly on the four rubber pins (C).
Make sure that the locking tabs (A) are placed correctly.
Fig. 76 Positioning the plastic cover
6. Fit the terminal box cover, and make sure that it is also turned
180 ° so that the buttons on the control panel are aligned with
the buttons on the plastic cover.
Tighten the four screws (TX25) with 5 Nm.
Fig. 77 Fitting the terminal box cover
TM05 5351 3612TM05 5352 3612TM05 5353 3612
Note
Do not twist the cable more than 90 °.
TM05 5354 3612TM05 5355 3612TM05 5356 3612

Grundfos TPE 2 Series Specifications

General

Enclosure Class	IP55
Frequency	50/60 Hz
Protection Class	IP55
Pump Type	Centrifugal
Pressure Rating	10 bar
Material	Stainless Steel
Operating Pressure	10 bar
Control Mode	Variable Speed
Communication	Modbus
Impeller Type	Closed Impeller
