For generator sets in cabin (canopy), with a hoist ring located at the top of the cabin, the
lifting of the group must be run through this ring.
The soundproofed groups in containers will be lifted using ISO corners.

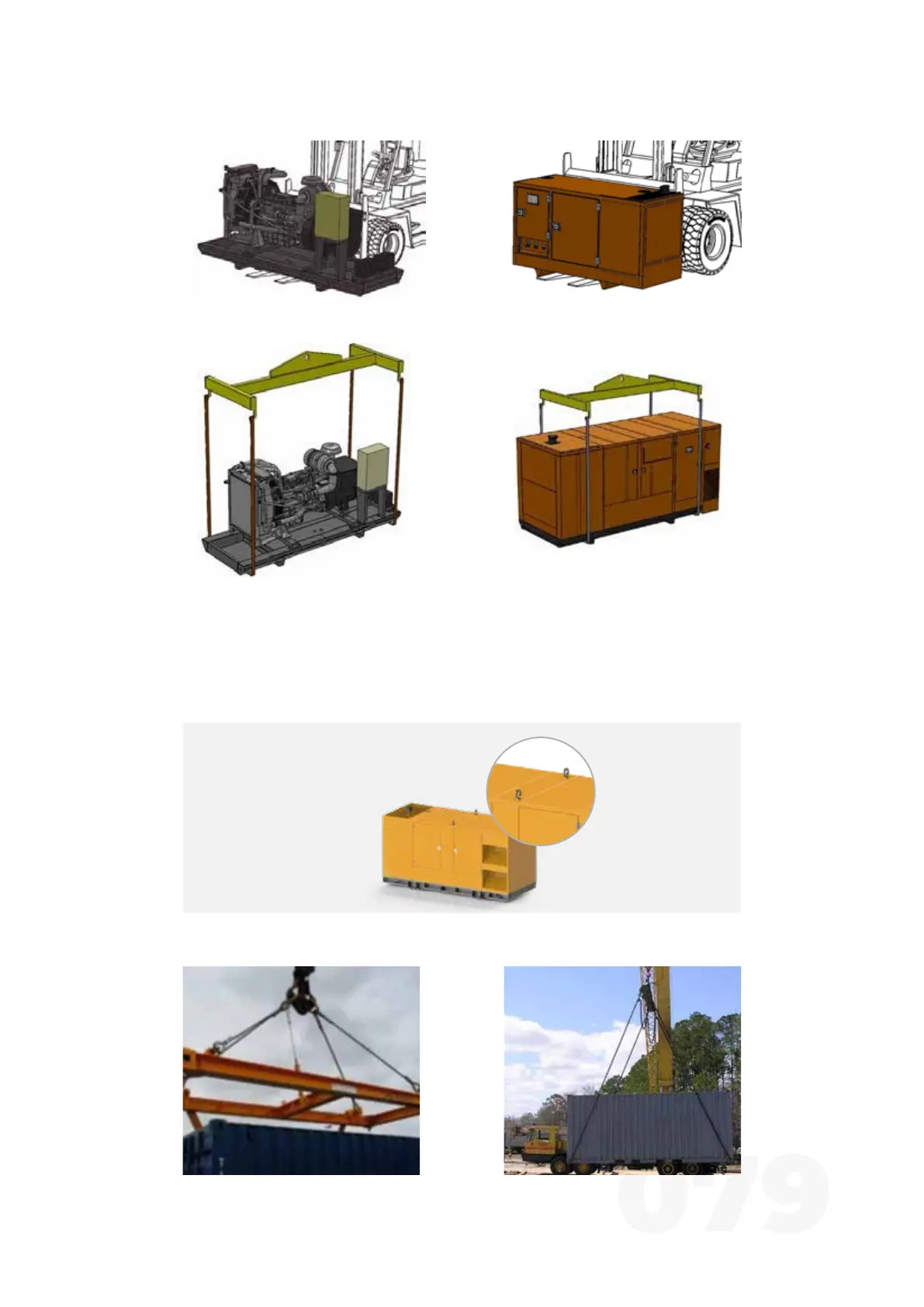

Figure 8
Elevation with forklift. Stationary genset.
Figure 9
Elevation with forklift. Soundproofed genset.
Figure 11
Elevation with lifting straps. Soundproofed genset.
Figure 10
Elevation with lifting straps. Stationary genset.
Figure 12 - Hoist ring
Figure 14 – Container lifting. Option 2
Figure 13 – Container lifting. Option 1
