GS corpuls3 - Separating the Patient Box; Connecting the Patient Box

6 ENG - Version 2.2 - P/N 04131.02
Separating and Connecting the
Patient Box

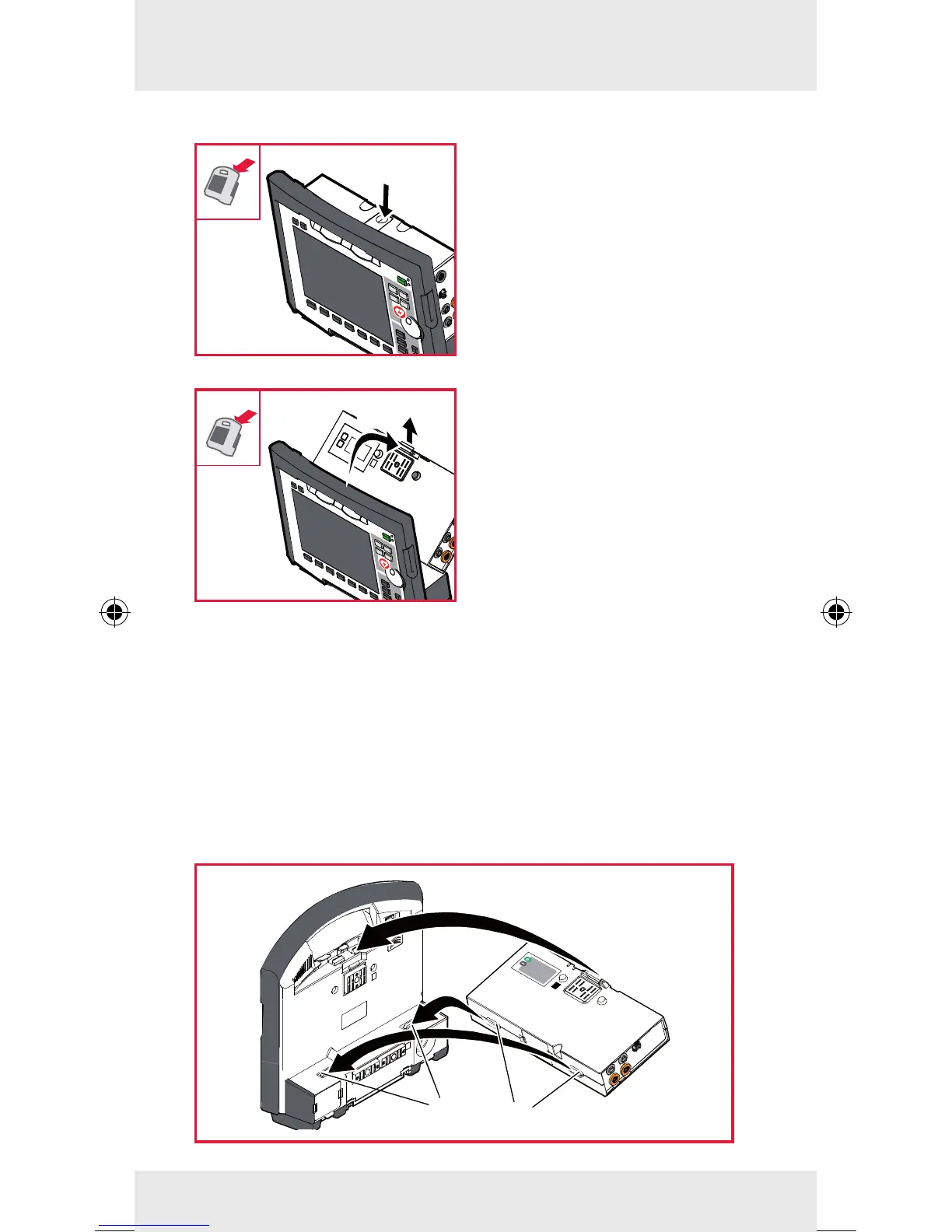

Separating the Patient Box
1. Grasp the monitoring unit
by the carrying handle and
press the snap lock of the
patient box downwards
(item A).
2. Tilt the patient box rear-
wards (item B) and remove
(item C).
Connecting the Patient Box
1. Position the patient box with the display facing the monitoring
unit and t onto the monitoring unit. The recesses (item 1)
of the patient box engage in the two pins (item 2) of the
monitoring unit.
2. The patient box must be engaged at the bottom (item A) and
in the closure at the top (item B).
B
A
1
2
A
C
B
