GS corpuls3 - Separating Defibrillator SLIM; Connecting Defibrillator SLIM

7ENG - Version 2.2 - P/N 04131.02
Separating and Connecting Compact
Monitor and Defibrillator SLIM

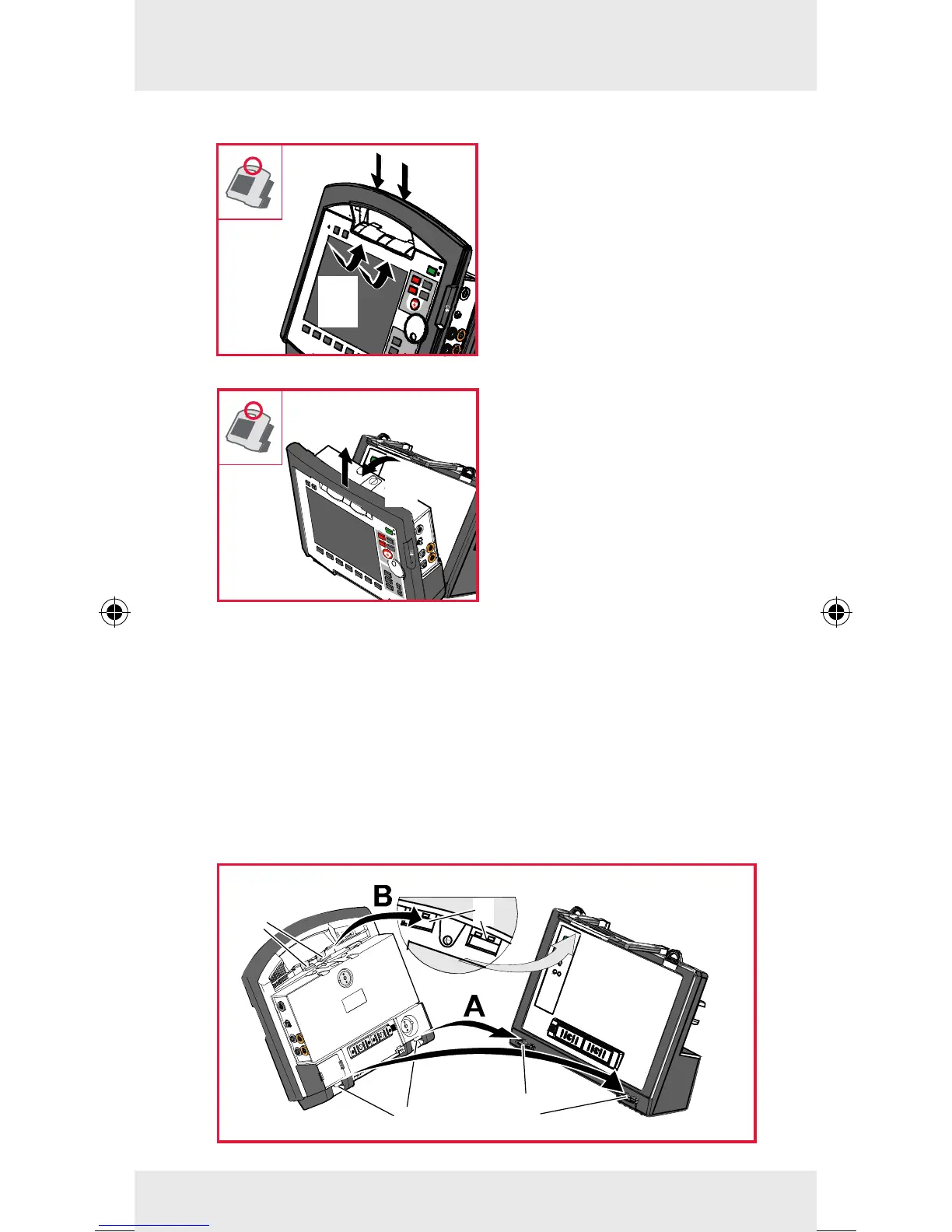

Separating Debrillator SLIM
1. Grasp the compact monitor
by the carrying handle
and pull both snap locks
simultaneously forwards
and upwards (item A) or
push them rearwards and
downwards (item B).
2. Tilt the monitoring unit for-
wards (item C) and remove
upwards (item D).
Connecting Debrillator SLIM
1. Lift the compact monitor, tilt and t onto both pins (item 1)
in the two recesses (item 2) at the debrillator/pacer SLIM
(item A).
2. Tilt the compact monitor towards the debrillator/pacer
(item B) until the closures (item 3) perceptibly engage
(item 4) at the debrillator/pacer SLIM.
