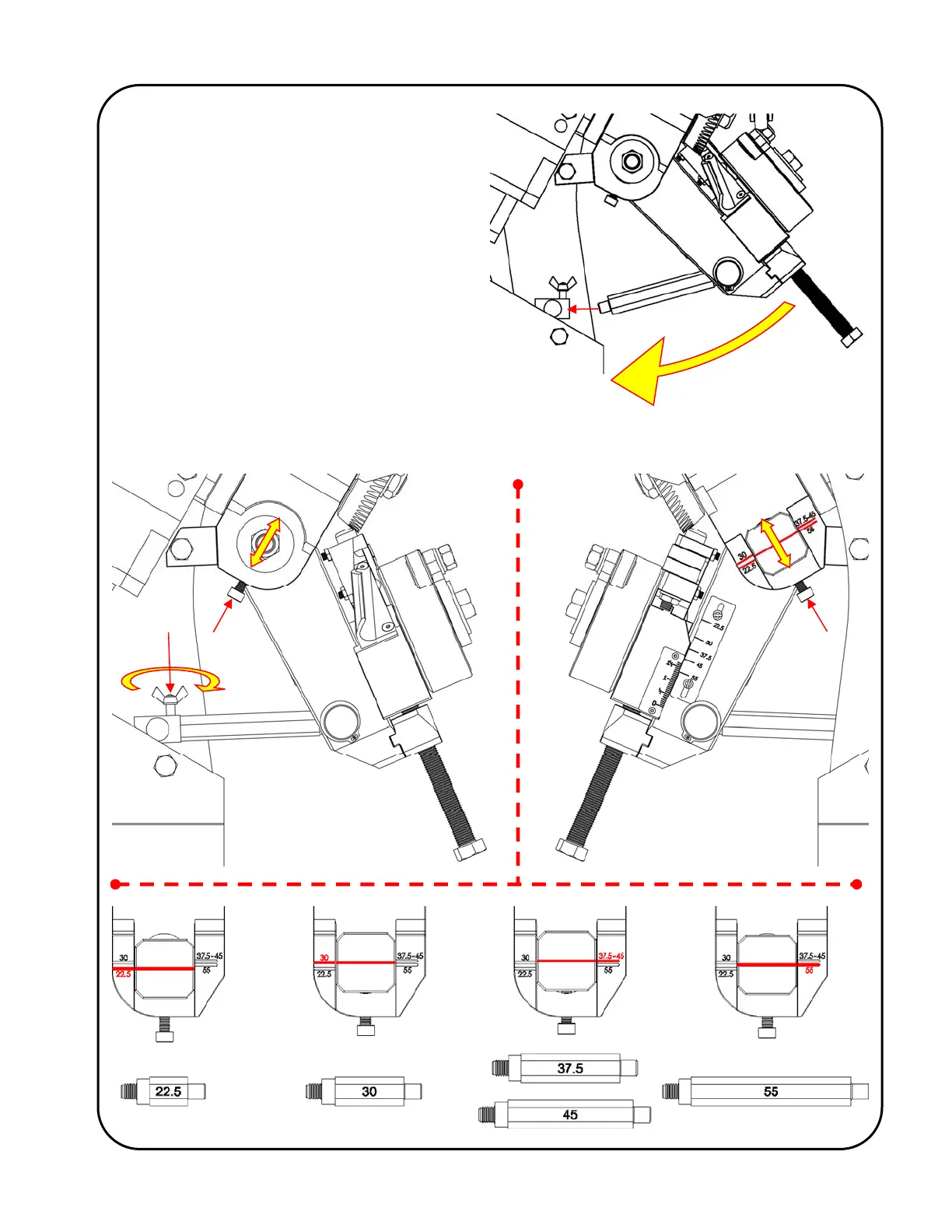

9. Lower the Pivot Arm Assembly
downward while guiding the end of the
Angle Pin into its mating hole in the
Angle Support Bar.
10. Re-tighten the Wing Screw.
11. Using the screws on each side of the
Cutter Shaft Housing, adjust the Angle
Alignment Bolt, up or down, so that the
notched mark on the end of the Angle
Alignment Bolt lines-up with the
appropriate mark engraved on the side
of the Cutter Shaft Housing. The
Alignment Bolt must be adjusted equally
from both sides of the Cutter Shaft Housing to prevent the bolt from twisting.
Note: the
alignment is the same for the 37.5º & 45º bevel angles.
