12. Re-tighten the nut of the Angle Alignment Bolt.

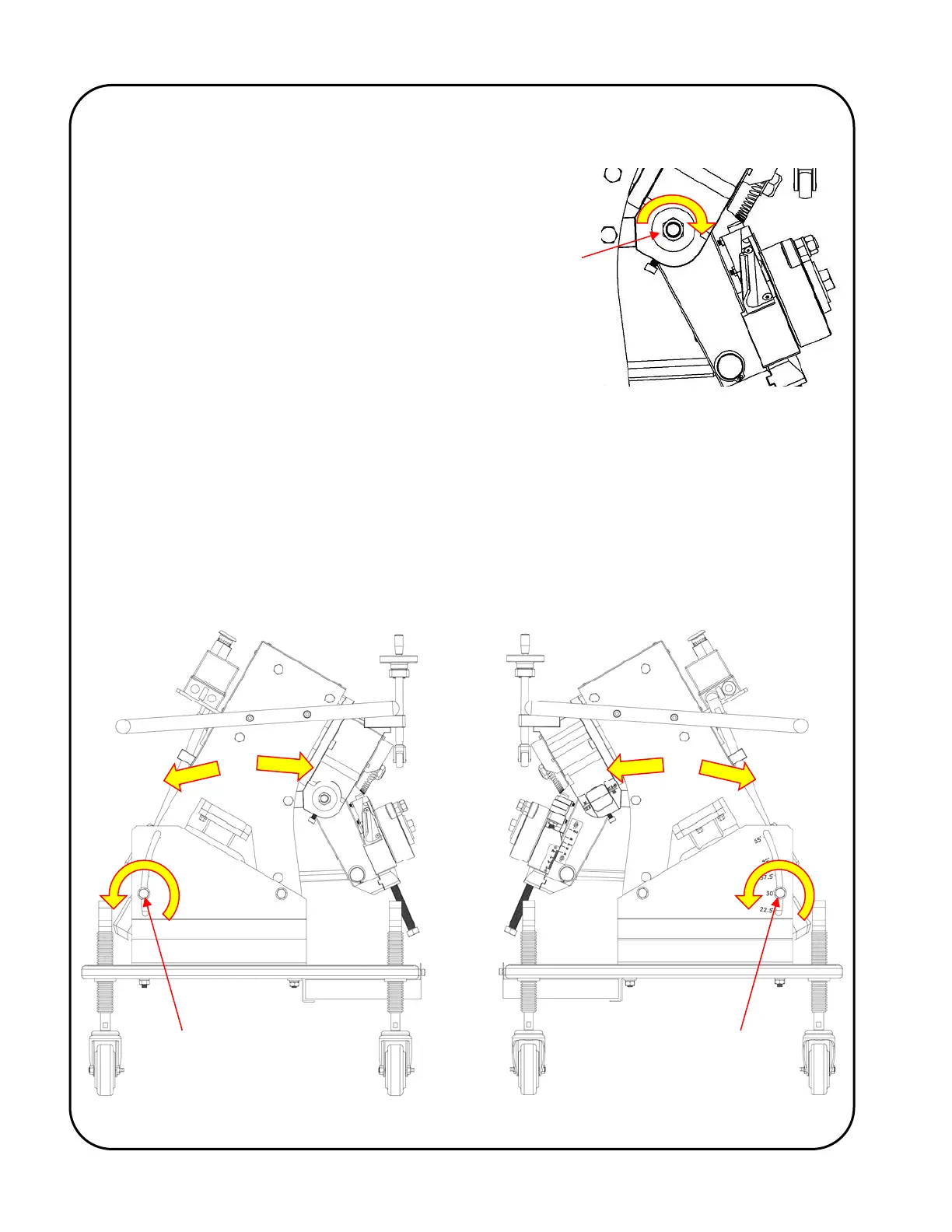

13. Warning! Ensure that the weight of the
machine is securely supported to prevent
unwanted tipping and that no body parts, or
other items, are located near pinch points prior
to performing this next procedure! In order to
tilt the main body of the machine to the desired
bevel angle, two (2) clamping bolts must be
loosened, allowing the machine to pivot around an
axis at the front of the Tilting Base Frame. The
weight of the main body of the machine will
result in undesirable motion (forward or backwards, depending on the tilt angle) if it is
not properly supported first. Slightly loosen the two (2) bolts, one (1) on each side of the
Tilting Frame Base, so that there is still enough clamping tension to prevent undesirable
tilting motion of the main body of the machine, but sufficient enough to allow the tilting angle
to be manually positioned.
14. Tilt the main body of the machine so that the centre of the rear clamping bolts line-up with
the appropriate marks engraved on each side of the Tilting Base Frame.
