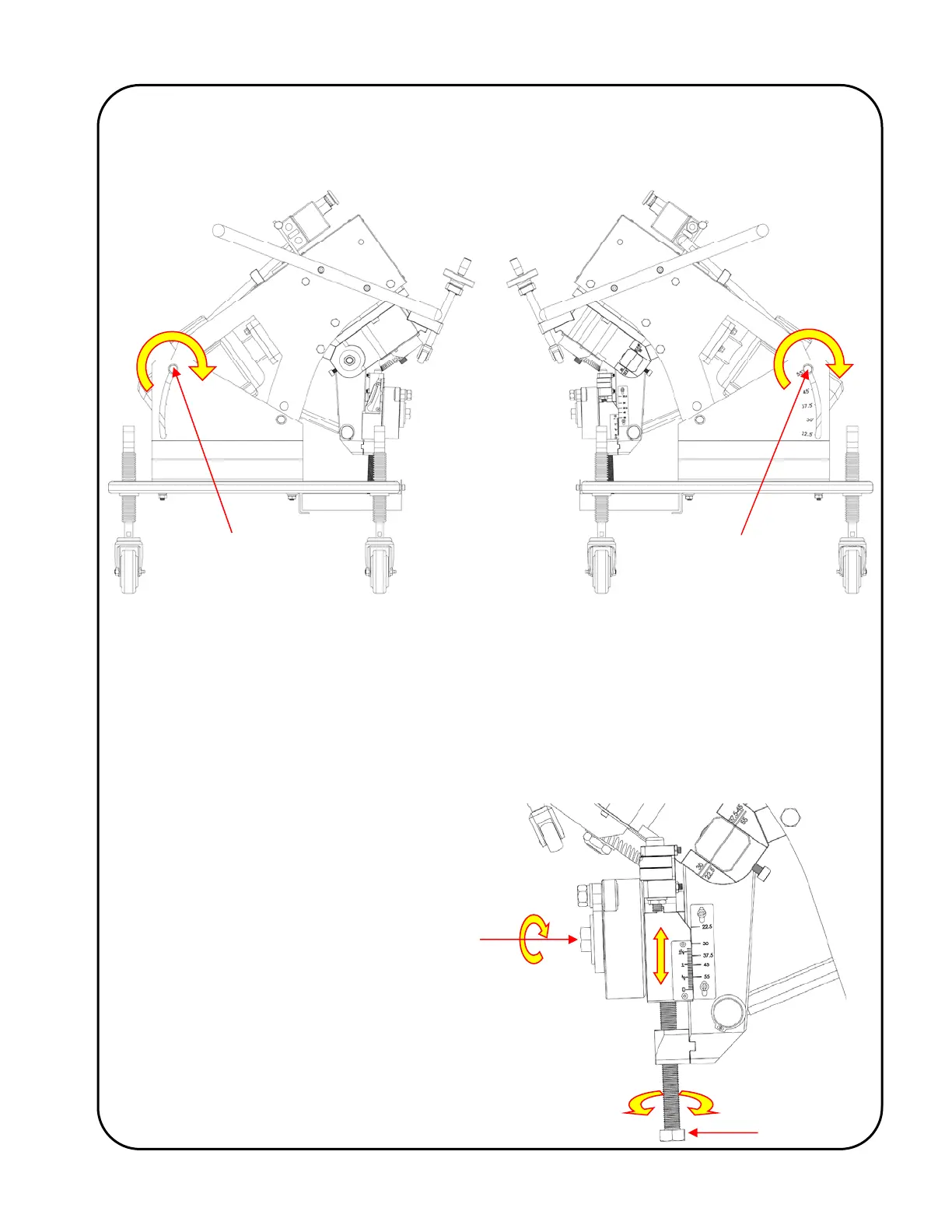

15. Re-tighten the two (2) bolts, one (1) on each side of the Tilting Frame Base.
16. Using the Slide Base Adjusting Bolt, adjust the Slide Base Assembly, up or down, to the
desired depth of bevel cut, using the appropriate Angle Reference Scale attached to the
Pivot Arm Block and the fixed Root Face (land) Scale attached to the Slide Base Assembly
as a reference. Note: several set-up and operational elements can affect the accuracy
of the Root Face / Angle Reference Scales. Therefore these scales should only be
used as approximate reference guides and a test run is recommended to check the
actual root face setting. The Angle Reference Scale is slotted to allow the operator to
recalibrate based on an actual bevel. The Root Face Scale is reversible, with inch markings
on one side and millimetres on the other side.
17. IMPORTANT: Ensure that no
dirt or other contaminant has
been trapped behind the Main
Roller, or behind the Slide
Base, and ensure that the
slide base is seated properly,
and then FIRMLY re-tighten the
Slide Base Clamping Bolt.
