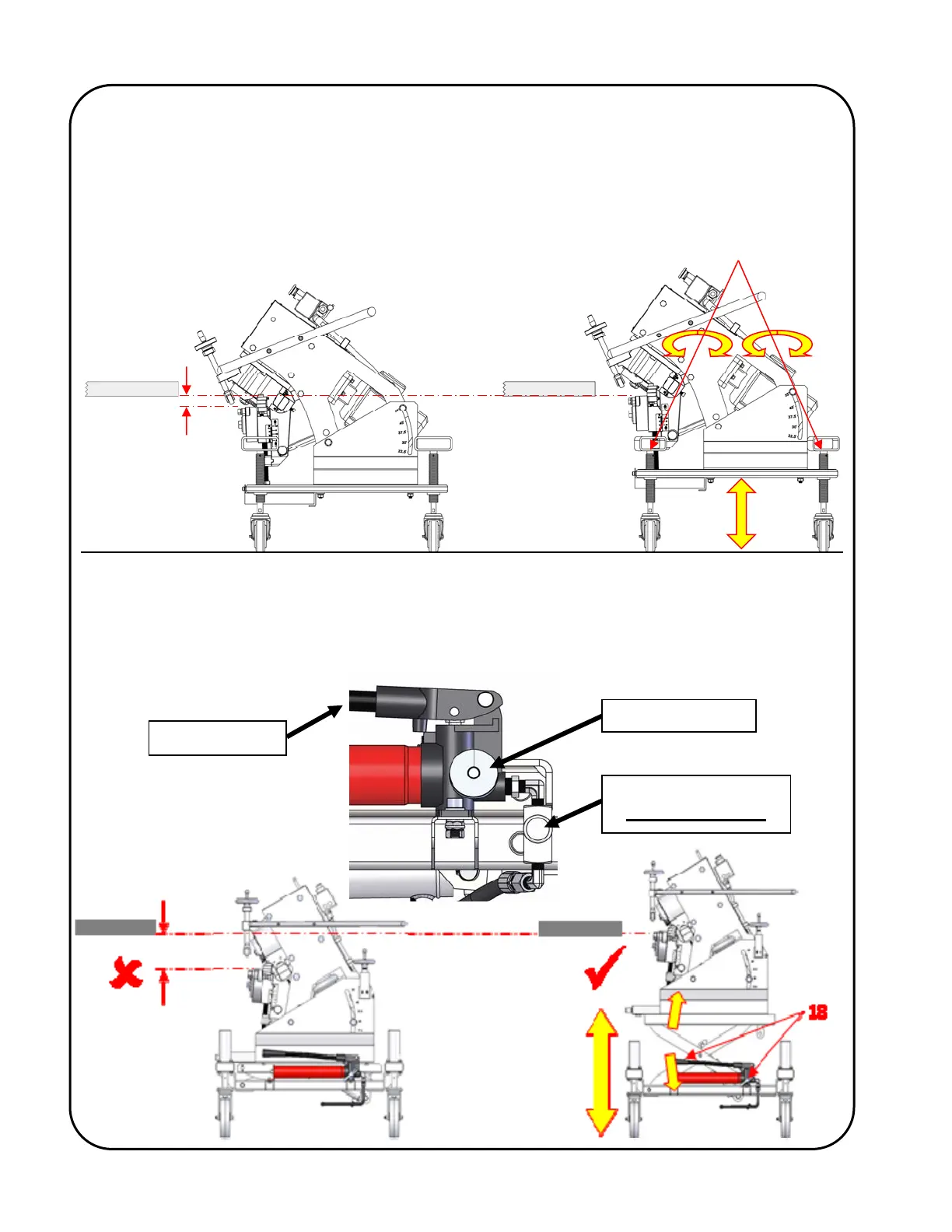

18. Using the adjustable caster handles on each corner of the optional Base Frame Assembly,
adjust the working height of the machine to suit the height of the work table (the top of the
Main Roller, after adjusting to desired bevel depth, is to be the same height as the underside
of the plate to be bevelled). Take care to adjust all four casters so that the machine is level.
Using the hydraulic pump on the optional hydraulic lift undercarriage, adjust the working
height of the machine to suit the height of the work table (the top of the Main Roller, after
adjusting to desired bevel depth, is to be the same height as the underside of the plate to be
bevelled). To lower the working height of the machine, slowly turn the release valve (located
on the pump body) counter clockwise. Turn the valve clockwise once the desired height is
reached
18
Release Valve
Pump Handle
Flow Control Valve
DO NOT ADJUST
