36
TROUBLESHOOTING GUIDE, CONTINUED….

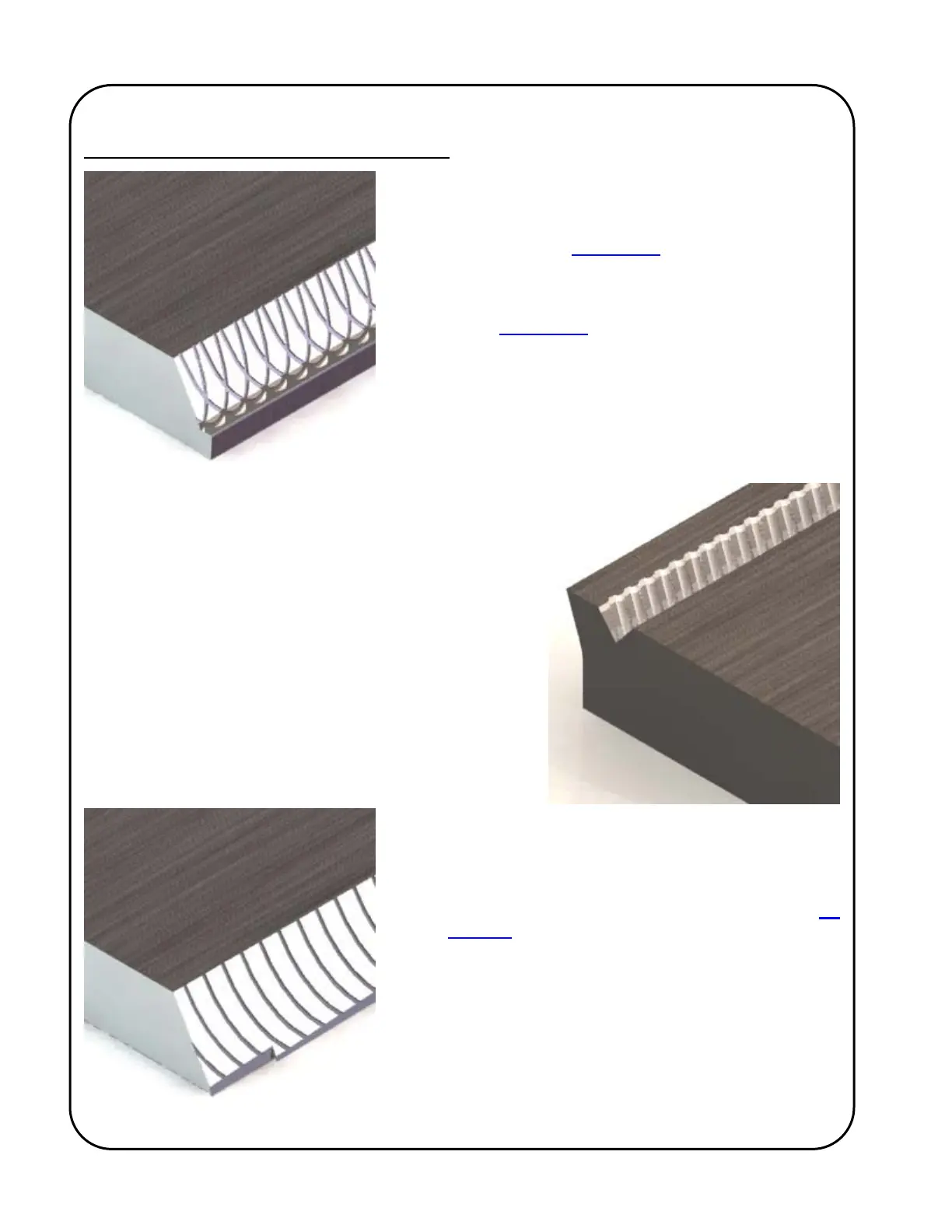

If the bevelled plate looks similar to the adjacent image:
Check that the cutter thickness and spacers are not too
great (as described on page 29).
Check that the correct angle pin is installed and that
the Angle Alignment Bolt setting is correct (as
described on page 13).
If the above checks do not find the problem, try
adjusting the Angle Alignment Bolt so that it is slightly
higher than the appropriate mark engraved on the side
of the Cutter Shaft Housing.
If the bevelled plate looks similar to the adjacent image;
Stop bevelling with the machine immediately!
Serious component damage will result after a
very short period of use under these
conditions.
Perform the same checks as listed next to the
image above.
If the bevelled plate looks similar to the adjacent image:
Lower the slide base assembly (as described on
page 15).
It may be necessary to perform a bevel, leaving a
small root face (land), measuring the root face, and
then adjusting the Angle Reference Scale
accordingly.
