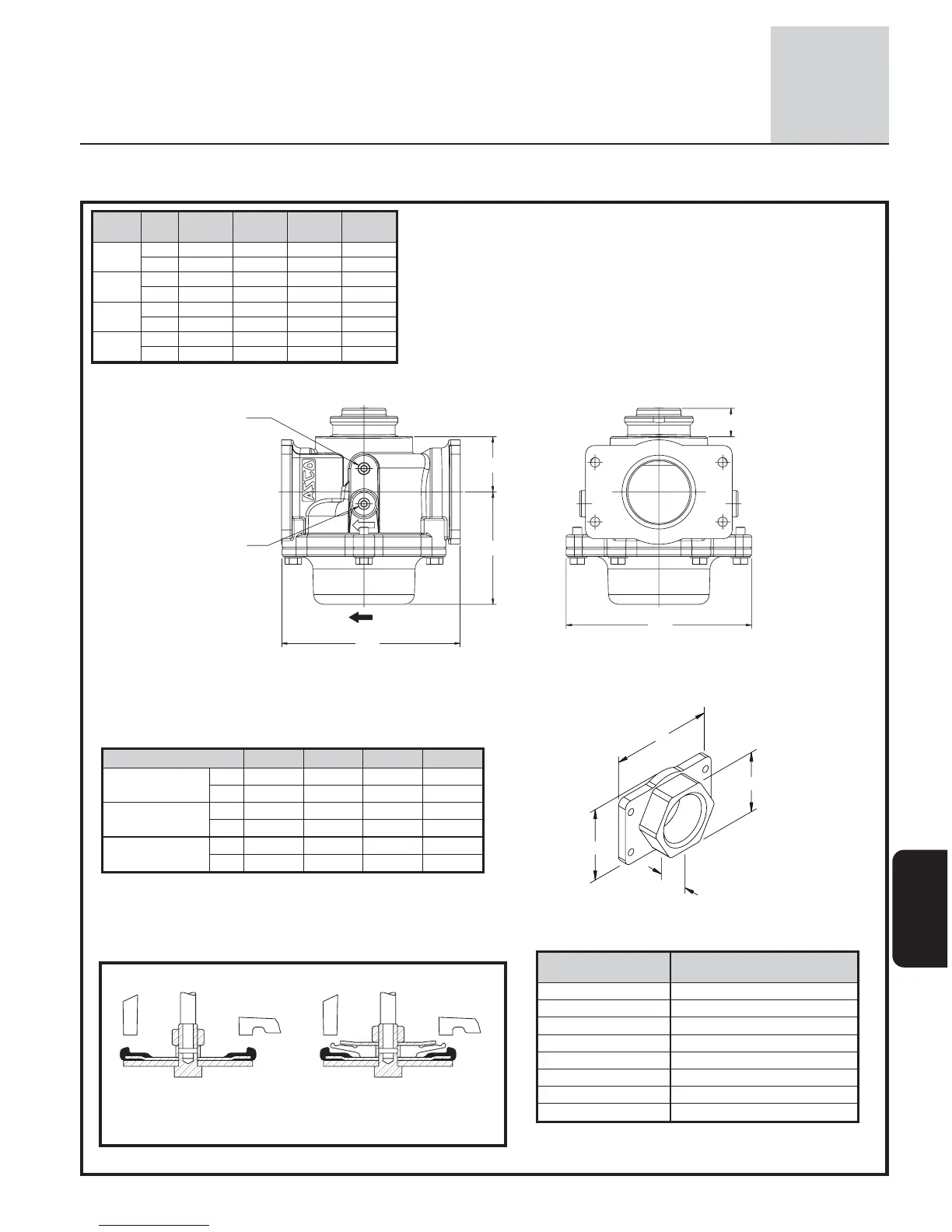

Guspro BB-8416884 - Dimensions inches (mm); Flange Adapters; Trim Types

SERIES
V710 (B)
4
COMBUSTION
365
Dimensions inches (mm)
Const. Ref. 1-3
Const.
Ref. A B C D
1
ins. 5.3 3.48 1.46 5.39
mm 135 88 37 137
2
ins. 6.09 3.83 1.89 6.32
mm 155 97 48 161
3
ins. 7.80 5.28 2.38 7.94
mm 198 134 60 202
4
ins. 13.88 5 7.40 9
mm 353 127 188 229
FLOW
A
B
C
D
.97
[25]
1/8" NPT
UPSTREAM
PIPE PLUG
2 PLACES
1/8" NPT
DOWNSTREAM
PIPE PLUG
2 PLACES
QUICK OPENING TRIM
(STANDARD)
QUICK OPENING WITH
VALVE SEAL OVERTRAVEL TRIM
(SUFFIX V22)
* Please refer to the Double Gas Shutoff Valves catalog pages
for more kit information.
Pipe Size (ins.)
Inlet & Outlet
Adapter/Hardware Kit
3/4 296659-001
1 296659-002
1 1/4 296659-005
1 1/2 296659-006
2 296659-007
2 (High Flow) 296659-008
2 1/2 296659-009
3 296659-010
Flange Adapter Kits (Optional)*
HEX
B1
H1
L1
Flange Adapters
Trim Types
Flange Adapters B1 H1 L1 HEX
3/4" - 1"
ins. 4.8 2.5 1.27 2.5
mm 122 76 32 64
1 1/4" - 2"
ins. 5 3.56 1.38 3
mm 127 90 35 76
2" (High Flow) - 3"
ins. 7 4.5 2.015 4.5
mm 178 114 51 114
