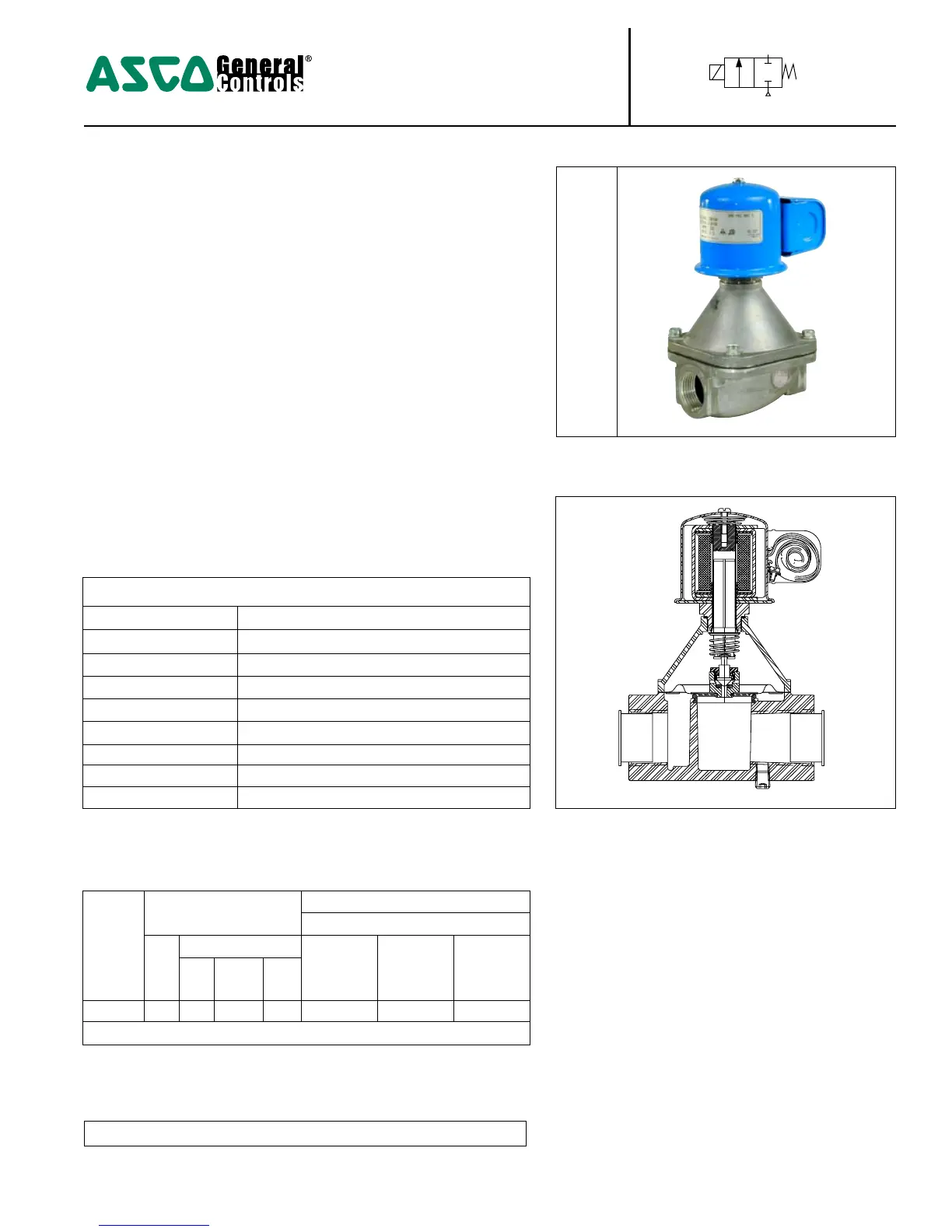

Guspro BB-8416884 - Features; Specifications; Construction; Electrical

Features
• 2 way Normally Closed operation.
• Die-cast aluminum bodies.
• For positive shutoff on pilot or main gas lines of commercial
and industrial gas burners.
• Valves provided with
1
/
8
” NPT upstream and downstream
pipe tap with plug for routine testing.
• Suitable for ambient temperatures up to 175˚F.
High Pressure Pilot Operated
Gas Shutoff Valves
3/4" to 1
1
/2
" NPT
2/2
SERIES
K3A6
Solenoid Enclosures
Construction
Standard: Junction Box Housing with two 7/8” knock-outs.
Electrical
NC
^
#
!
%
@
Specifications
Fluid Handled: Fuel Gas
Fluid Temperature: 77˚F (25˚C) Nominal
Ambient Temperature: -40˚F to 175˚F (-40˚ t0 80˚C)
Installation: Mount with coil housing upright or horizontal.
Approvals:
UL listed Shutoff Valve; Guide No.YIOZ (File MP-932) to
standard UL 429; “Electrically Operated Valves”.
FM approved to Class No. 7400 “Liquid and Gas Safety Shutoff
Valves” J.I.2X2A8.AF Class 7411 (3/8” thru 3/4” only)
AGA - ANSI Z21.21-CGA 6.5 Class 3371 83 “Automatic Valves
for Gas Appliances” Certificate 109157-0000-000014.
CGA - ANSI Z21.21-CGA 6.5 Class 3371 03 “Automatic Valves
for Gas Appliances” Certificate 109157-0000-000014.
CGA - C/I (3.9) Class 3371 04 “Automatic Safety Shutoff Gas
Valves” Certificate 109157-0000-000014.
CSA Standard C22.2 No. 139, “Electrically Operated Valves”
Certificate 109157-0000-000014.
Valve Parts in Contact with Fluids
Body Aluminum
Seals and Disc NBR
Washer 302 Stainless Steel
Core Tube 304L Stainless Steel
Core and Plugnut 430F Stainless Steel
Core Guide PTFE
Springs 302F Stainless Steel
Shading Coil Copper
Pipe Plug Zinc Plated Steel
Standard
Coil and
Class of
Insulation
Watt Rating and
Power Consumption
Spare Coil Part No.
General Purpose
DC
Watts
AC
24/60
120/60
110/50
240/60
220/50
Watts
VA
Holding
VA
Inrush
F - 17.5 30 168 CS5AF01A18 CS5AF02A18 CS5AF04A18
Standard lead length 18"
