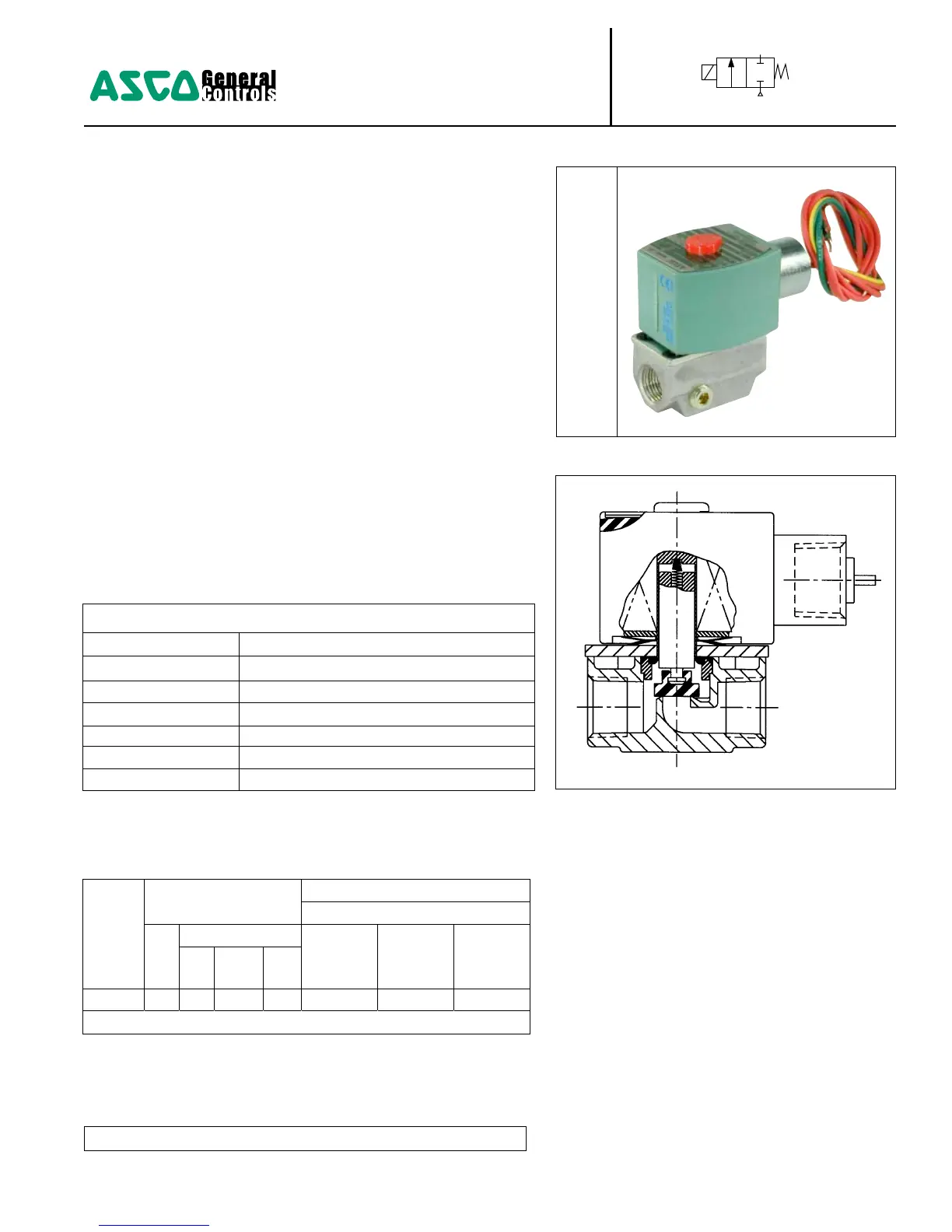

Features
• 2 way normally closed operation.
• For gas pilot control of commercial and industrial gas burners.
• Direct lift with resilient soft seating for tight shut-off.
• Valves provided with
1
/
8
” NPT down stream pipe tap with
plug for routine testing.
• Suitable for ambient temperatures up to 175˚F.
Direct Acting
Pilot Gas Shutoff Valves
1/8" to 3/8" NPT
2/2
SERIES
SV311
Solenoid Enclosures
Construction
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X with 1/2” conduit hub.
Electrical
Specifications
Fluid Handled: Fuel Gas
Fluid Temperature: -40˚F to 175˚F (-40˚ to 80˚C)
Ambient Temperature: -40˚F to 175˚F (-40˚ to 80˚C)
Installation: Mountable in any position
Approvals:
UL listed Shutoff Valve; Guide No.YIOZ (File MP-932) to
standard UL 429; “Electrically Operated Valves”.
FM approved to Class No. 7400 “Liquid and Gas Safety Shutoff
Valves”.
AGA - ANSI Z21.21-CGA 6.5 Class 3371 83 “Automatic Valves
for Gas Appliances” Certificate 150281 (LM112872-2)
CGA - ANSI Z21.21-CGA 6.5 Class 3371 03 “Automatic Valves
for Gas Appliances” Certificate 150281 (LM112872-2)
CGA - C/I (3.9) Class 3371 04 “Automatic Safety Shutoff Gas
Valves” Certificate 150281 (LM112872-2)
CSA Standard C22.2 No. 139, “Electrically Operated Valves”
Class 3221 01, File LR 702258
CE - EMC (Electromagnetic Compatibility) 89/336/EEC,
Low Voltage 72/23/EEC
^
#
!
%
@
Valve Parts in Contact with Fluids
Body Aluminum
Seals and Disc NBR
Core Tube 305 Stainless Steel
Core and Plugnut 430F Stainless Steel
Springs 302 Stainless Steel
Shading Coil Copper
Pipe Plug Zinc Plated Steel
Standard
Coil and
Class of
Insulation
Watt Rating and
Power Consumption
Spare Coil Part No.
General Purpose
DC
Watts
AC
24/60
120/60
110/50
240/60
220/50
Watts
VA
Holding
VA
Inrush
F -- 6.1 16 40 238210-005-D 238210-032-D 238210-058-D
Standard lead length 18" (72" leads optional - change suffix "D" to "K")
