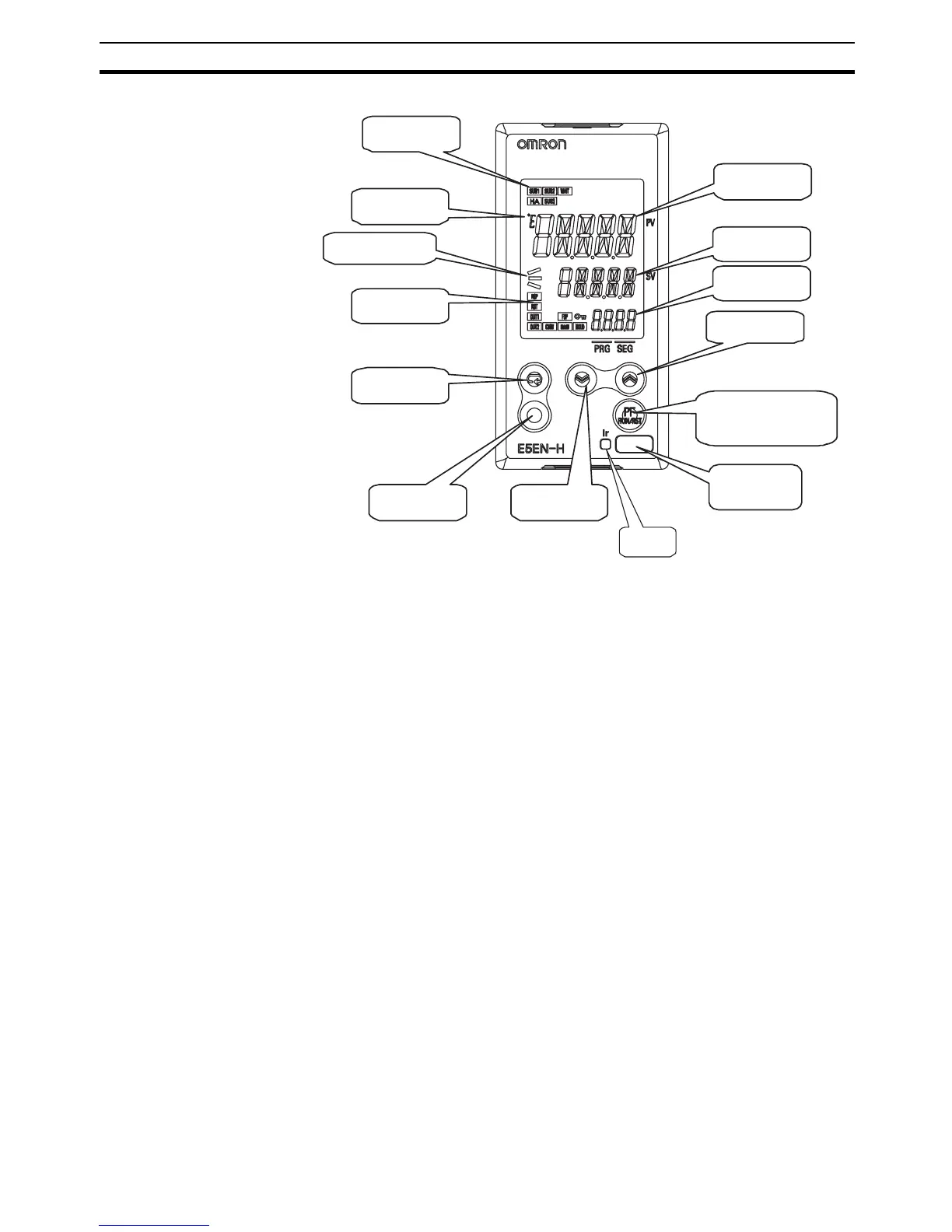

Names of Parts Section 1-1
E5EN-HT
1-1-2 Explanation of Indicators
No. 1 Display Displays the process value or parameter name.
Lights for approximately one second during startup.
No. 2 Display Displays the set point, parameter operation read value, or the variable input
value.
Lights for approximately one second during startup.
The SP display will flash during auto-tuning.
No. 3 Display
(E5AN/EN-HT Only)
Displays the program number and segment number, etc.
Lights for approximately one second during startup.
Operation Indicators
1,2,3... 1. SUB1 (Sub 1)
Lit while the function set for the Auxiliary Output 1 Assignment parameter
is ON.
SUB2 (Sub 2)
Lit while the function set for the Auxiliary Output 2 Assignment parameter
is ON.
SUB3 (Sub 3)
Lit while the function set for the Auxiliary Output 3 Assignment parameter
is ON.
2. HA (Heater Burnout, Heater Short Alarm, Heater Overcurrent Detection
Output Display)
Lights when a heater burnout, heater short alarm, or heater overcurrent
occurs.
No. 1 display
No. 2 display
Mode Key
Up Key
Level Key
Down Key
Temperature
unit
Operation
indicators
Operation
indicators
No. 3 display
Ir
Program Status
Indicators
PF Key
Run/Reset Key
Infrared
Communications
Light Receiver
