OPERATION
109

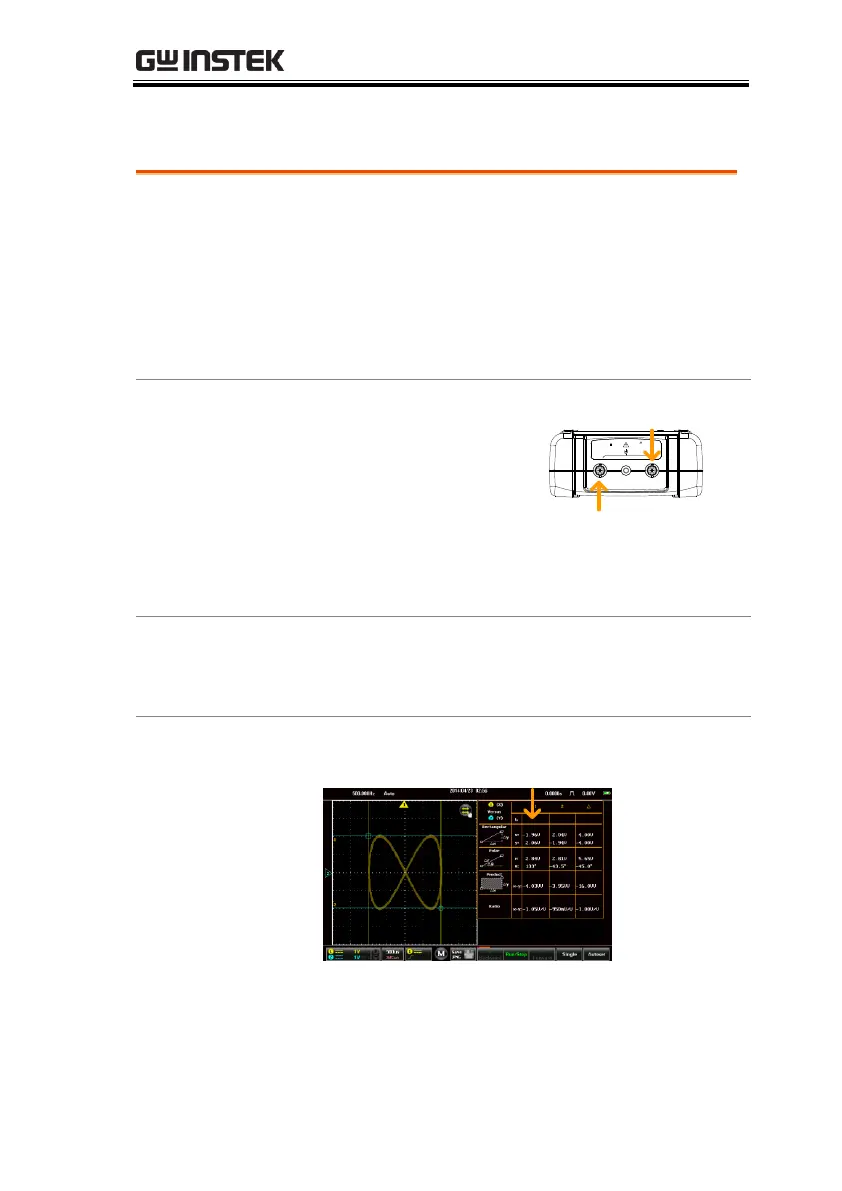

Show Waveform in XY Mode
Background
The XY mode maps the input of channel 1 to
the input of channel 2. This mode is useful for
observing the phase relationship between
waveforms.
XY mode can also be used with cursors, see
page 83 to turn cursors on.
Connection
1. Connect channel 1 to
the X-axis source.
M
W
16.5pF
300Vrms MAX.
1
1 2
CAT 300V
CH2, Y-axis
CH1, X-axis
2. Connect channel 2 to
the Y-axis source.
3. Activate both channel 1 and
channel 2.
Page 41
Steps
1. From the Acquire menu toggle XY mode on.
1. The X-Y mode will appear.
Example
X-Y
waveform
X-Y cursor
measurements
