GW Instek GDS-207 - Saving and Configuring Image Files

OPERATION
125
Saving and Configuring Image Files
Background
Image files can be saved to the internal memory
in a number of file formats. Custom notes can
also be saved with the image file. The brief
mode allows Custom notes can also be attached
to image files or on-screen items such as
automatic measurements and trigger positions
can be saved as extra data in the image file
using the Brief Mode.
Image File Items
Destination
Selects the save file destination.
File Format
Selects the image file format.
Brief Mode
Embeds data into the image file.
Note
Saves a note with the same
filename as the image file is
corresponds to.
Save Image

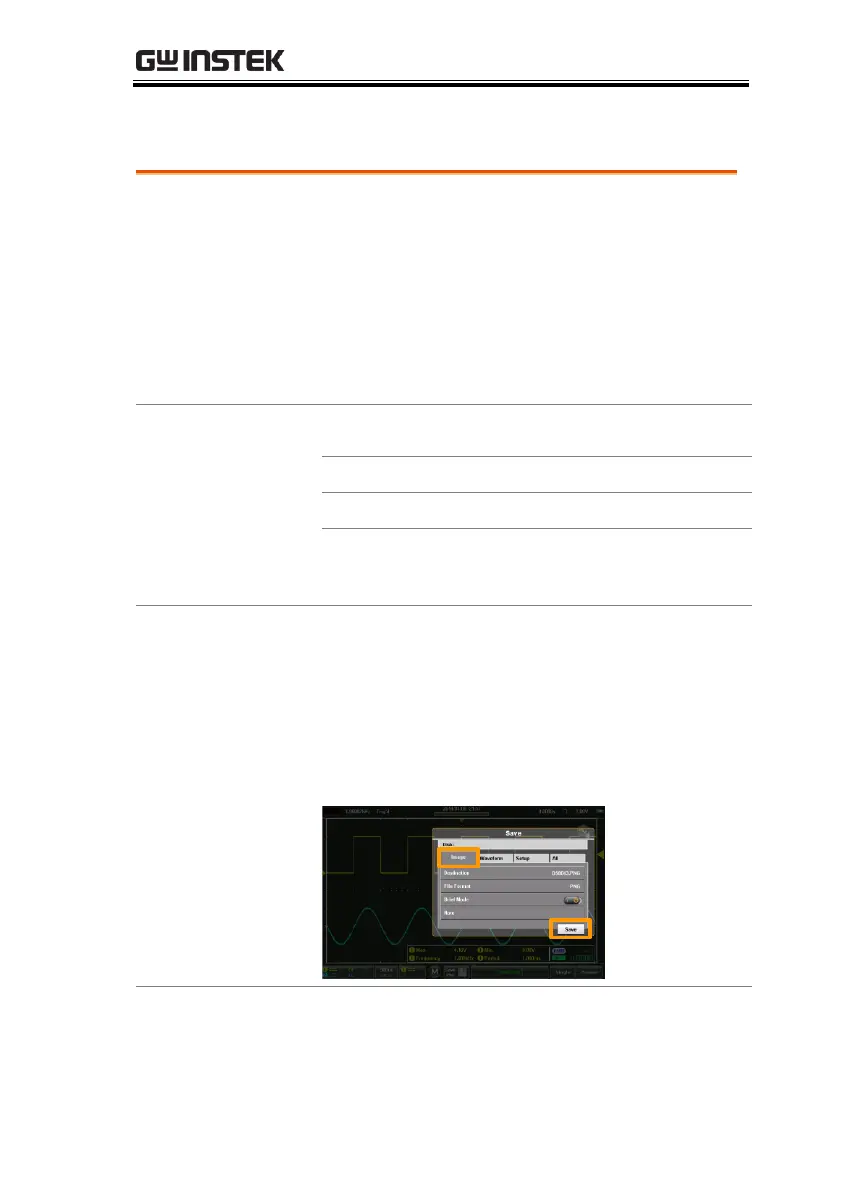

1. From the Save menu, press the Image tab.
2. To save, press the Save button at the bottom of
the image tab.
The file will be saved into the configured file
path. See below for the configuration details.
tab
Save
button
Destination
3. Press Destination to set the save file destination.
There are two options:
