Set the Record Length
Background
The number of samples that can be stored is set
by the record length. Record length is
important in an oscilloscope as it allows longer
waveforms to be recorded and/or allows
higher sampling rates to be achieved when
equivalent time sampling is used.
Record Length
1k
10k
100k
1M
5M
30,000 waveforms max
3,000 waveforms max
300 waveforms max
20 waveforms max
4 waveforms max
Steps
From the Acquire menu, press Record Length
and select the record length.
Record Length
1k, 10k, 100k, 1M, 5M

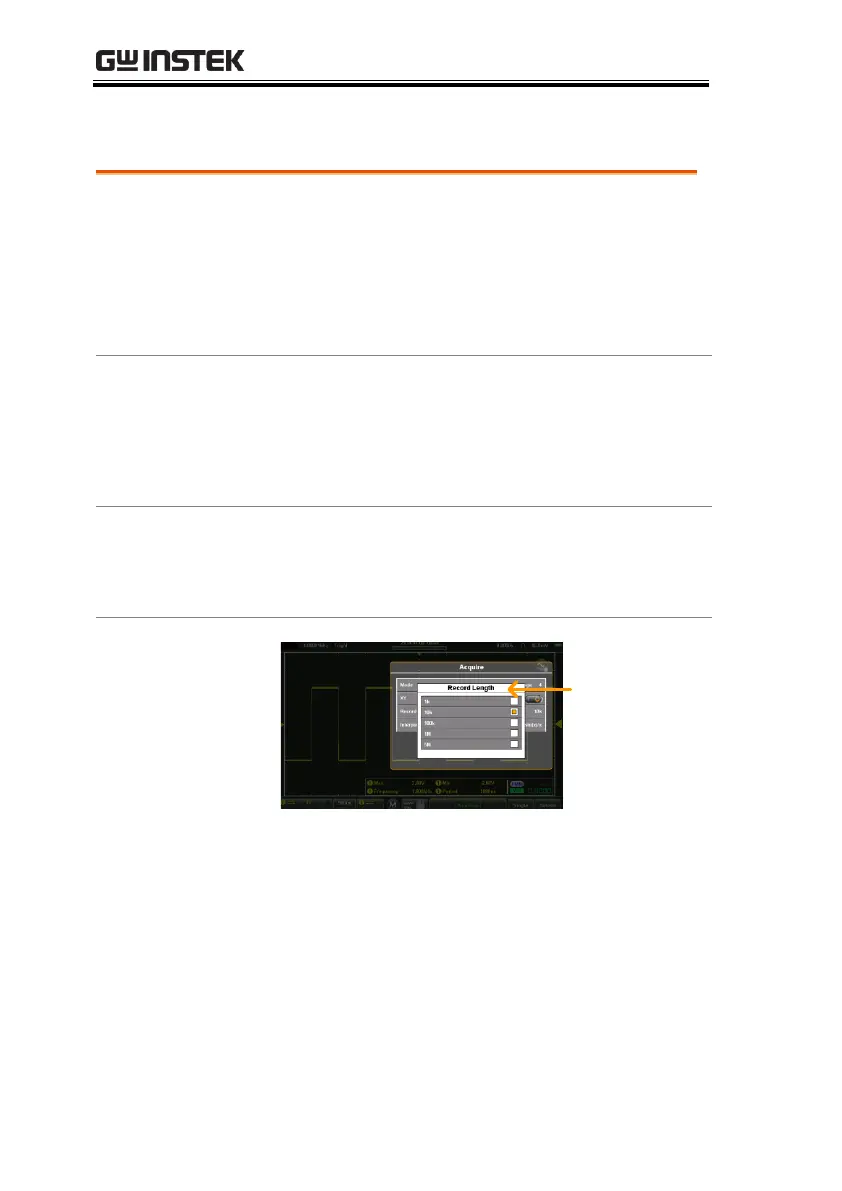

Example
Record
Length
menu
