Horizontal Position
Background
The horizontal scale and position can be
configured in the Horizontal menu in addition
to the using the touch gestures.
Menu Control
1. Press the Horizontal key to access the
Horizontal menu.
2. Press Main to set the scope to the main window
mode.

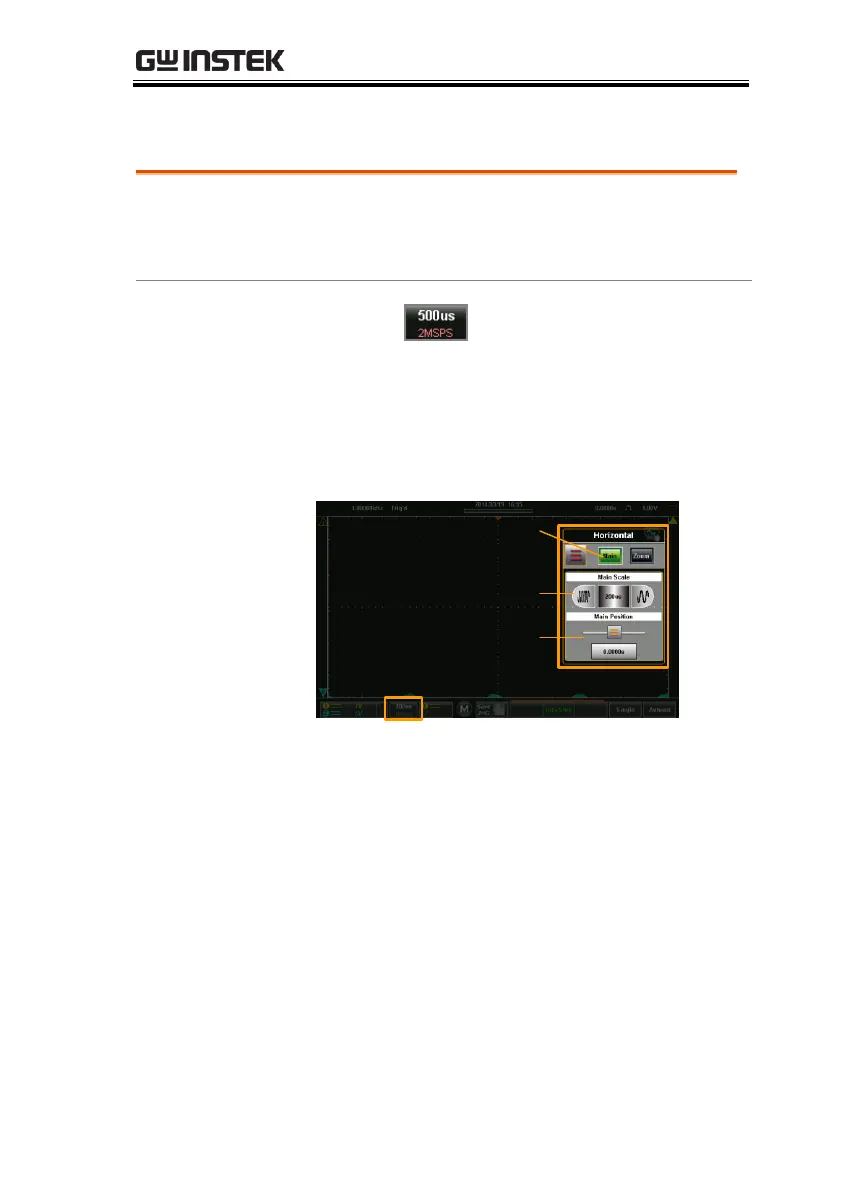

Horizontal menu
Horizontal icon
Horizontal scale
Horizontal position
Main window mode
3. From the Main horizontal menu the horizontal
scale and position can be configured.
4. Use the scale picker to set the horizontal scale.
5. Use the position slider to set the horizontal
position.
6. To set the horizontal position to 0, drag from
the Horizontal Position key and drop to the
“Set to 0” option.
