GDS-200 & GDS-300 Series User Manual
160

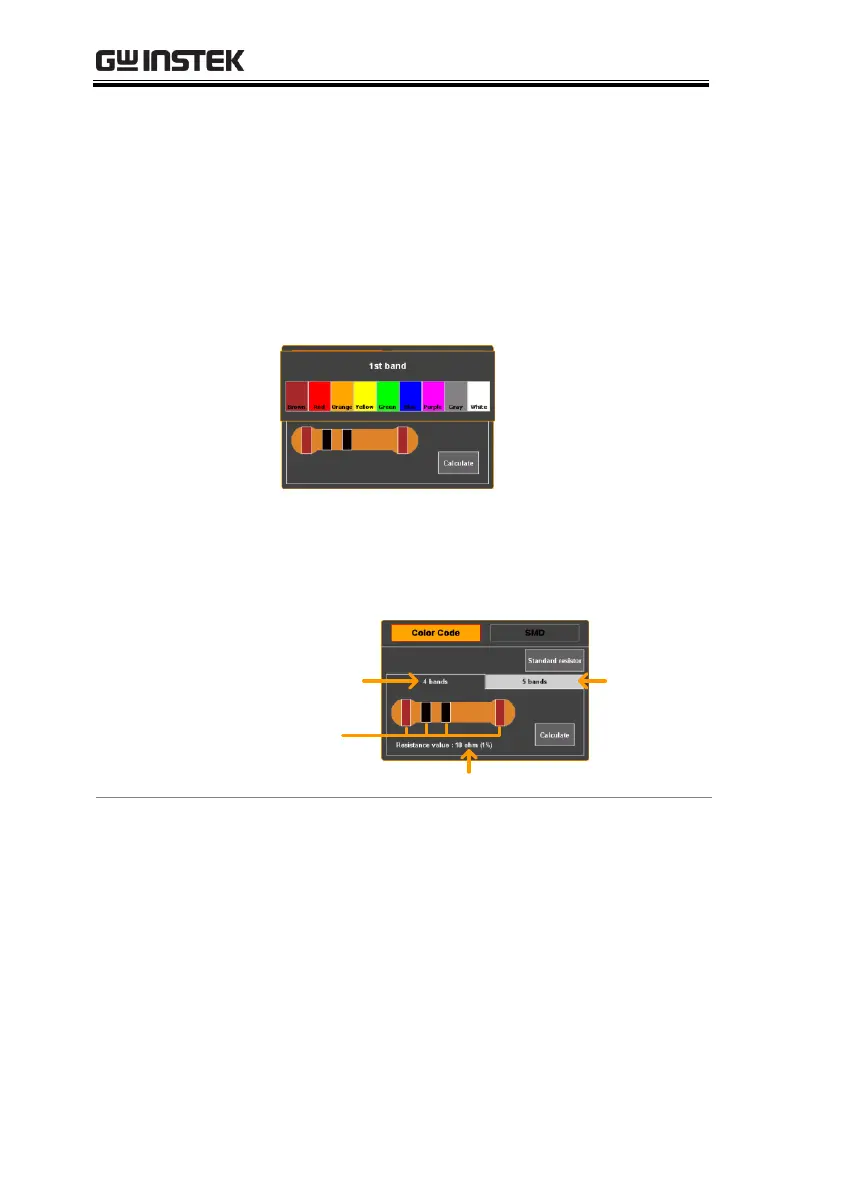

2. Press the Color Code button for standard pin-
type resistors.
3. Select the 4 band or 5 band tab.
4. Press each of the colored bands in succession
and choose the appropriate color for each band
from the pop-up window.
5. Press Calculate to calculate the value of the
resistor.
Color
bands
Color code button
4 bands 5 bands
Calculate
button
Resistance value
1. SMD resistor values can be calculated in one of
3 ways; using a 3 or 4 digit code, using EIA-96
code or using 2%/5%/10% code.
2. Press the SMD button to select SMD resistors.
3. Select the tab corresponding to code used on
the SMD.
