GDS-2000A Series User Manual
114

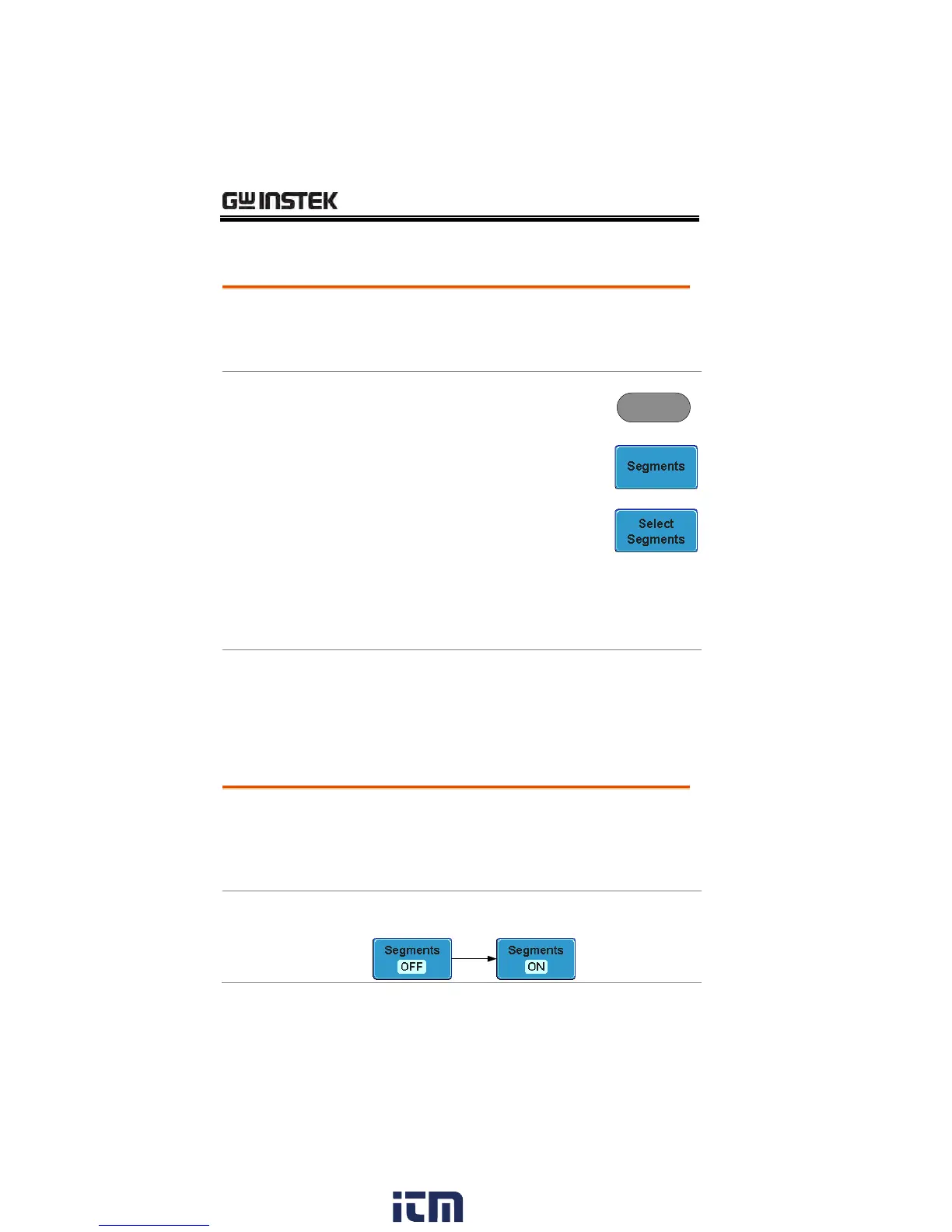

Set the Number of Segments
Note
Before the Segment function can be used, set the
trigger settings as appropriate for the signal you
wish to use.
Panel Operation
1. Press the Acquire key.
Acquire
2. Press Segments on the bottom
menu.
3. Press Select Segments and set the
number of segments from the side
menu.
Num of Seg
1~2048
Set to Maximum
Sets to 0 segments
Set to Minimum
Sets to 2048 segments
Note
The Select Segments icon is only available when
when Segments = OFF or when Segments is in the
STOP mode (see the section below).
Run Segmented Memory
Background
Before the Segmented Memory function can be
used, set the trigger settings as appropriate for the
signal you wish to use. See page 144 for
configuring the trigger settings.
Run Segments
1. Toggle Segments On from the bottom menu.
