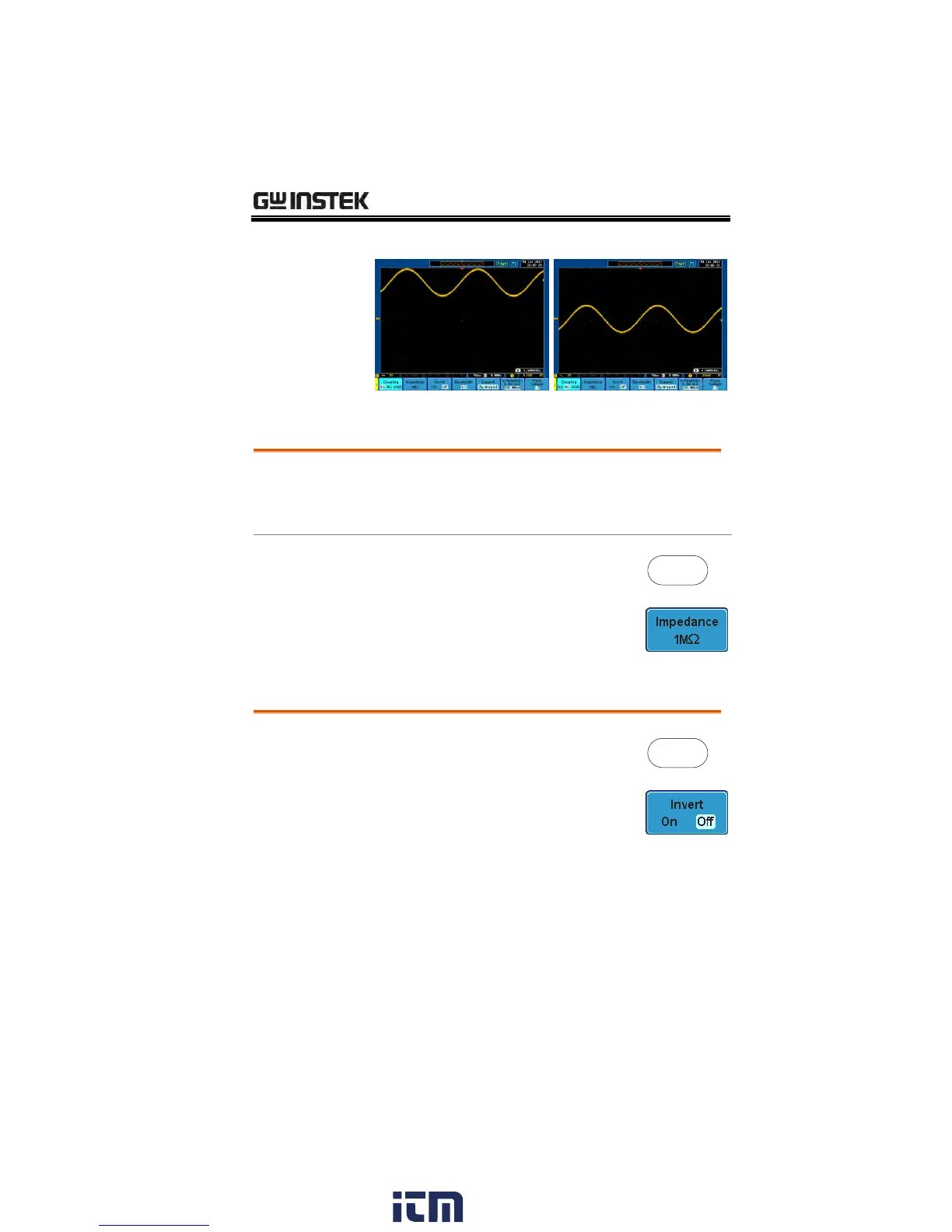

GW Instek GDS-2072A - Input Impedance; Invert Waveform Vertically

CONFIGURATION
139
DC coupling
AC coupling
Input Impedance
Background
The input impedance of the GDS-2000A is fixed at
1MΩ. The impedance is displayed in the channel
menu.
View Impedance
1. Press the Channel key.
CH1
2. The impedance is displayed in the
bottom menu.
Invert Waveform Vertically
Panel Operation
1. Press the Channel key.
CH1
2. Repeatedly press Invert to toggle
Invert On or Off.
