GW Instek GDS-2072A - Automatic Measurement

GDS-2000A Series User Manual
72
Automatic Measurement
The automatic measurement function measures and updates major
items for Voltage/Current, Time, and Delay type measurements.
Measurements can be made with both the analog channels and the
digital channels*, however the digital channels are only limited to a
select number of time measurements. *Logic analyzer option
needed for digital channels.

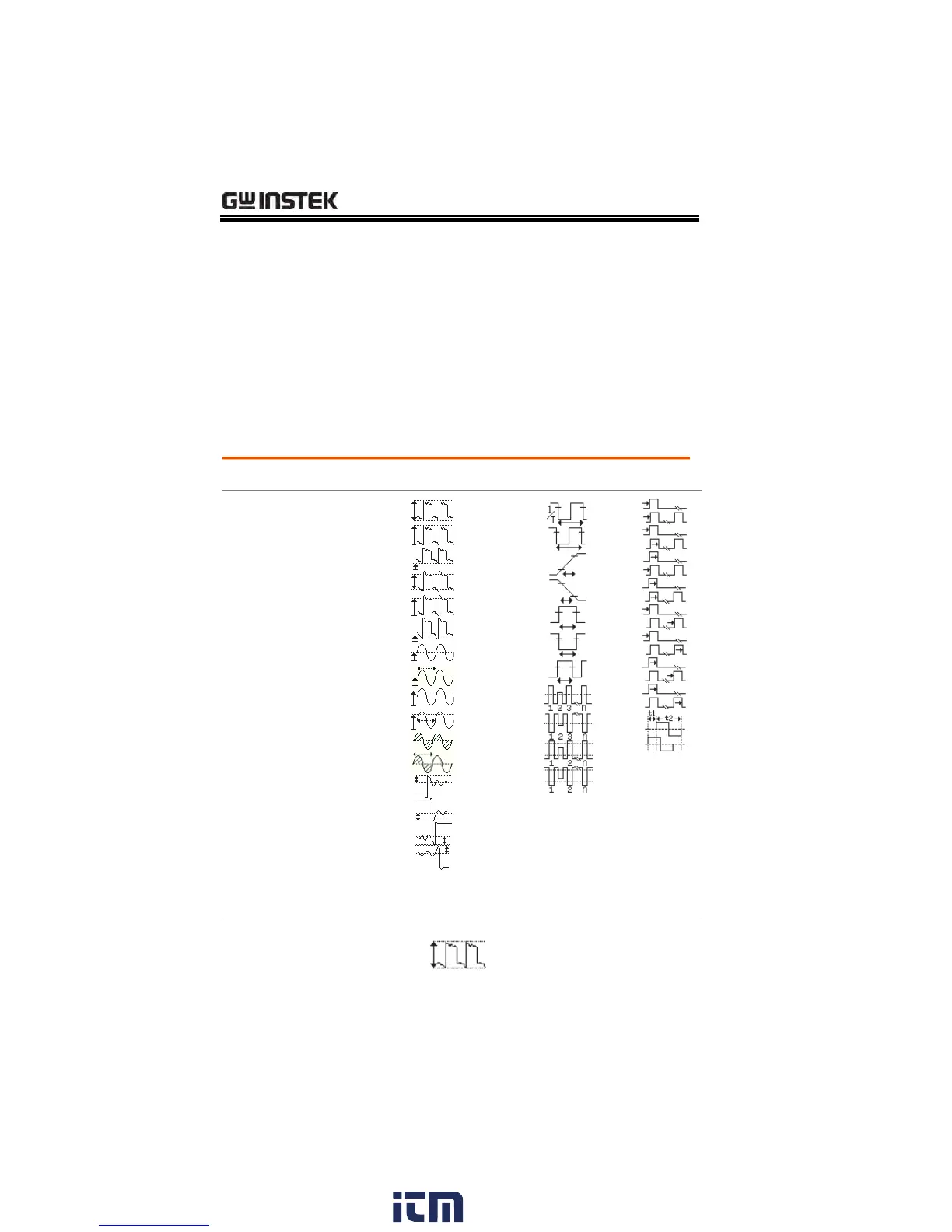

Measurement Items
V/I Measurements
Time Meas.
Delay Meas.
Overview
FPREShoot
RPREShoot
FOVShoot
ROVShoot
Cycle Area
Area
Cycle RMS
RMS
Cycle Mean
Mean
Low
High
Amplitude
Min
Max
Pk-Pk
Frequency*
Dutycycle*
-Width*
+Width*
FallTime
RiseTime
Period*
-Edges
+Edges
-Pulses
+Pulses
FRR
FRF
FFR
Phase
LFF
LFR
LRF
LRR
FFF
*The logic analyzer option is needed to use the digital
channels for these automatic measurements.
Voltage/Current
Measurement
Pk-Pk
(peak to
peak)
Difference between positive
and negative peak.
(=max − min)
