GDS-2000A Series User Manual
66
Default Setup
To activate the default state,
press Default.
Default
Autoset
Background
The Autoset function automatically configures the
panel settings to position the input signal to the
best viewing condition. The GDS-2000A
automatically configures the following parameters.
 Horizontal scale
 Vertical scale
 Trigger source channel
There are two operating modes for the Autoset
function: Fit Screen Mode and AC Priority Mode.
Fit Screen Mode will fit the waveform to the best
scale, including any DC components (offset). AC
priority mode will scale the waveform to the
screen by removing any DC component.
Panel Operation
1. Connect the input signal to the
GDS-2000A and press the Autoset
key.
Autoset

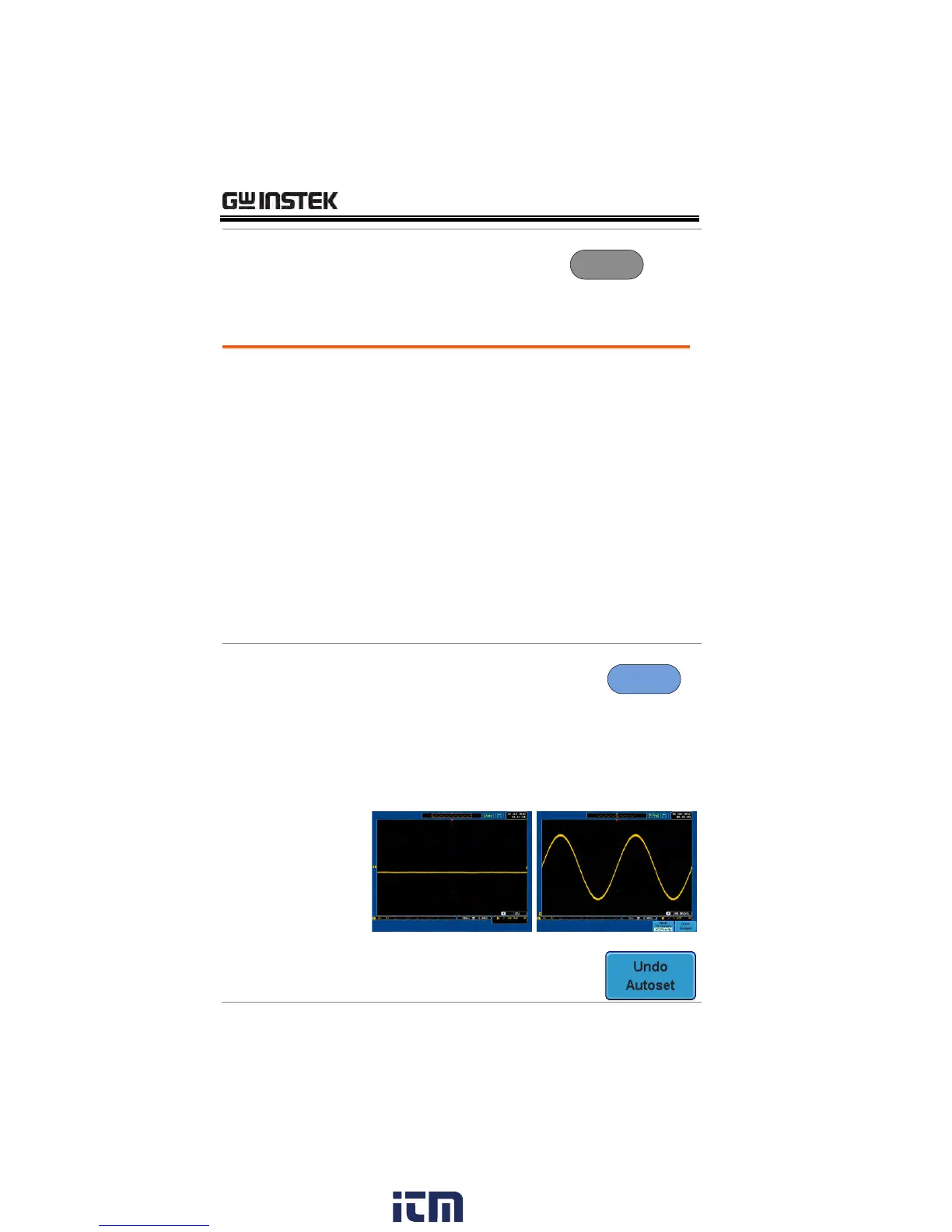

2. The waveform appears in the center of the
display.
Before
After
3. To undo Autoset, press Undo
Autoset from the bottom menu.
