GDS-2000A Series User Manual
236

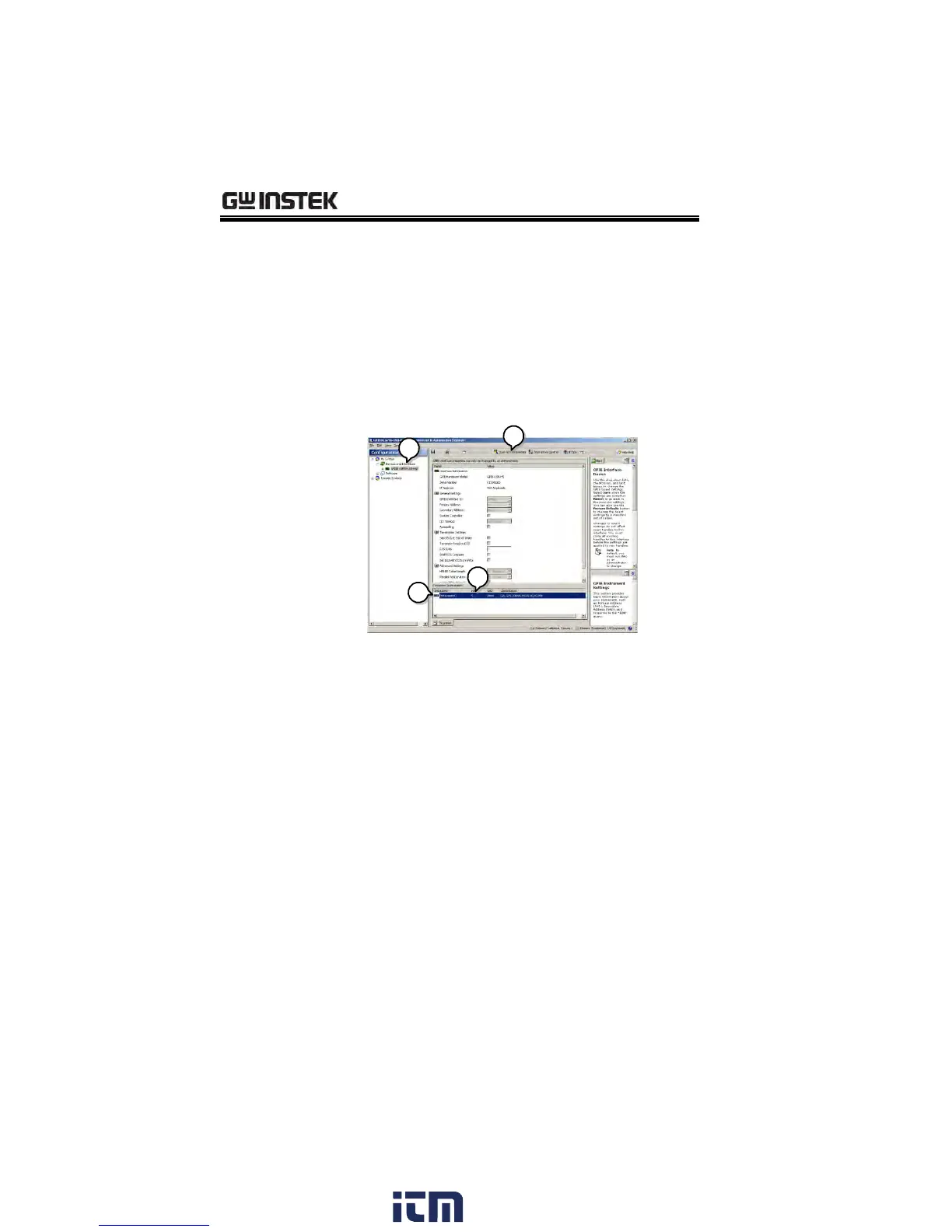

3. Press the Scan for Instruments button.
4. In the Connected Instruments panel the GDS-
2000A should be detected as Instrument 0 with
the address the same as that configured on the
GDS-2000A.
5. Double click the Instrument 0 icon.
6. Click on Communicate with Instrument.
7. In the NI-488.2 Communicator window, ensure
*IND? is written in the Send String: text box.
Click on the Query button to send the *IDN?
query to the instrument.
8. The String Received text box will display the
query return:
GW, GDS-2XXXX,PXXXXXX,V1.XX
(manufacturer, model, serial number, version)
