OVERVIEW

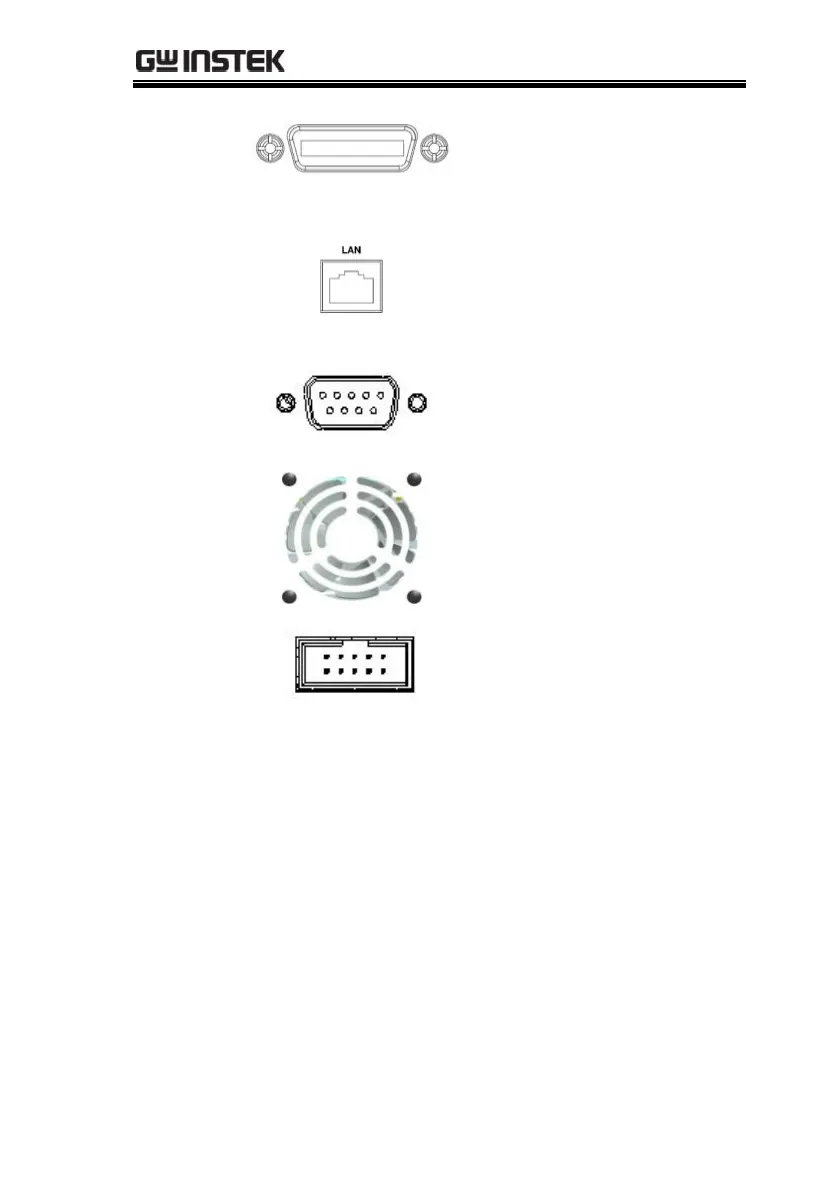

25
GPIB port
GPIB slave port for re
mote
control. Abides to
IEEE488.2
(SCPI) protocol.
See page
102 for details.
LAN port
LAN port for re
mote
control. See page
103
for
LAN setting and opera
tion
details.
RS 232 port
RS232 port
for remote
control. See
page
99
for
details.
Heat sink
fan
C
ontrol I/O
port
5 ports in all for
input/output c
ontrol. See
page
80
for deta
ils of
configuration.
24
26
Table of Contents
Table of Contents
3
Safety Instructions
6
Safety Symbols
6
Safety Guidelines
7
Power Cord for the United Kingdom
10
Overview
11
Introduction
12
Key Features
15
Front Panel
17
Rear Panel
24
Constant Voltage/Constant Current Crossover Characteristics
26
Getting Started
27
Start up
28
Load Connection
29
Turning the Output On/Off
31
Basic Operation
33
Display Change
33
Source Function
36
Independent Output Mode
41
Tracking Series and Tracking Parallel Modes
43
Load Function
46
Sequence Function
50
Set Sequence Output
51
Set Group Parameter
53
Construct Templet
55
Menu Tree
58
Save and Recall
60
Delay Function
63
Set Delay Output
63
Set Group Parameter
66
Menu Tree
68
Save and Recall
71
Monitor Function
73
Set Monitor
74
Recorder Function
76
Set Recorder
77
Enternal I/O Control
80
Key Function Description
82
File Operation
85
Save/Recall
85
Restore Factory Default Settings
88
System Settings
89
System Information
90
System Settings
91
Firmware Upgrading
93
Description of Using Flash Drive
94
Remote Control
96
Connection Usage
98
Usb
100
Gpib
102
Lan
103
Command Syntax
109
Command List
113
Measurement Instructions
113
Display Functions
113
Output Commands
113
Source and Load Commands
114
Status Commands
119
System Commands
120
System Related Commands
121
IEEE488.2 Common Commands
121
Command Details
123
Measurement Commands
123
Display Commands
125
Output Commands
127
Source and Load Commands
131
Status Commands
174
System Commands
180
System Related Commands
189
SCPI Status Registers SCPI
190
Event Registers
192
Enable Registers
192
Status Byte Register
192
Standard Event Register
194
Status Byte Register Commands
195
Standard Event Register Commands
196
Other Status Register Commands
198
Errors
199
Error Message
199
Command Errors
199
Appendix
203
Replacing the Fuse
203
Specifications
204
Optional Accessories
207
Declaration of Conformity
208
