6
Mounting bracket kit

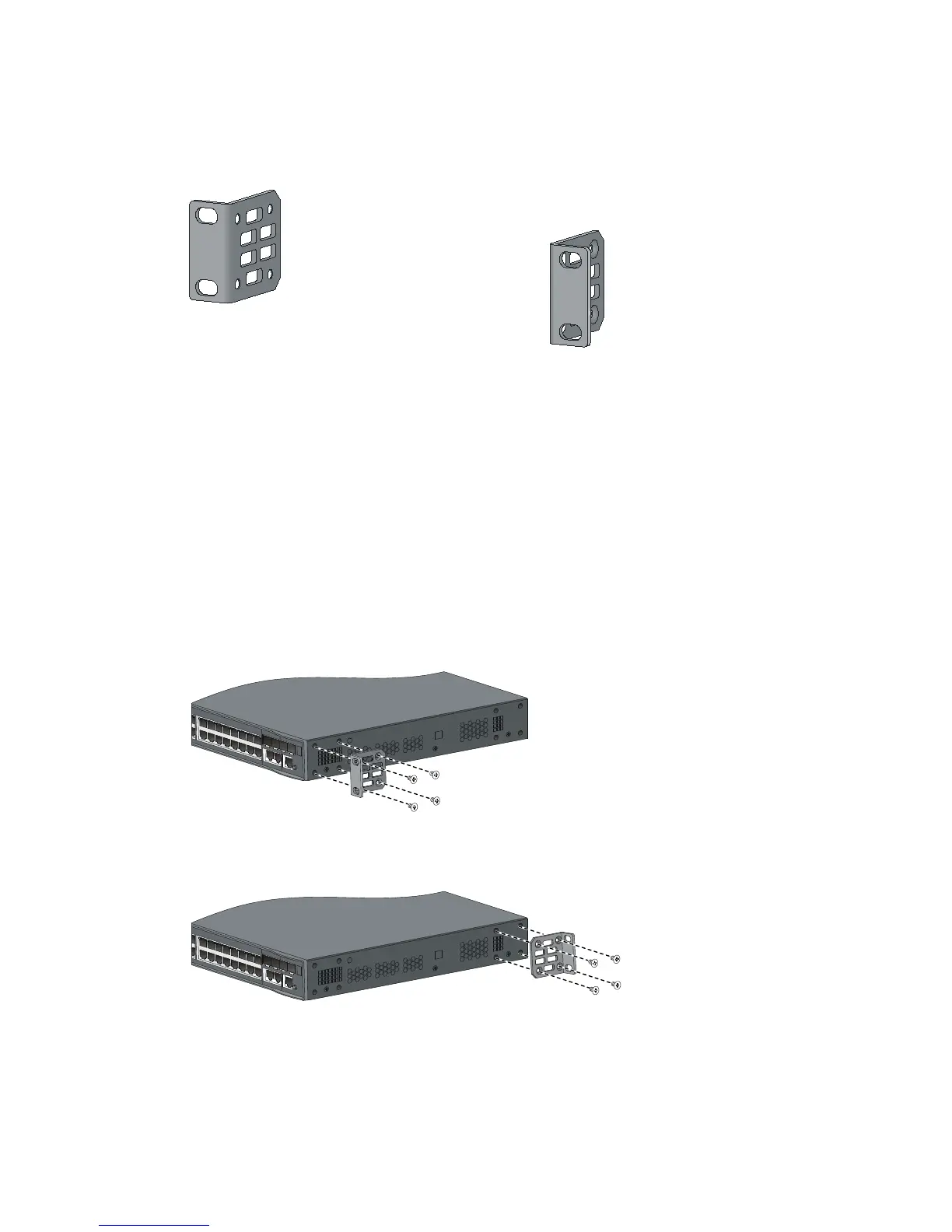

Figure 4 Mounting bracket kit
Attaching the mounting brackets to the switch
The S3100V2-52TP switch provides one front mounting position and one rear mounting position. You can
install the mounting brackets as needed.
Step1 Wear an ESD-preventive wrist strap, and make sure that the wrist strap makes good skin contact and is
well grounded.
Step2 Align one mounting bracket with the screw holes in the mounting position on one side.
Step3 Use M4 screws (shipped with the switch) to fix the mounting bracket to the switch chassis (see Figure 5
or Figure 6).
Figure 5 Attach the mounting brackets to the switch (front mounting)
Figure 6 Attach the mounting brackets to the switch (rear mounting)
Rack-mounting an S3100V2-52TP switch
Step1 Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.
