Powering on the switch for the first time
Setting up the configuration environment
To set up the configuration environment, connect a terminal (a PC in this example) to the console port on
the switch with a console cable.

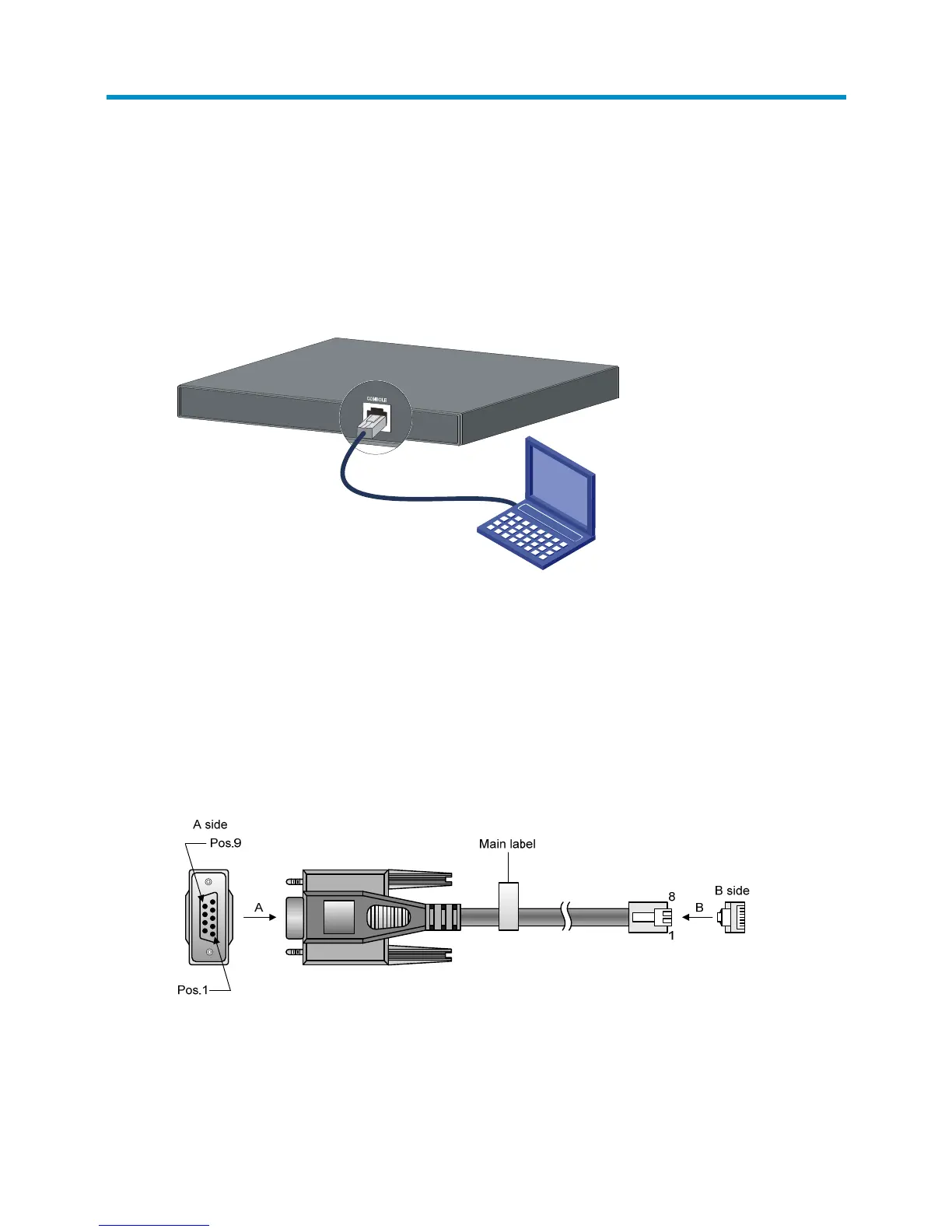

Figure 16 Network diagram for configuration environment setup
Connecting the console cable
Console cable
A console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one end for connecting
to the console port of the switch, and a DB-9 female connector at the other end for connecting to the
serial port on the console terminal.
Figure 17 Console cable
Connection procedure
Follow these steps to connect a terminal device to the switch by using the console cable:
Step1 Plug the DB-9 female connector to the serial port of the console terminal or PC.
