2-19
(17) Copper management Ethernet port LED (ACT)
(18) System status LED (SYS)
(19) Copper management Ethernet port LED (LINK)
The ESN serial number and MAC address of the S9850-32H switch can be found on the serial label
pull tab.
The S9850-32H switch comes with power module slot PWR1 empty and power module slot PWR2
installed with a filler panel. You can install one or two power modules for the switch as needed. In
Figure2-14, two LSVM1AC650 power modules are installed in the power module slots.
The S9850-32H switch comes with the five fan tray slots empty. You must install five fan trays of the
same model for the switch. In Figure2-14, five LSWM1FANSA fan trays are installed in the fan tray
slots.
The S9850-32H switch supports shipping with fan trays and power modules installed. To purchase a
switch preinstalled with fans trays and power modules, contact marketing staff.

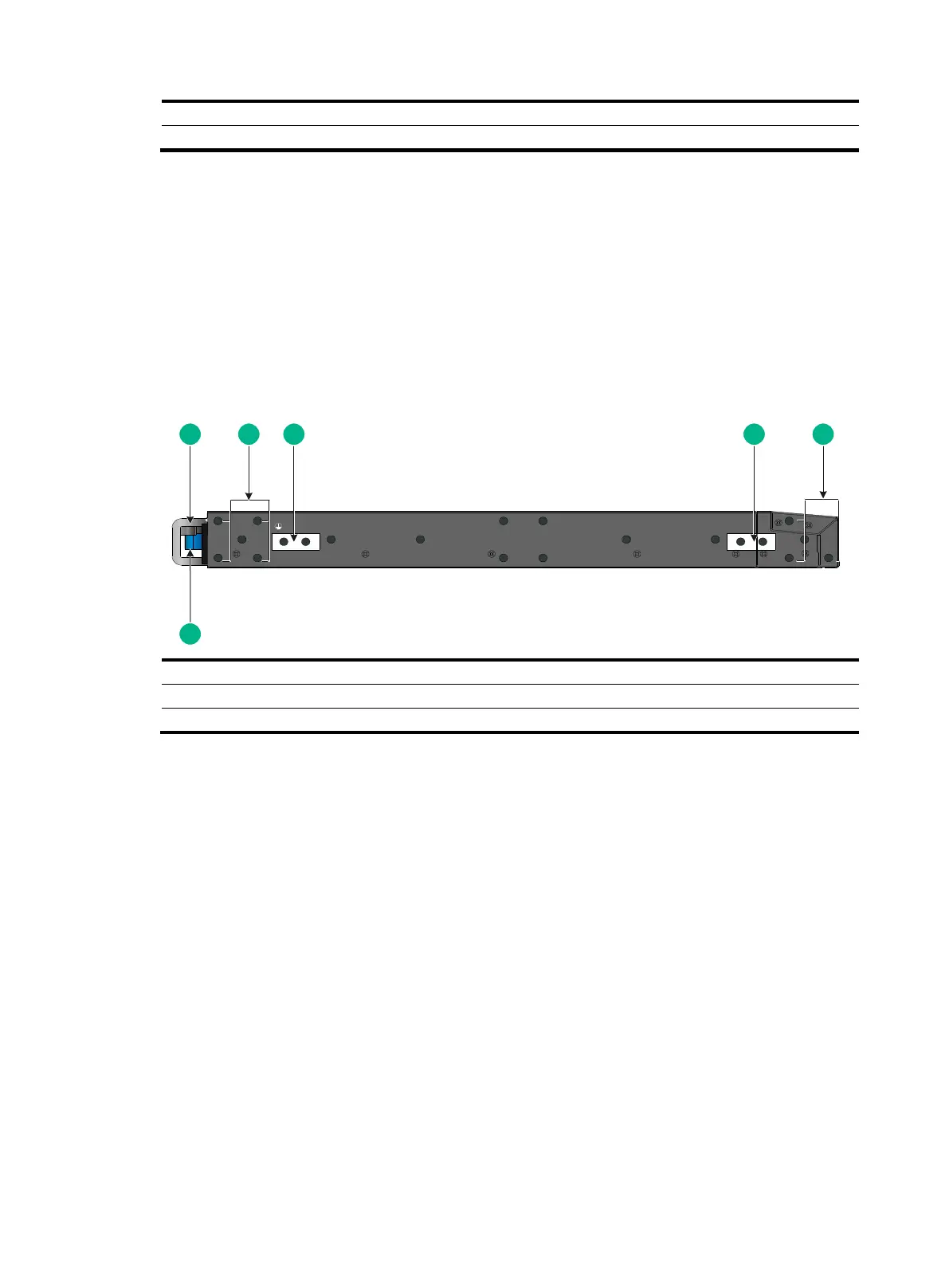

Figure2-15 S9850-32H left panel
(2) Chassis ear position at the power module side
(3) Primary grounding point
(4) Auxiliary grounding point
(5) Chassis ear position at the port side
