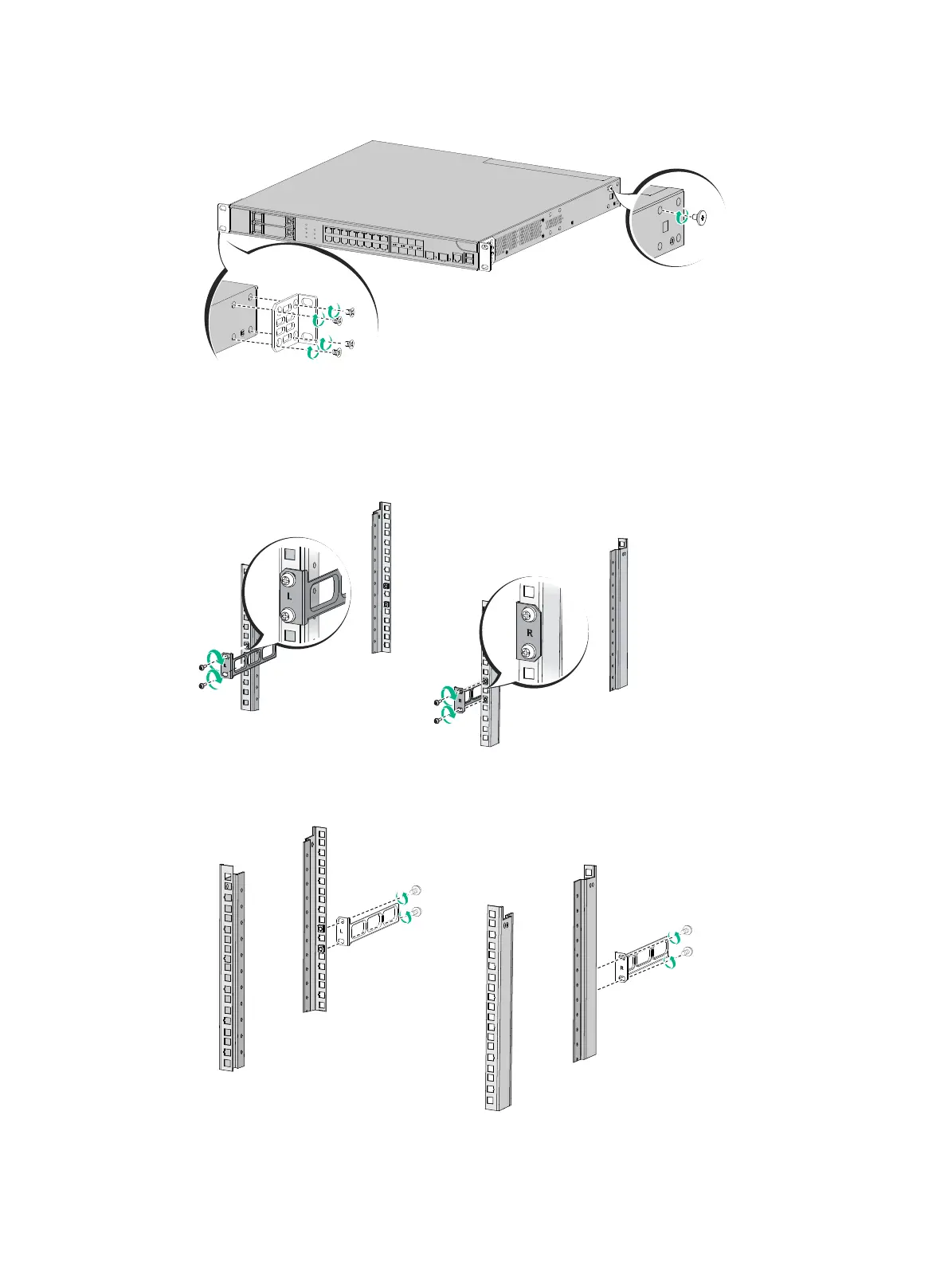

Figure 6 Attaching mounting brackets and shoulder screws to the firewall

6. Attach the rear mounting brackets to the rear rack posts.

Figure 7 Attaching the rear mounting brackets (with the wide flange inside the rack)

Figure 8 Attaching the rear mounting brackets (with the wide flange outside the rack)
