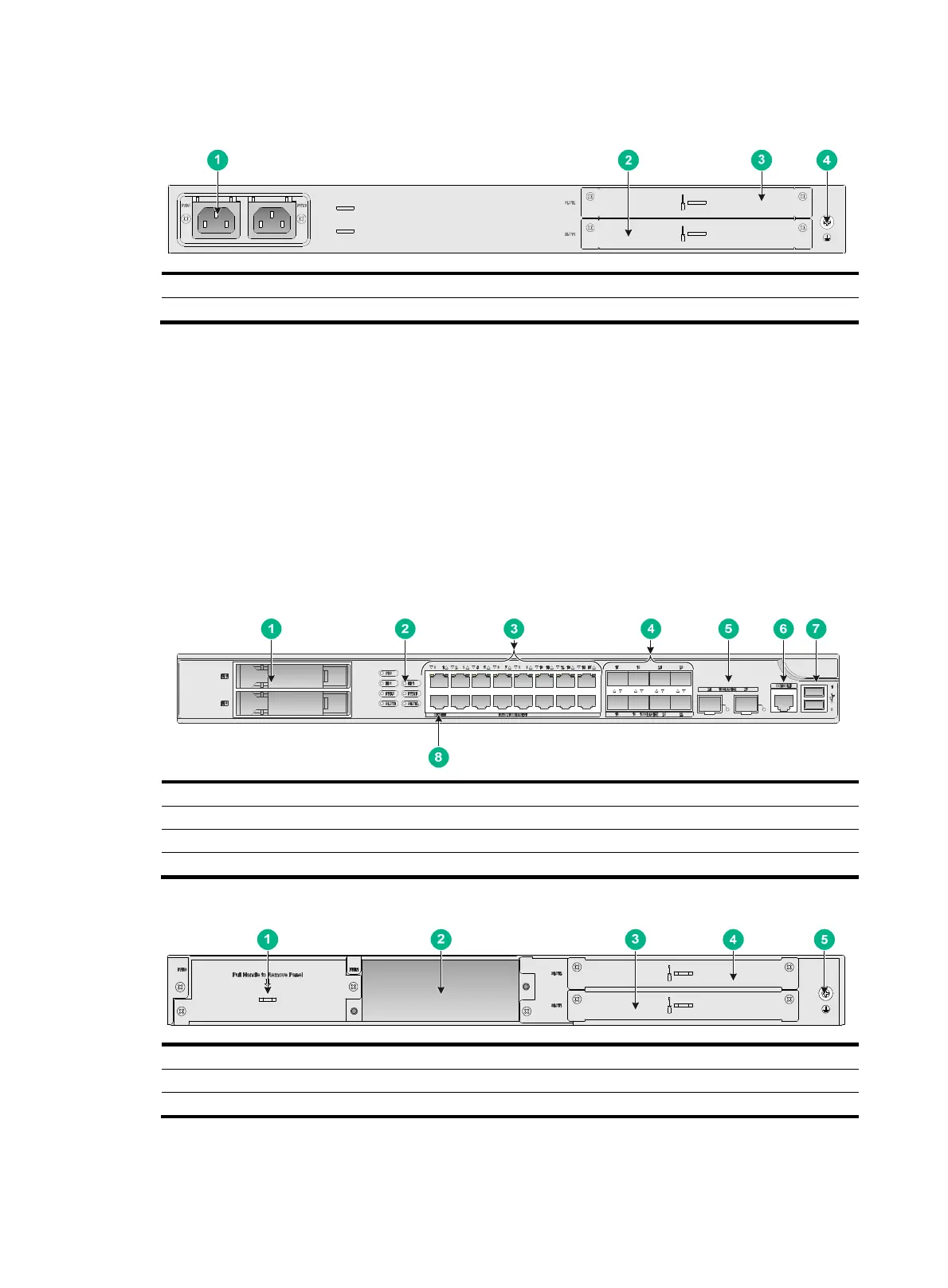

Figure 42 Rear panel
(1) Power receptacle (2) Interface module slot 1
(3) Interface module slot 2 (not supported) (4) Grounding screw
F1070/F1080
The F1070/F1080 firewall provides the following ports on the front panel:
• Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
• Eight 1000BASE-X fiber ports.
• Two 10GBASE-R fiber ports.
• Two USB ports.
• One console port.
• Two hard disk slots.
Figure 43 Front panel
(1) Hard disk slots (2) LEDs
(3) 10/100/1000BASE-T copper ports (4) 1000BASE-X fiber ports
(5) 10GBASE-R fiber ports (6) Console port
(7) USB ports (8) Management Ethernet port (0/MGMT)
Figure 44 Rear panel
(1) Power module slot 0 (2) Power module slot 1
(3) Interface module slot 1 (4) Interface module slot 2
(5) Grounding screw
