44
Table 10 displays the slots available for interface module installation.
Table 10 Interface module and device slot compatibility
Interface module F1020 F1030/F1050/F1060/F1070/F1080 F1090
NSQM1GT4PFC Slot 1
Slots 1 and 2
Slots 2 and 4
NSQM1TG4FBA Slot 1 Slots 1 and 2 Slots 2 and 4
NSQM1GP4FBA Slot 1 Slots 1 and 2 Slots 2 and 4
NS-NIM-TG6A Not supported Not supported Slots 1 and 3
NSQM1GT4PFC
The NSQM1GT4PFC interface module provides four 10/100/1000BASE-T Ethernet copper ports.
• When the firewall is operating correctly, the four ports operate as common data ports.
• When the firewall is powered off, the four ports are divided into two bypass port pairs with ports
0 and 1 in one pair and ports 2 and 3 in another pair. The two ports in a pair can act as the uplink
and downlink interfaces for a Layer 2 link and form a bypass link. This enables traffic to be
transmitted through the firewall even if the firewall is powered off and ensures service
continuity.

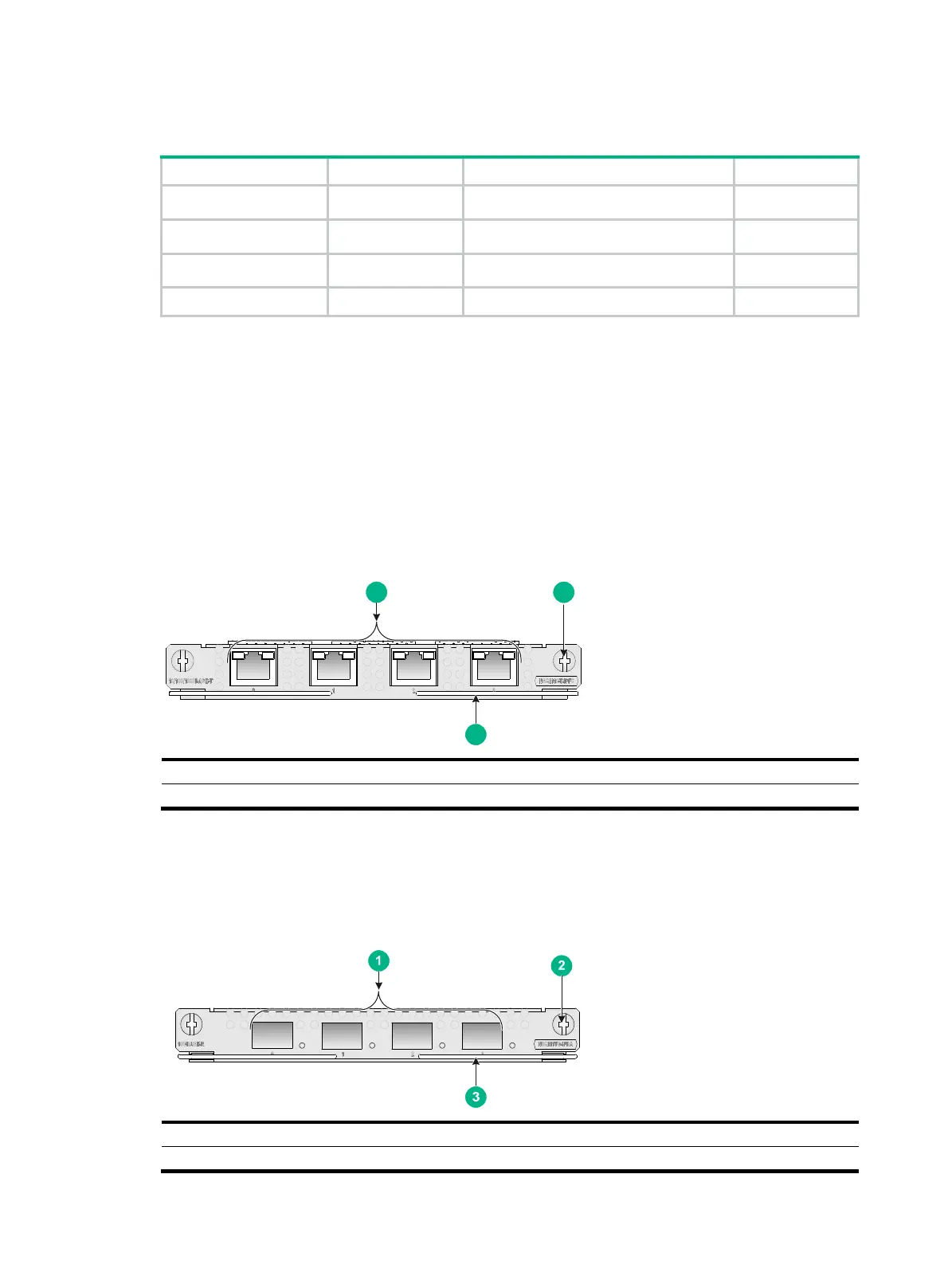

Figure 47 Front panel of the NSQM1GT4PFC interface module
(1) 10/100/1000BASE-T copper ports (2) Captive screw
(3) Ejector lever
NSQM1TG4FBA
The NSQM1TG4FBA interface module provides four 10GBASE-R fiber ports.
Figure 48 Front panel of the NSQM1TG4FBA interface module
(1) 10GBASE-R fiber ports (2) Captive screw
(3) Ejector lever
1 2
3
