43
F1090
The F1090 firewall provides the following ports on the front panel:
• Fourteen 10/100/1000BASE-T autosensing Ethernet copper ports.
• Eight 1000BASE-X fiber ports.
• Eight 10GBASE-R fiber ports.
• Two USB ports.
• One console port.
• One micro USB port.
• Two hard disk slots.
• Two management Ethernet ports.

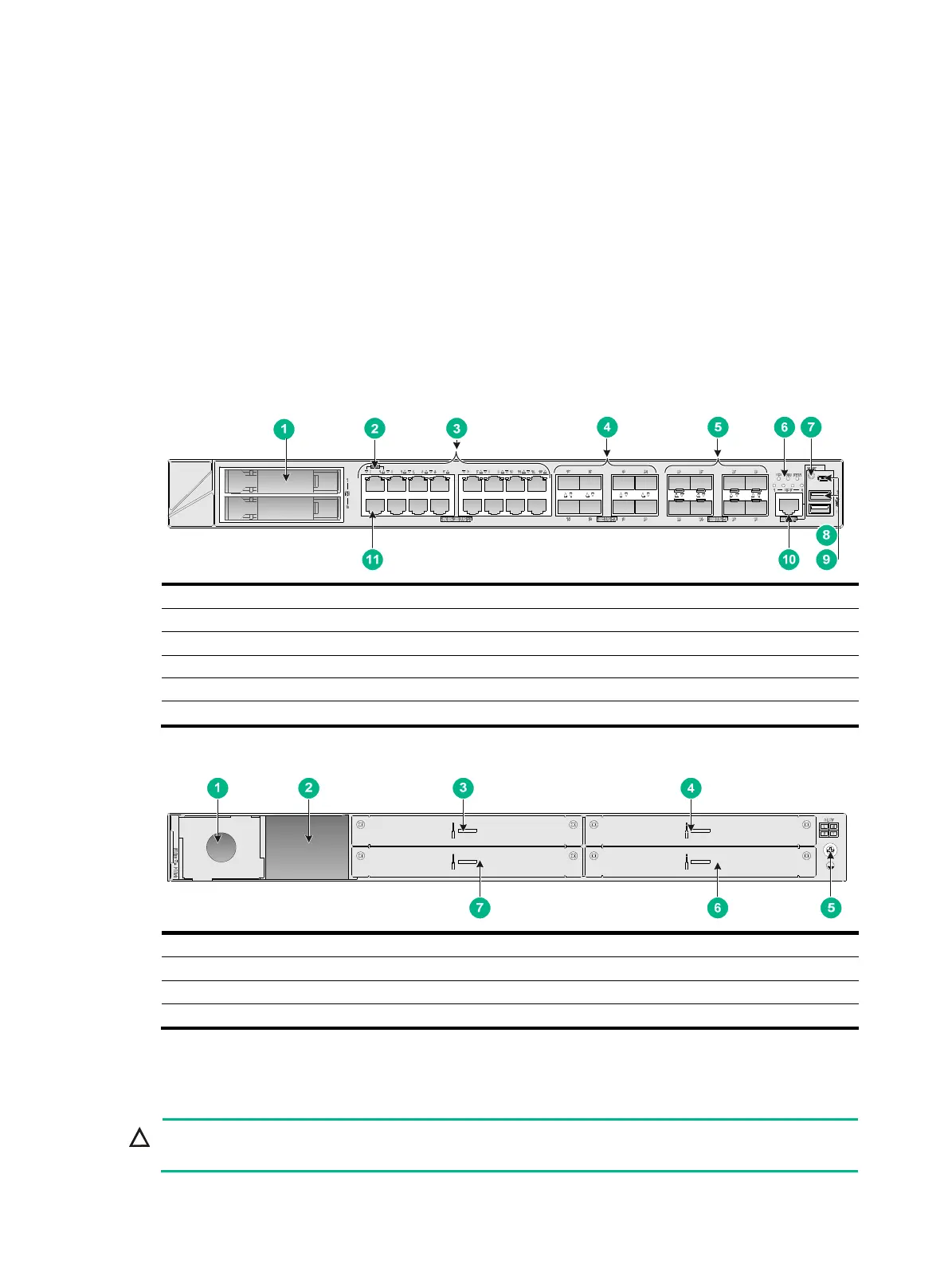

Figure 45 Front panel
(1) Hard disk slots (2) Management Ethernet port (MGMT)
(3) 10/100/1000BASE-T copper ports (4) 10GBASE-R fiber ports
(5) 1000BASE-X fiber ports (6) LEDs
(7) Reset button (8) Micro USB console port
(9) USB port (10) Console port
(11) Management Ethernet port (MGMT)
Figure 46 Rear panel
(1) Power module slot 1 (2) Power module slot 2
(3) Interface module slot 1 (4) Interface module slot 4
(5) Grounding screw (6) Interface module slot 3
(7) Interface module slot 1
Interface modules
CAUTION:
The interface modules are not hot swappable.
