H3C SecPath F1020 Installation Guide

15
Installing power modules
CAUTION:
• Make sure the power module is powered off and the grounding cable is correctly connected
before installation.
• Do not install both AC and DC power modules on the same firewall.
• Only the F1070, F1080, and F1090 firewalls support removable power modules.
Installing a power module for the F1070/F1080
1. Face the rear panel of the firewall.
2. Remove the filler panel (if any) from the target power module slot.

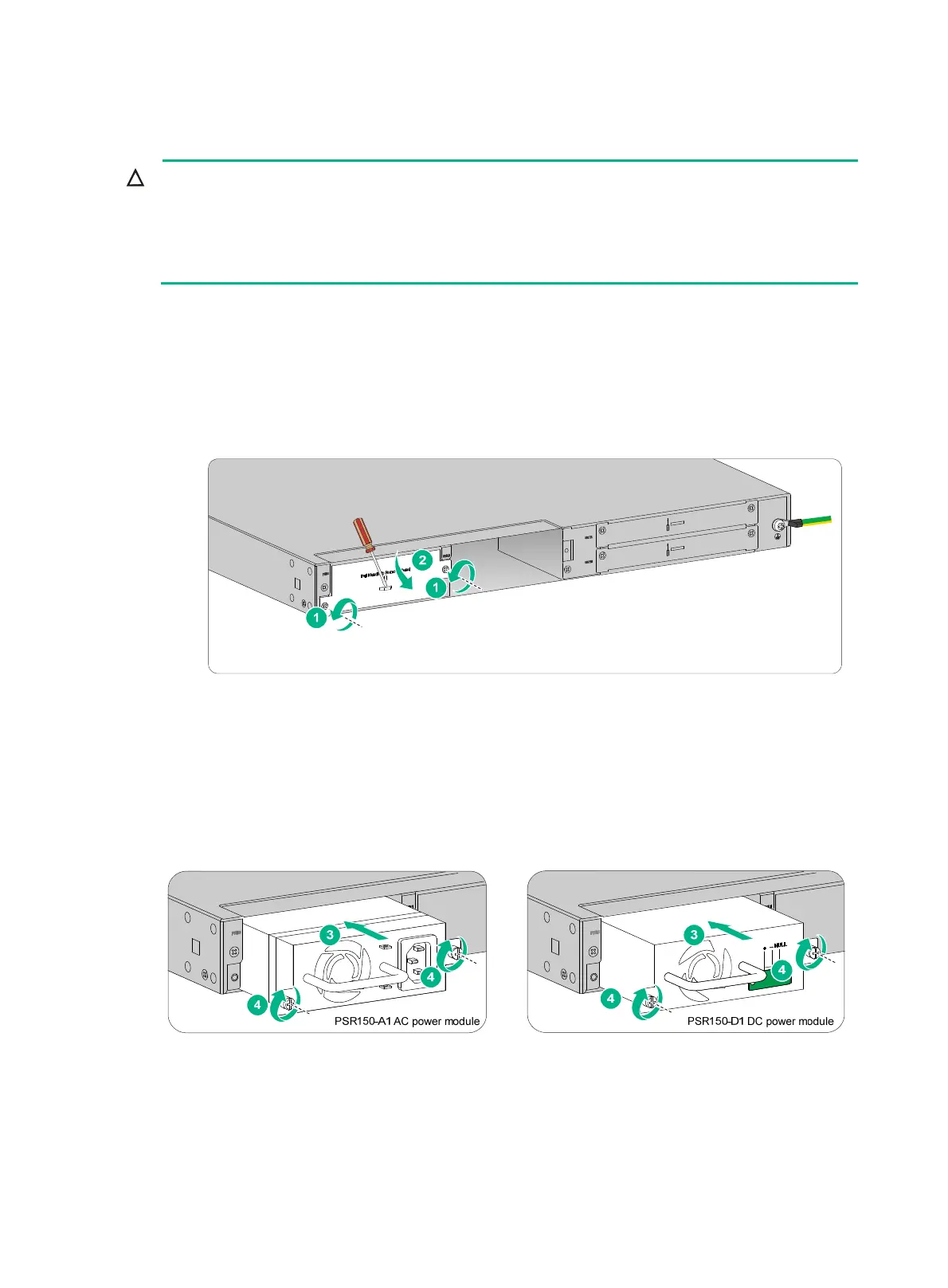

Figure 13 Removing the filler panel from the F1070/F1080
The firewall comes with the PWR1 slot empty and the PWR0 slot installed with a filler panel.
3. Orient the power module with its handle at the left. Holding the handle of the module with one
hand and supporting the module bottom with the other, slide the power module slowly into the
slot along the guide rails.
4. Use a Phillips screwdriver to fasten the captive screws on the power module to secure the
power module in place.
Figure 14 Installing the power module for the F1070/F1080
Installing a power module for the F1090
1. Face the rear panel of the firewall.
2. Remove the filler panel (if any) from the target power module slot.
