20
No transceiver module is provided with the firewall. As a best practice, use H3C transceiver
modules.

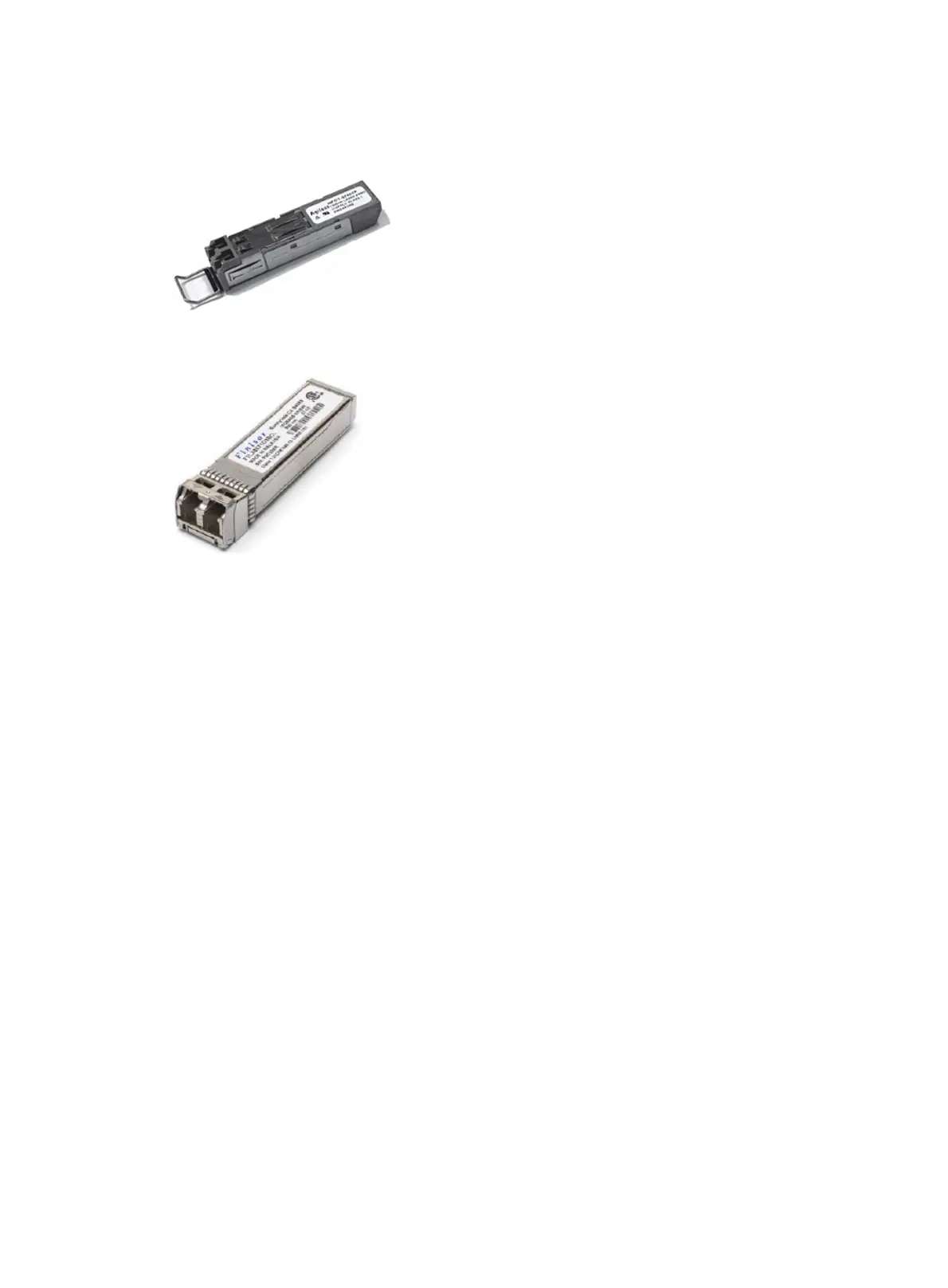

Figure 21 GE SFP transceiver module
Figure 22 10GE SFP+ transceiver module
To connect the firewall to the network through an optical fiber:
1. Remove the dust plug from the fiber port.
2. Remove the dust cap from the transceiver module and insert it into the fiber port.
3. Remove the dust cap of the optical fiber connector, and use dust free paper and absolute
alcohol clean the end face of the fiber connector.
4. Identify the Rx and Tx ports on the transceiver module. Plug one end of the optical fiber into the
transceiver module in the firewall, and plug the other end into the transceiver module in the peer
device.
Make sure the Rx port and the Tx port are connected to the Tx port and the Rx port on the peer
device, respectively.
