Connecting the power cord
CAUTION:
Make sure the grounding cable of the firewall is correctly connected and the power source is
powered off before connecting the power cord.
Connecting an AC power cord
1. Connect one end of the AC power cord to the AC-input power receptacle on the power module.
2. Use a removable cable tie to secure the AC power cord to the power module handle.
3. Connect the other end of the power cord to the AC power source.

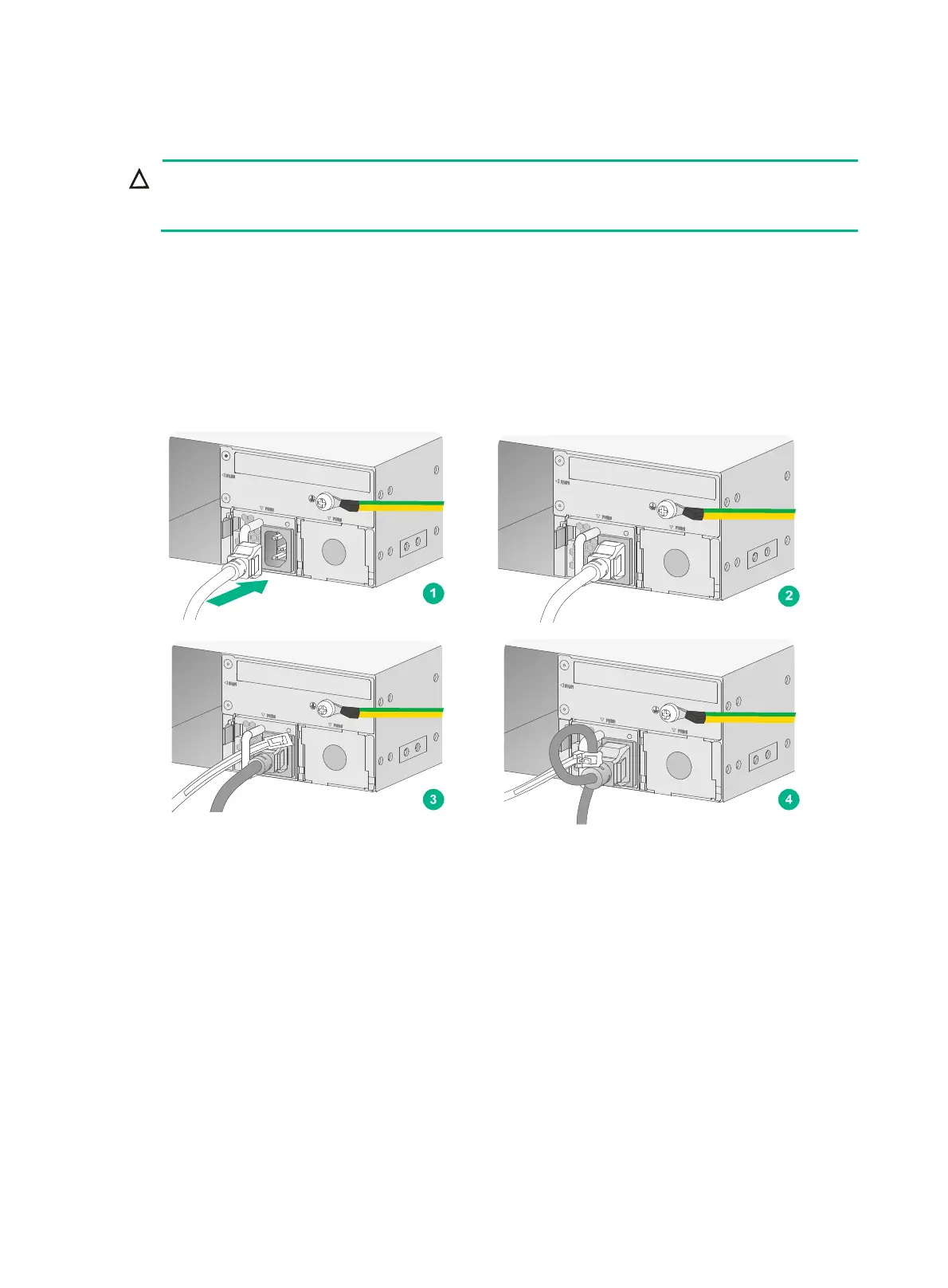

Figure 19 Connecting an AC power cord
Connecting a DC power cord
1. Correctly orient the DC power cord plug with the power receptacle on the power module, and
insert the plug into the receptacle.
2. Use a removable cable tie to secure the DC power cord to the power module handle.
3. Connect the other end of the power cord to the DC power source.
