Appendix A Chassis and FRU views and
technical specifications
Chassis and FRU views
F5030/F5060/F5080/F5000-M/F5030-6GW/F5000-A front
view
On the front panel, the F5030/F5060/F5080/F5000-M/F5030-6GW/F5000-A firewall provides eight
interface module slots and two hard disk slots.

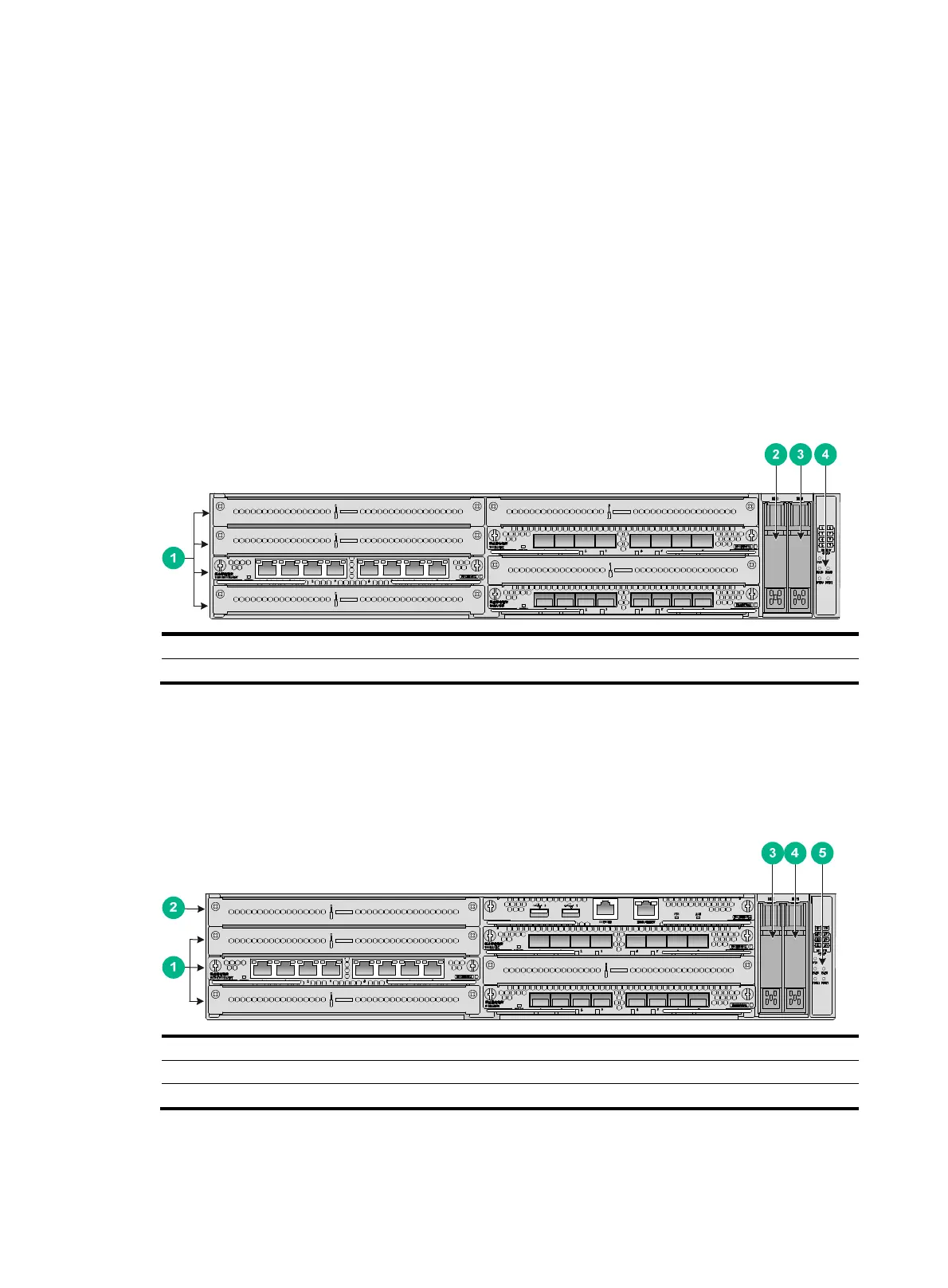

Figure 27 Front view of the F5030/F5060/F5080/F5000-M/F5030-6GW/F5000-A
(1) Interface module slots (slots 1 through 8) (2) Hard disk slot HD0
(3) Hard disk slot HD1 (4) LEDs
F5030-D/F5060-D/F5080-D front view
On the front panel, the F5030-D/F5060-D/F5080-D firewall provides two MPU slots, six interface
module slots, and two hard disk slots.
Figure 28 Front view of the F5030-D/F5060-D/F5080-D
(1) Interface module slots (slots 2/1 through 2/6) (2) MPU slots (slots 0/0 and 1/0)
(3) Hard disk slot HD0 (4) Hard disk slot HD1
(5) LEDs

H3C SecPath F5030 Specifications

General

Brand	H3C
Model	SecPath F5030
Category	Firewall
Language	English
