Rear view
On the rear panel, the firewall provides four 10/100/1000Base-T auto-sensing copper Ethernet ports,
four 1000Base-X fiber Ethernet ports, two USB ports, one console port, two fan tray slots, and two
power module slots. The copper ports and fiber ports form four combo interfaces.
The rear view is similar for all the firewalls except that the rear panels of the F5000-D, F5030, F5060,
and F5080 do not have management port marks. The following figure uses the F5080 as an example.
The management port varies by device model:
• F5000-D—On the MPU.
• F5030/F5060/F5080/F5030-6GW/F5000-M/F5000-A—GE1/0/0.
• F5030-D/F5060-D/F5080-D—MGE1/0/0/0.

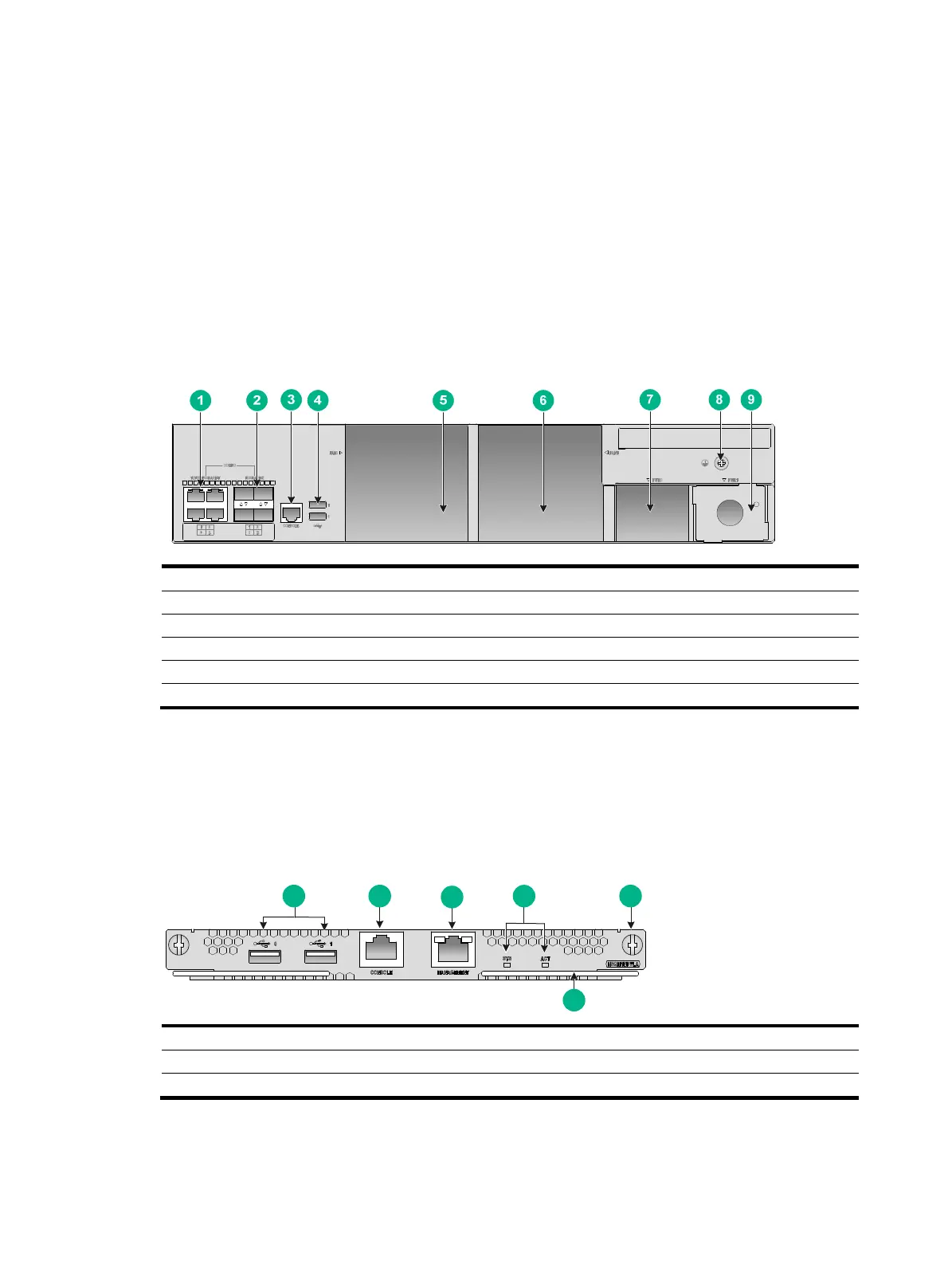

Figure 29 Rear view (F5080)
(1) 10/100/1000Base-T copper Ethernet port (combo interface)
(2) 1000Base-X fiber Ethernet port (combo interface)
(3) Console port (4) USB port
(5) Fan tray slot (FAN0) (6) Fan tray slot (FAN1)
(7) Power module slot (PWR0) (8) Grounding screw
(9) Power module slot (PWR1)
MPU views
The NSQM1MPULA MPU provides two USB ports, one console port, and one 100/1000Base-TX
management Ethernet port. Only slots 0/0 and 1/0 on the F5030-D/F5060-D/F5080-D firewall
support the NSQM1MPULA MPU.
Figure 30 Front view
(1) USB port (2) Console port (CONSOLE)
(3) Management Ethernet port (MANAGEMENT) (4) LEDs
(5) Captive screw (6) Ejector lever
