H3C SecPath F5030

40
Interface module views
Table 15 displays the slots available for interface module installation.
Table 15 Interface module and device slot compatibility
Interface
module
F5030/F5060/F5080/F5
030-6GW
F5000-M/F5000-A
F5030-D/F5060-D/F50
80-D
NSQM1TG8A
NSQM1QG2A
NSQM1G4XS4
Slots 1 through 3 Slots 1 through 3 Slots 2/1 through 2/3
NSQM1GT8A
NSQM1GP8A
NSQM1GT4PFCA
Slots 4 through 8 Slots 4 through 8 Slots 2/4 through 2/6
NSQM1TG8A
The NSQM1TG8A interface module provides eight 10GBASE-R fiber Ethernet ports.

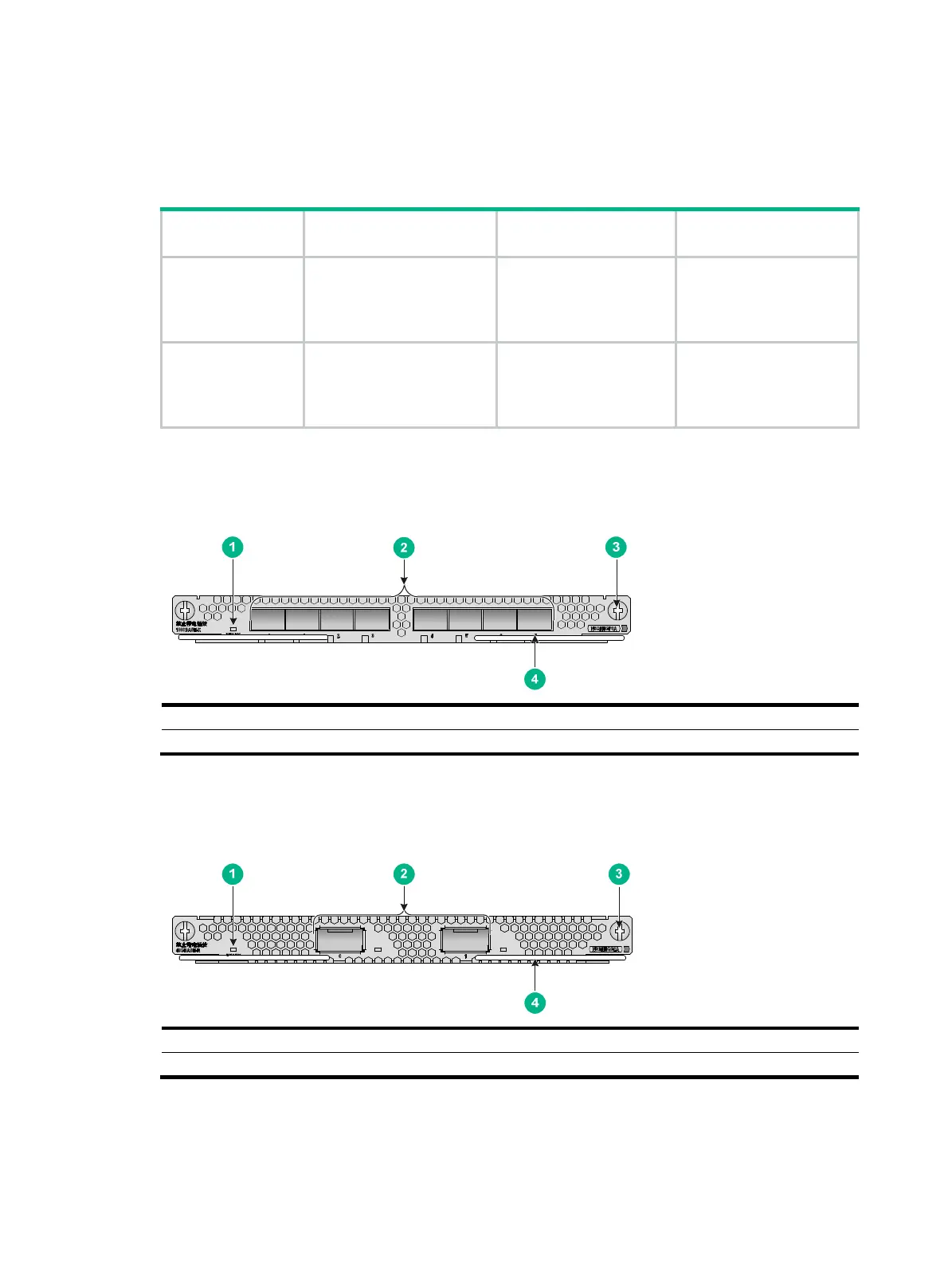

Figure 31 NSQM1TG8A front view
(1) LED (2) 10GBASE-R fiber Ethernet ports
(3) Captive screw (4) Ejector lever
NSQM1QG2A
The NSQM1QG2A interface module provides two 40GBASE-R fiber Ethernet ports.
Figure 32 NSQM1QG2A front view
(1) LED (2) 40GBASE-R fiber Ethernet ports
(3) Captive screw (4) Ejector lever
NSQM1G4XS4
The NSQM1G4XS4 interface module provides four 10GBase-R fiber Ethernet ports (10G-SR/LR)
and four 1000Base-X fiber Ethernet ports.
