7
7. Select PXE boot options in the EFI Boot Devices area.
The boot options for UEFI and Legacy boot modes are different.
For UEFI boot mode, select the option corresponding to the port connecting to the PXE server.
As shown in Figure 3, port
1 connects to the PXE server, so you must select the option
corresponding to port 1.

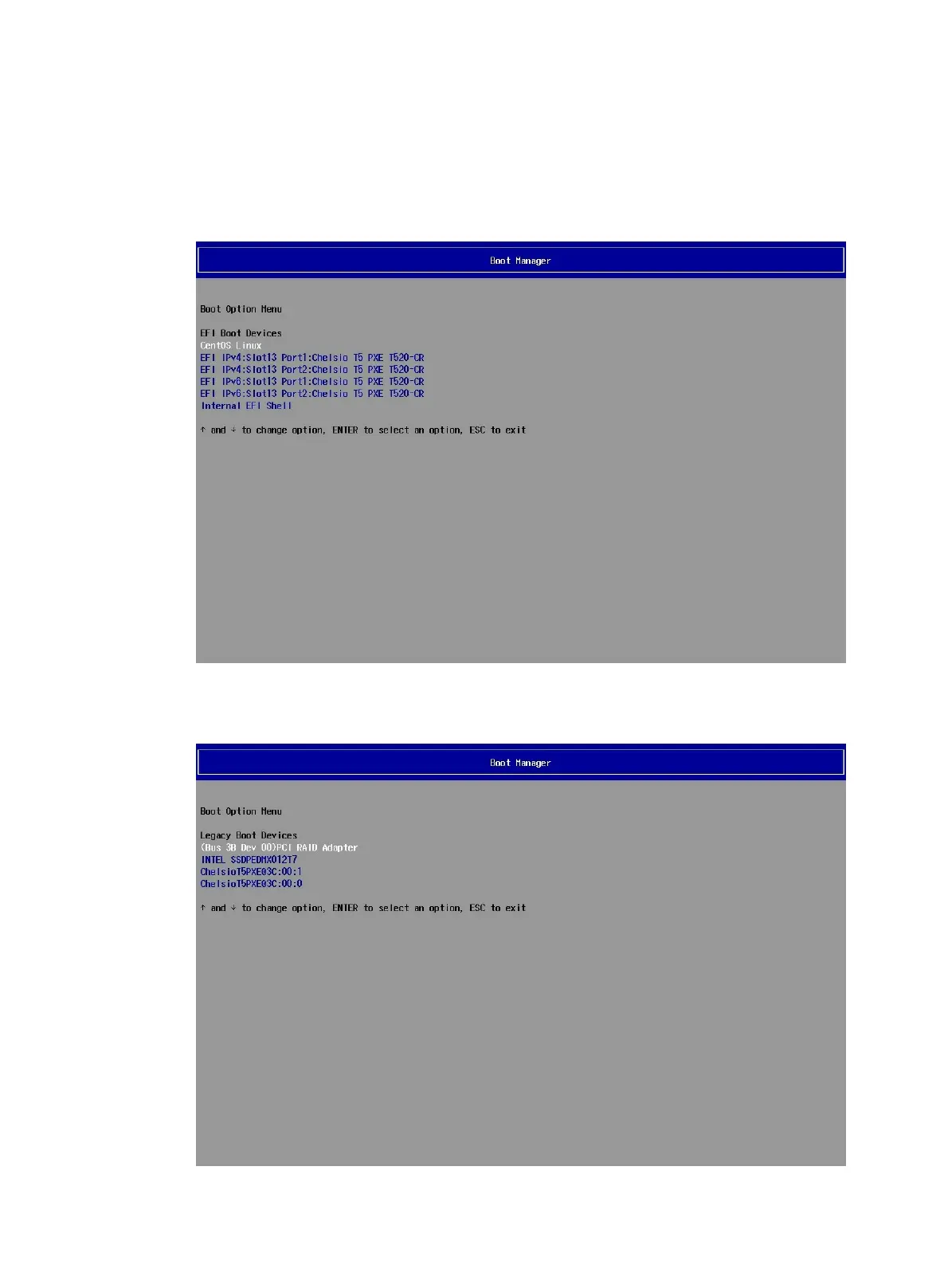

Figure 6 PXE boot options in UEFI boot mode
In Legacy boot mode, all ports on the network adapter share the same PXE boot option.
Figure 7 PXE boot options in Legacy boot mode
