SECTION 4, continued

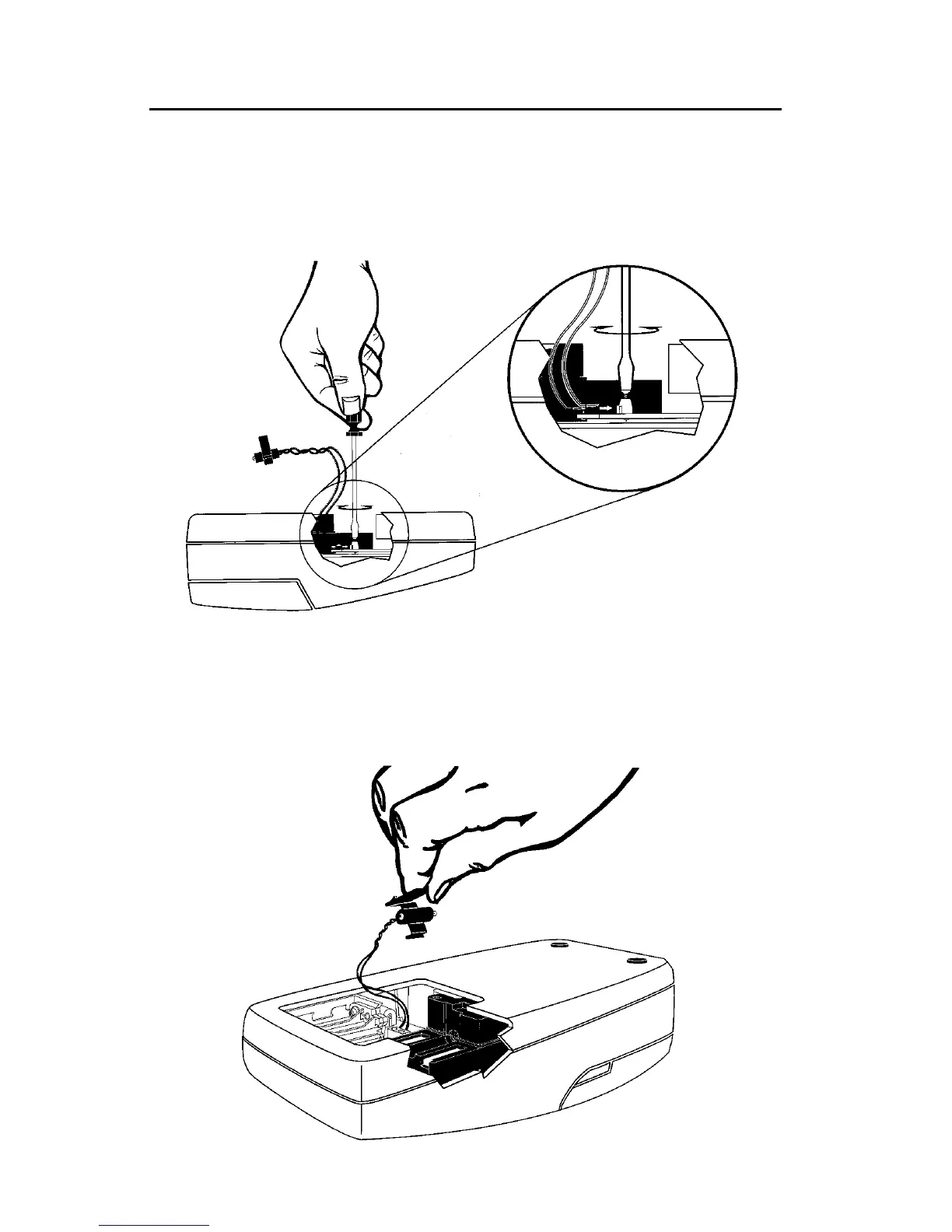

5. Gently bend the wires of the new lamp assembly into an “L” shape

so they fit easily into the housing. Insert the leads into the terminal

screws and tighten with clockwise turns. Gently tug on the wires to

make sure they are connected to the terminal block.

6. Hold the new lamp assembly by the tab with the lamp facing the

tope (keyboard) of the instrument. Slide the small catch on the other

side of the assembly into the black plastic slot (towards the nearest

edge of the instrument).
